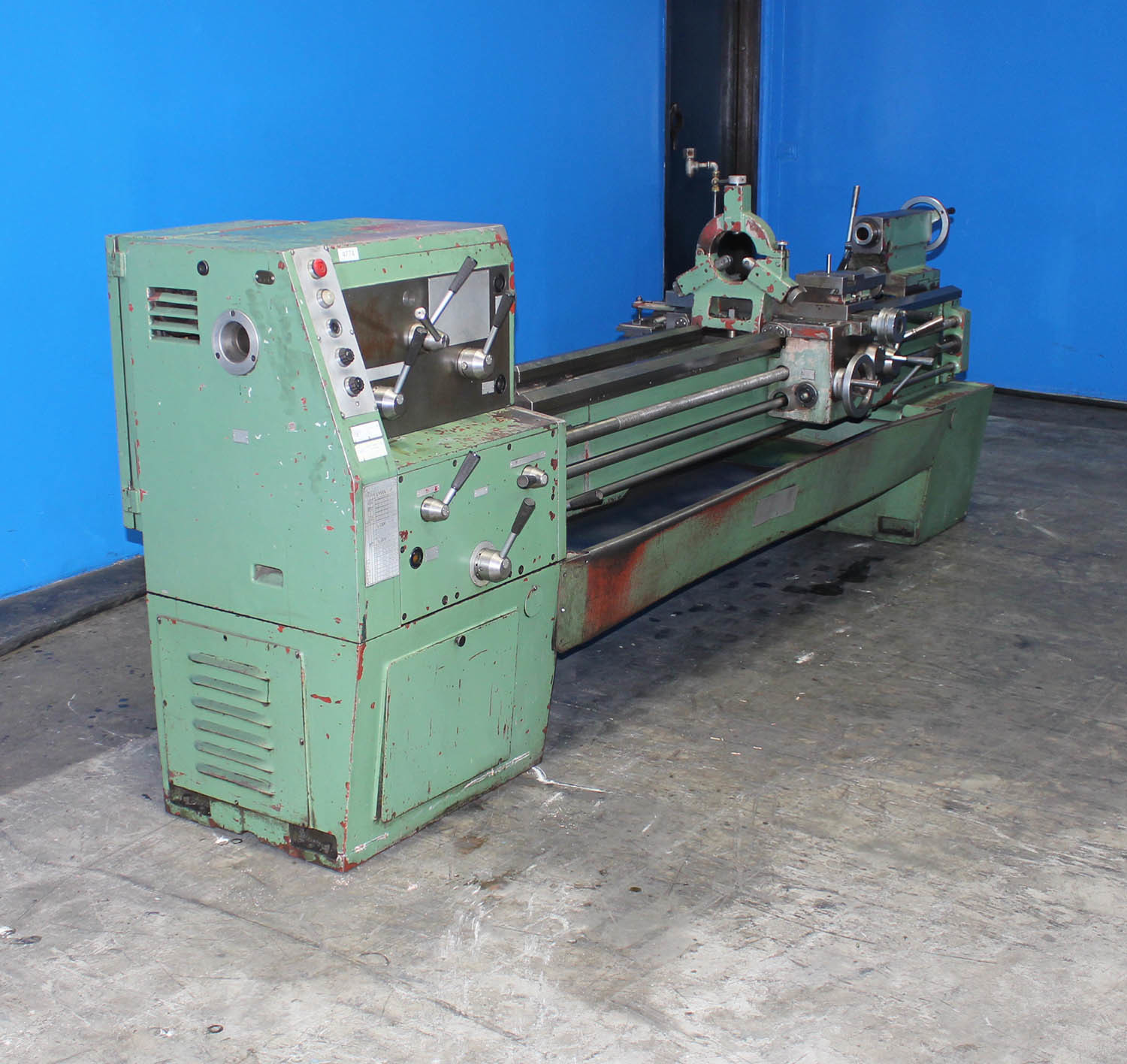

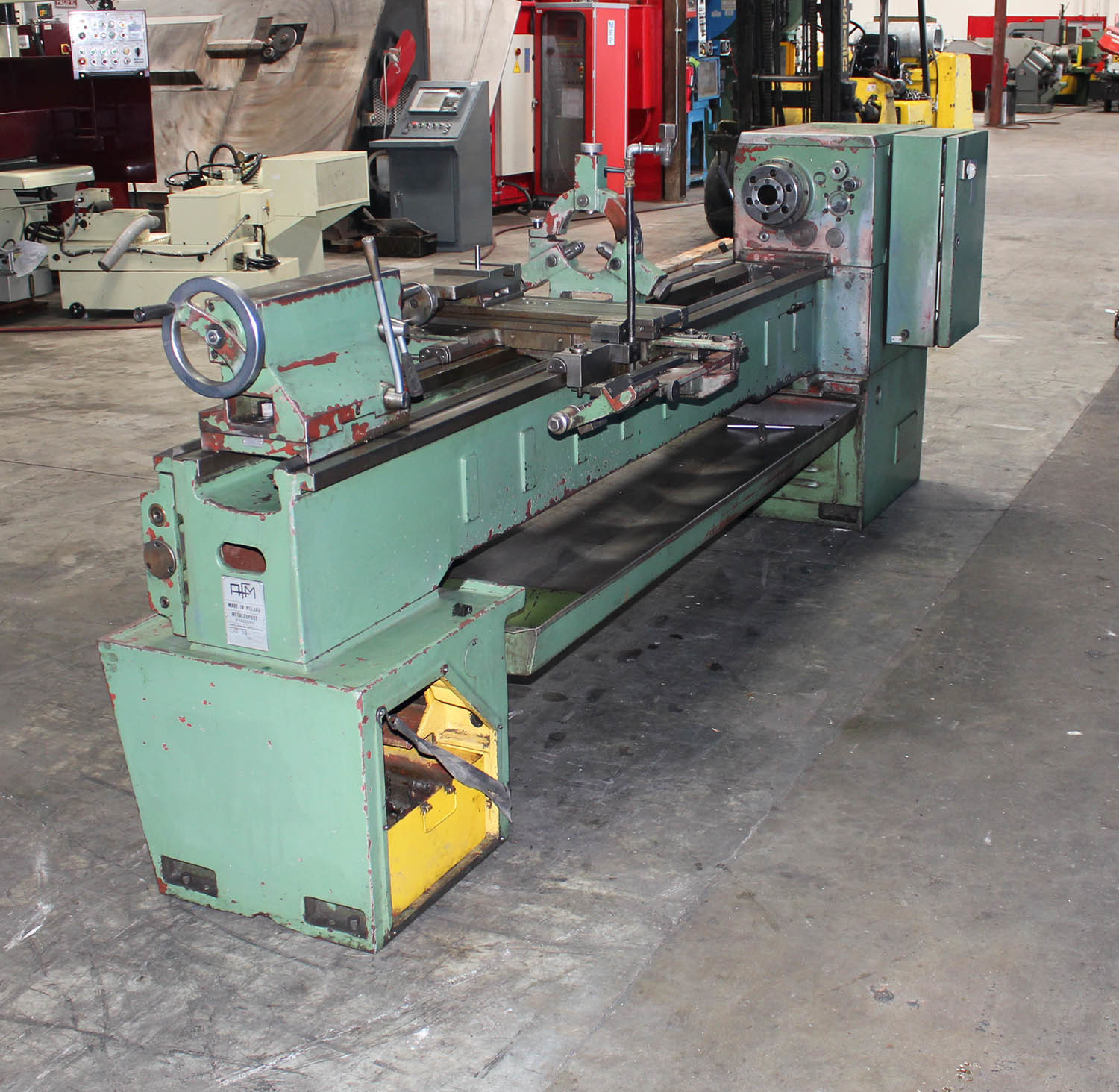

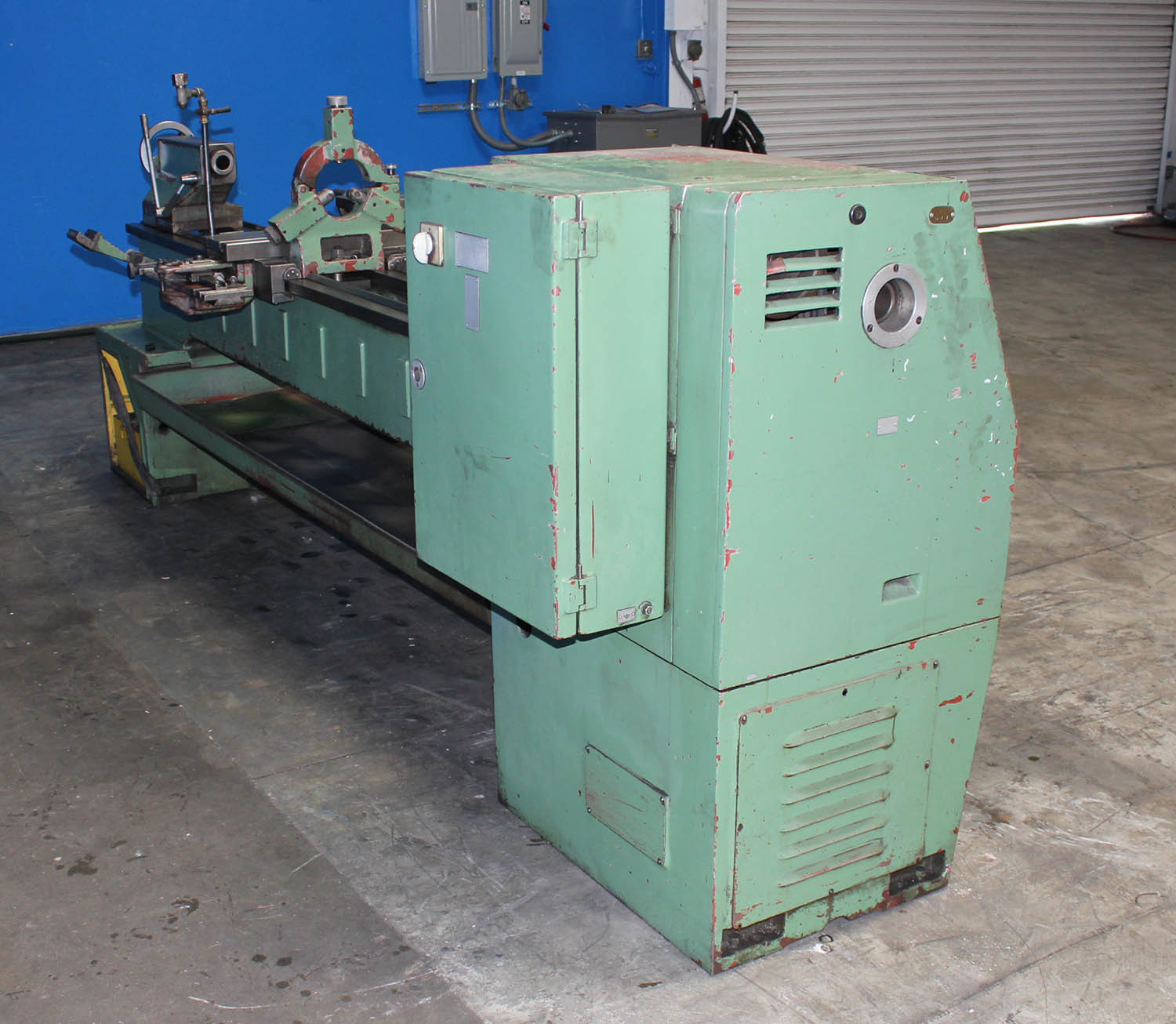

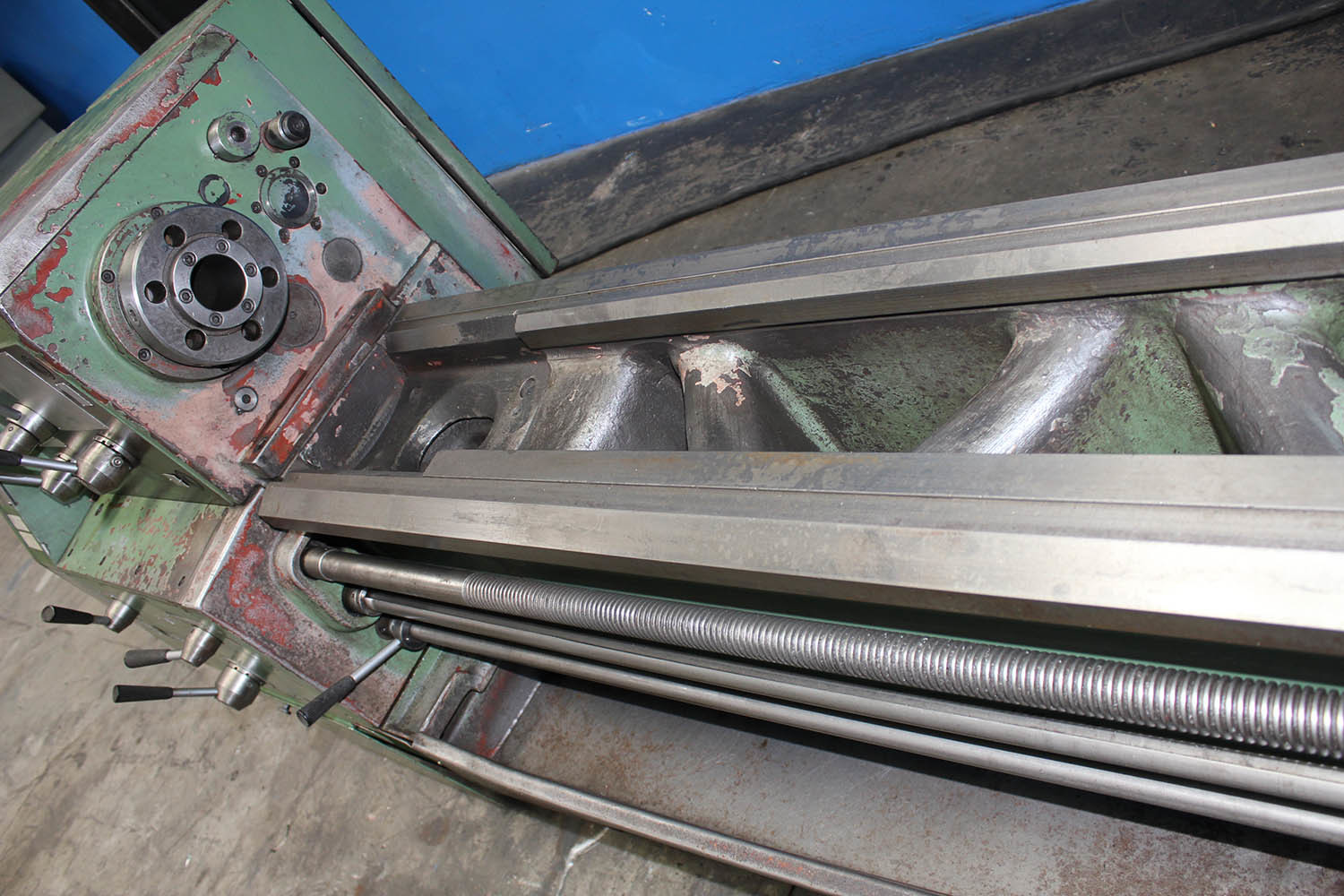

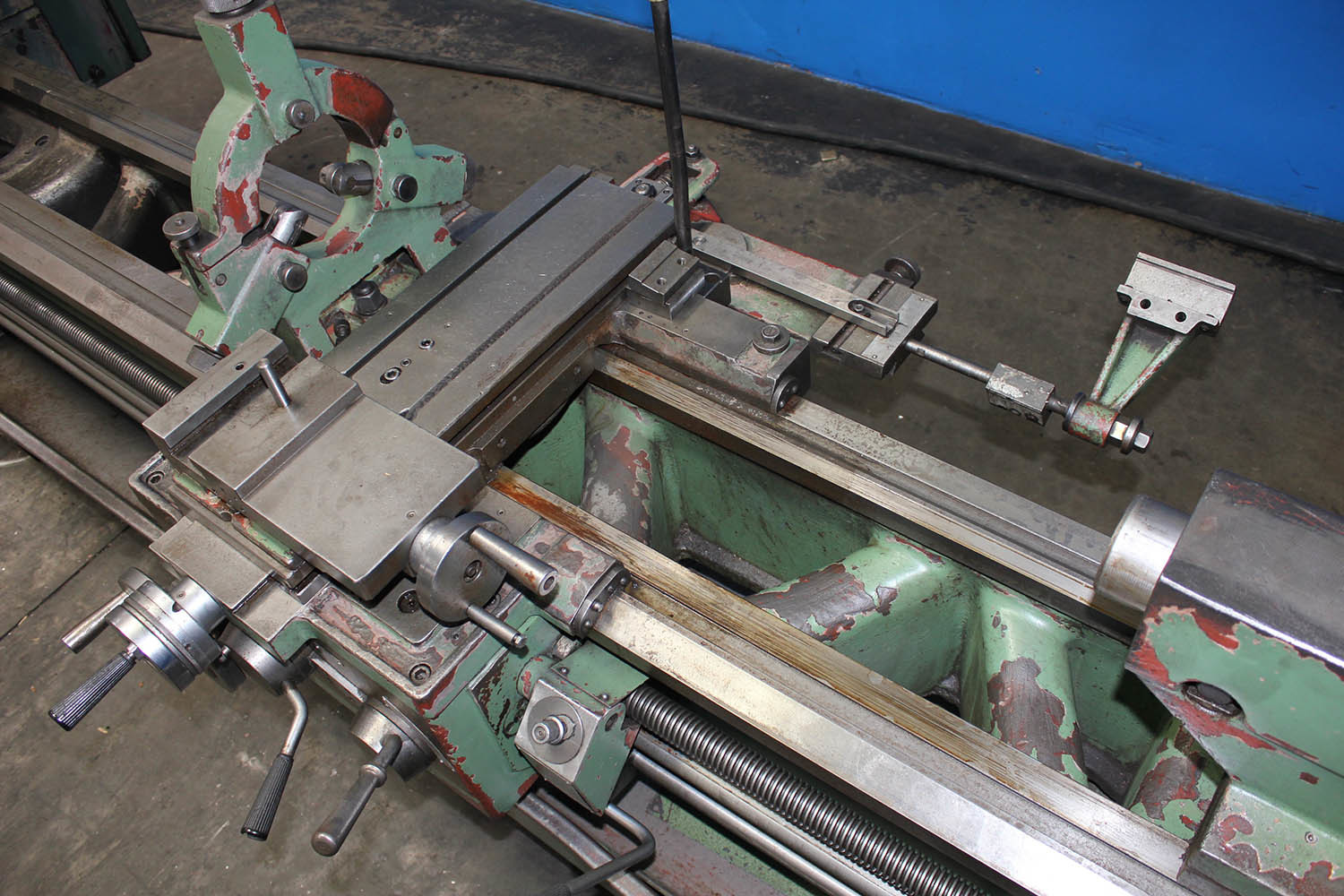

AFM ANDYCHOW - ENGINE LATHE | 18"/25" X 80"

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


TUG- 40
4079
used
(6)
$0.00

Description

'

Basic Information

Model: TUG- 40
Manufacturer: AFM Andrychow
Serial #: 4079
Location: Huntington Park, CA
Year Built: 1981

Specifications

Swing Over Bed: 18"
Swing In Gap: 25"
Swing Over Cross Slide: 10"
Distance Between Centers: 80"
Spindle Speeds (14): 18- 1,600 RPM
Spindle Nose: D1- 6
Hole Thru Spindle: 2"
Threads:
Inch (42): 3/4- 56 TPI
Metric (34): 0.5- 28 MM
Feeds: 0.008"- 0.126"
Cross Slide Travel: 10 1/2"
Tailstock Quill Taper: #5 MT
Tailstock Quill Travel: 7"
Dimensions (L x W x H): 140" x 41" x 49"
Weight: 6,000 Lbs.

Equipped with

  • 3 Jaw Chuck
  • Taper Attachment
  • Steady Rest
  • Tool Post
  • Coolant System
  • Horsepower: 7 1/2
'
