ACIERA SCHAUBLIN AGIE 23TNC CNC DRILLING MACHINE X AXIS 23" SWISS MADE HEIDENHAI

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


23TNC
Drills Manual and CNC
DRILLS, SINGLE SPINDLE, NC and CNC
used
1550 (KG)
0
$9,950.00

Description

EZ Systems Machine Reference Number: ez17345

Machine Location: Valencia, CA  91355

Subcategory:  Drilling & Tapping Machines
X axis travel:  23"
Manufacturer:  Aciera
Model:  23TNC
Condition:  Used

4000 RPM

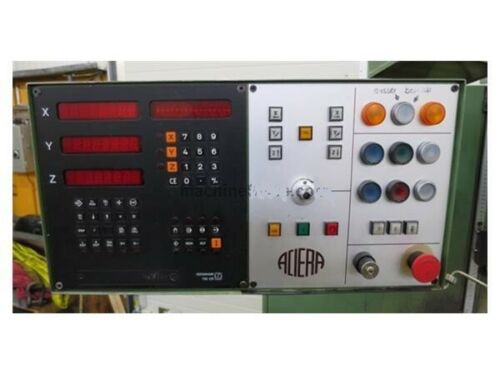

HEIDENHAIM TNC 125 Control
SWISS MADE

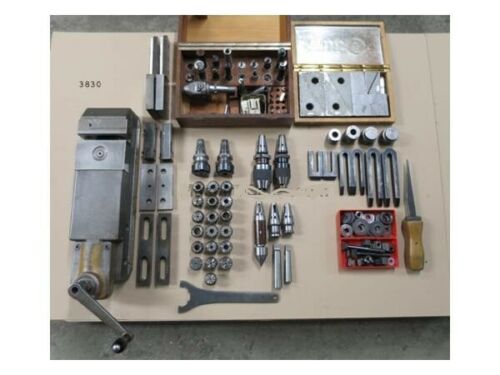

LOTS OF TOOLING, UNDER POWER & RUNNING

Drill capacity in steel  23 mm
Threat cutting in steel  18 M (Metric)
Spindle speeds: stepless
    from  45 rpm
    up to  4000 rpm
Spindle stroke  120 mm
Table length  590 mm
Table width  320 mm
Longitudinal travel  500 mm
Transversal travel  300 mm
Feeds  0.02-0.6 mm/min
Min. distance from table to spindle  110 mm
Max. distance from table to spindle  570 mm
Voltage 50 Hz 3x  380 Volt
Power  5.0 kW
Machines weight about  1550 kg
Overall dimensions machine:
    Length  1700 mm
    Width  1400 mm
    Height  2100 mm
