FEATURES:

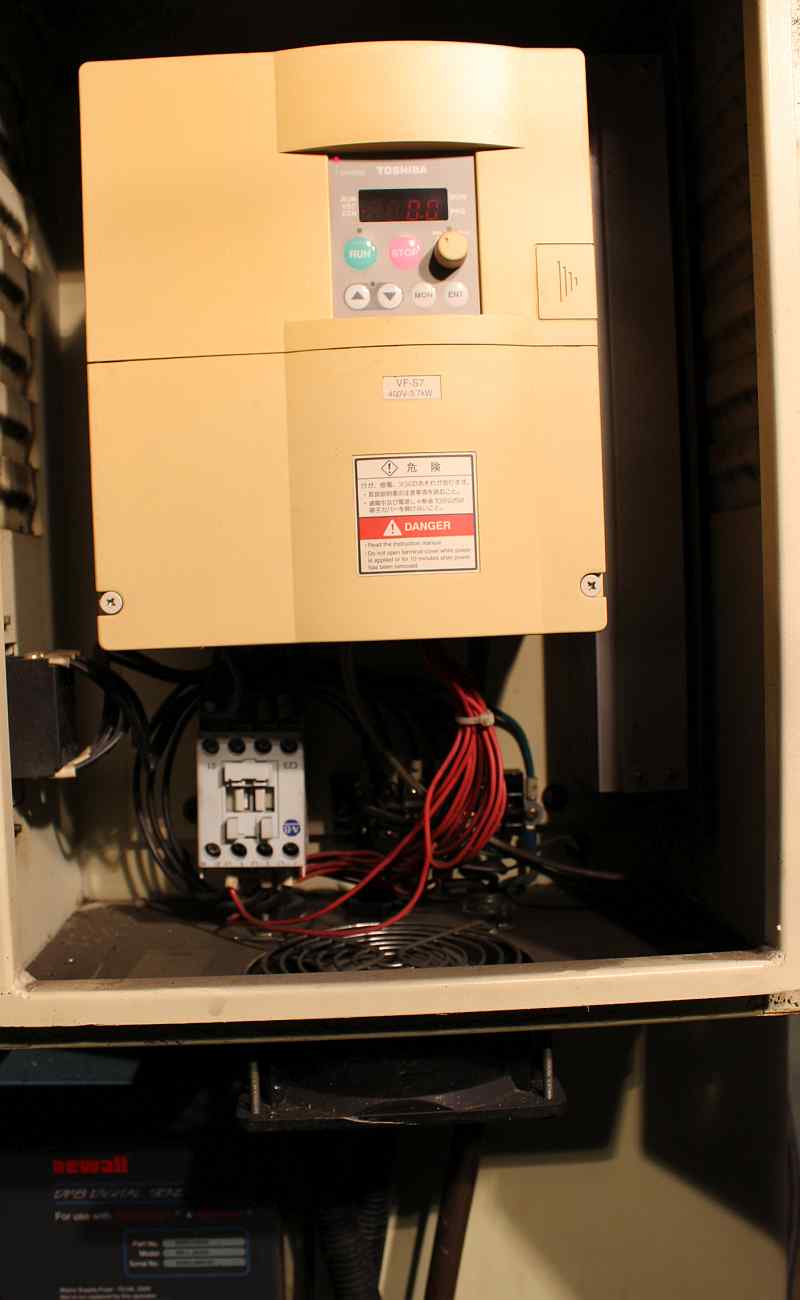

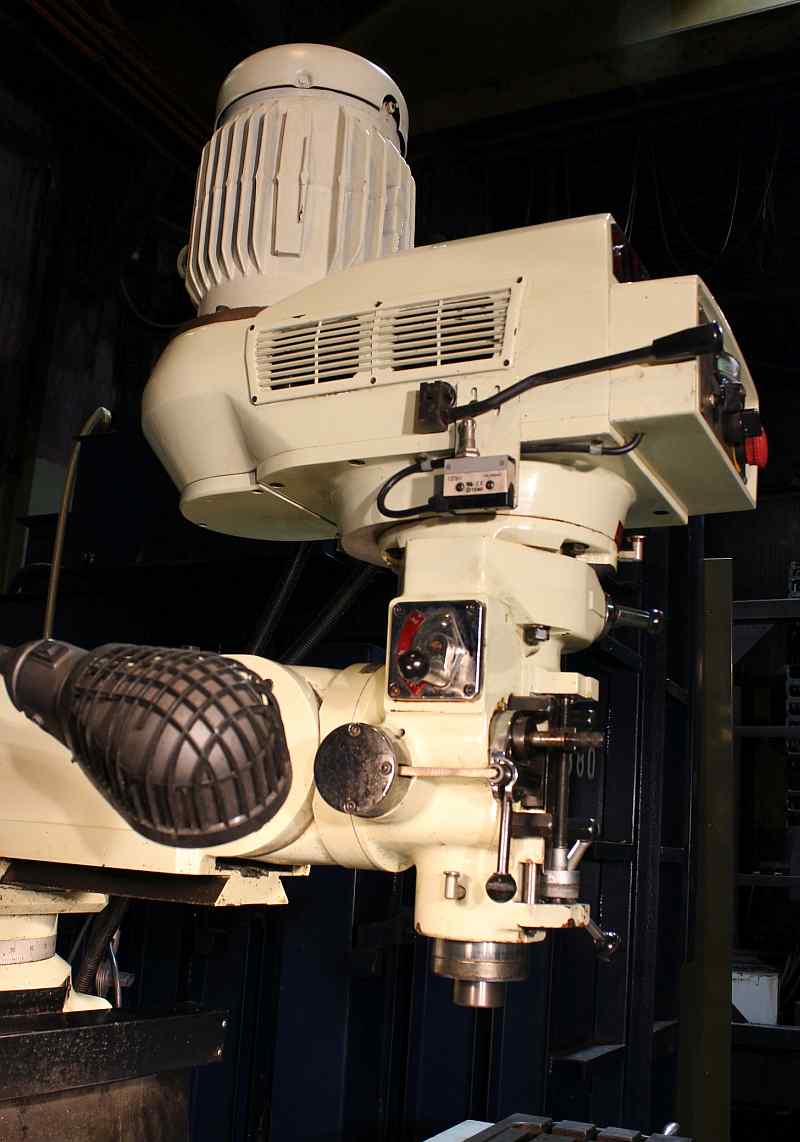

* 3 HP BALDOR SPINDLE MOTOR WITH TOSHIBA FREQUENCY INVERTER DRIVE
* SPINDLE IS DESIGNED NOT TO TURN ON AUTOMATICALLY WHEN THE POWER IS
RESTORED AFTER POWER FAILURE

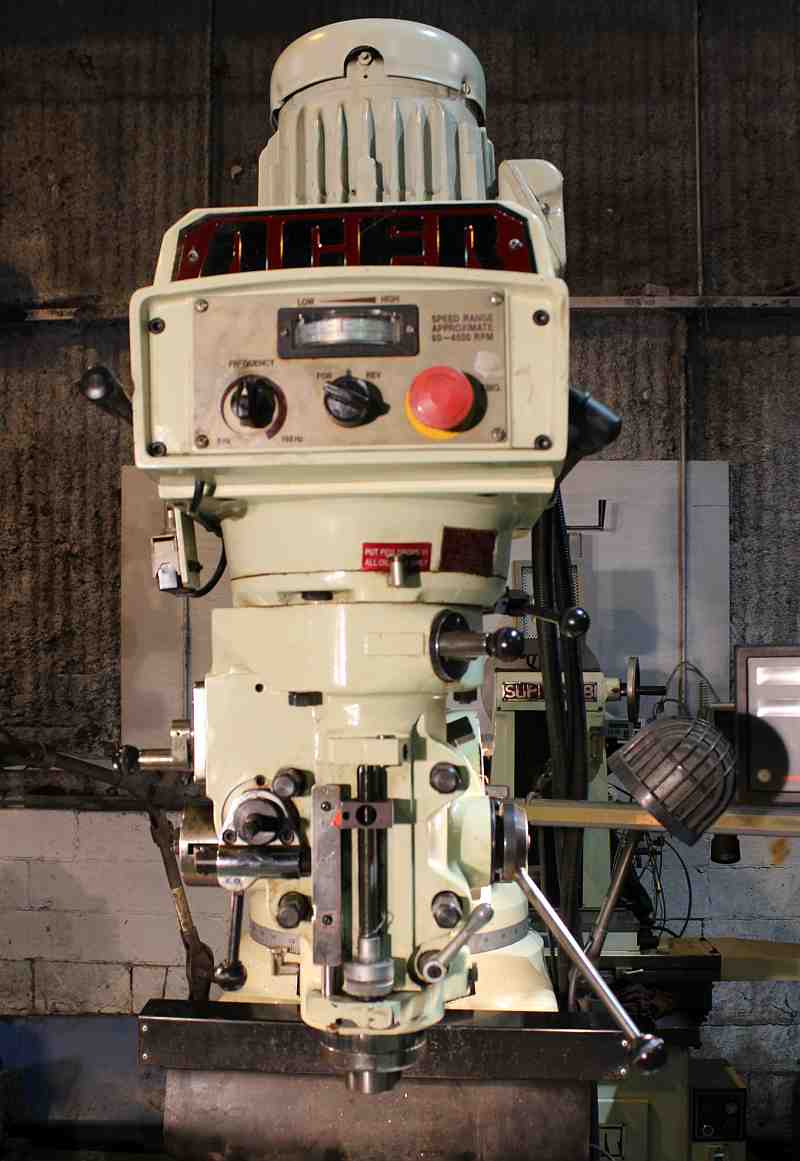

* PRECISION GRINDING HEAD HOUSING; ELECTRIC BRAKE
* PRECISION SPINDLE WITH ABEC-7 BEARINGS

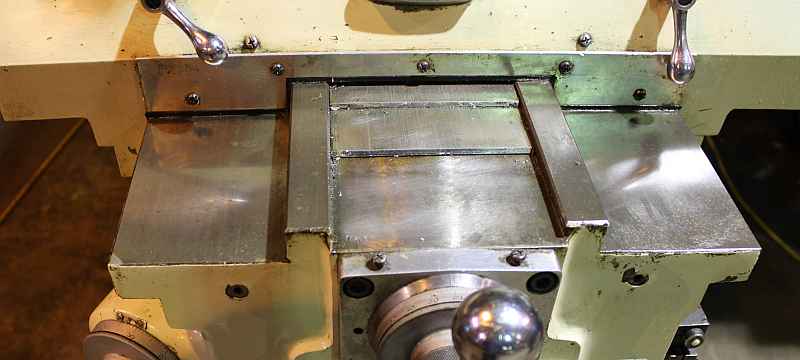

* PRECISION X, Y, AXES & KNEE BY HARDENED & GROUND SQUARE
WAYS TO HRC 52 DEGREES

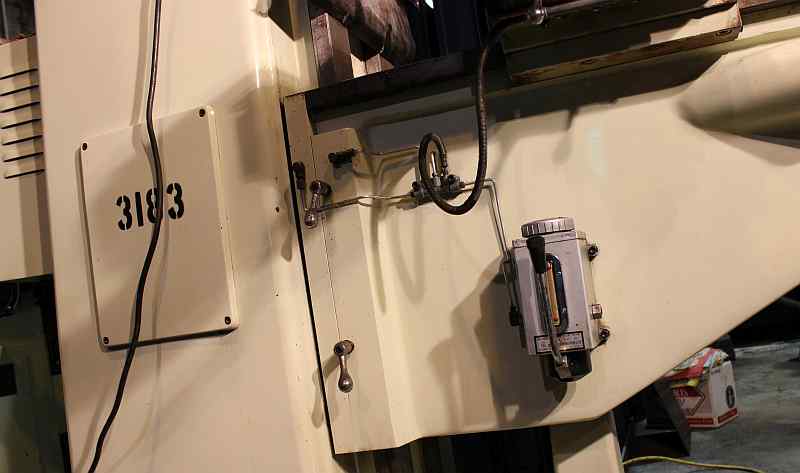

* RIGID MEEHANITE GA-50 CASTING; ONE SHOT LUBRICATOR
SPECIFICATIONS:

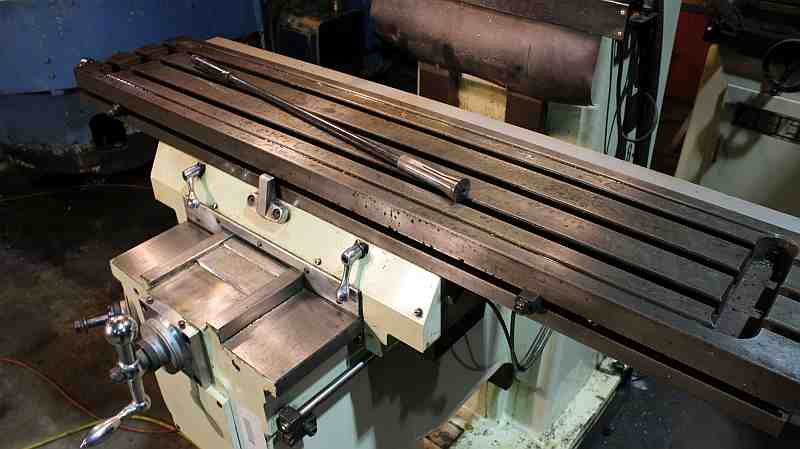

TABLE SIZE ........................ 10" X 50"
LONGITUDINAL TRAVERSE ............. 32 1/2"
CROSS TRAVERSE .................... 17"
RAM TRAVERSE ...................... 20"
VERTICAL TRAVERSE ................. 19"
QUILL TRAVEL ...................... 5"
QUILL DIAMETER CHROMED ............ 3 3/8"
QUILL POWER RATE .................. 0.0015", 0.003", 0.006"/ REV
SPINDLE TAPER ..................... R-8
SPINDLE MOTOR ..................... 3 HP
SPINDLE SPEED ..................... VARIABLE (0-500-4500 RPM)
NET WEIGHT ........................ 3,300 LBS
2 (TWO) ADJUSTABLE WORK LAMPS
1 (ONE) DRAW BAR

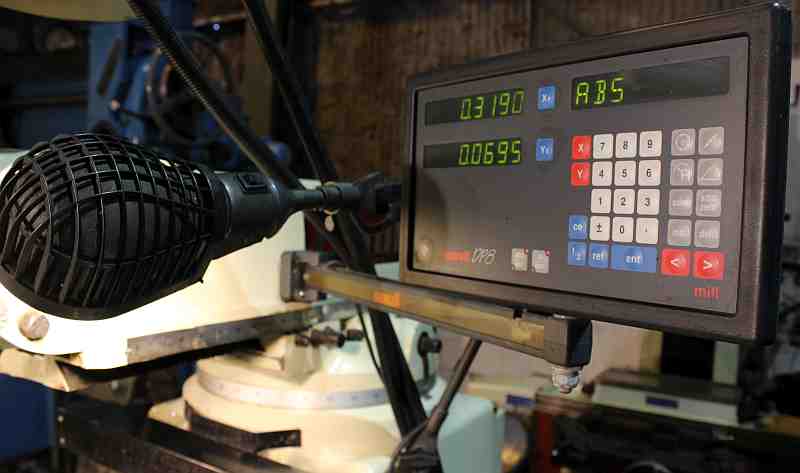

NEWALL DP-8 2-AXIS DIGITAL READOUT SYSTEM
To view more information on the ACER "E-MILL", MODEL 3VKH, NEWALL DP-8 DRO, 3 H.P, BALDOR DRIVE/TOSHIBA INVERTOR OUR STOCK NUMBER: 10936, including reviews, brand information, photos, videos, and more,
