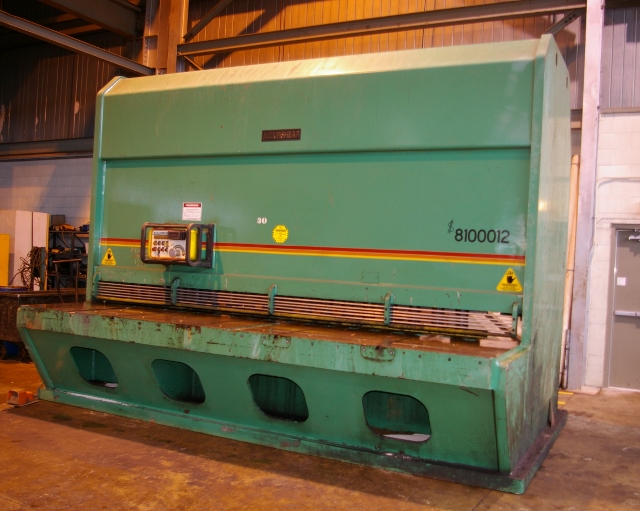

12 X 1" ACCURSHEAR MODEL 8100012 HYDRAULIC POWER SQUARING SHEAR
CAPACITY ---------------------------------- 12 X 1" MILD STEEL
BLADE SIZE --- ( 4 EDGED HCHC ) ----------- 1-1/2" X 5-1/2" X 149" LONG
CYCLES PER MINUTE, FULL STROKE ------------ 9
CYCLES PER MINUTE, SHORT STROKE ----------- 23
MAIN DRIVE MOTOR -------------------------- 75 HP A.C.
EQUIPPED WITH ---
FLUSH FLOOR DESIGN 2 SPEED HYDRAULIC SYSTEM
48" FRONT OPERATED POWER BACK GAUGE ADJUSTABLE STROKE
FOOT CONTROL PEDAL AUTO CYCLING
92" SQUARING ARM SHADOW LIGHT
POWER BLADE CLEARANCE ADJUSTMENT (4) 48" MATERIAL SUPPORT ARMS
EXTRA SET OF BLADES BALL TRANSFERS IN TABLE
TO VIEW VIDEO, PLEASE CLICK LINK www.racomachinery.com/vlink/17866.mp4
STOCK# 17866
