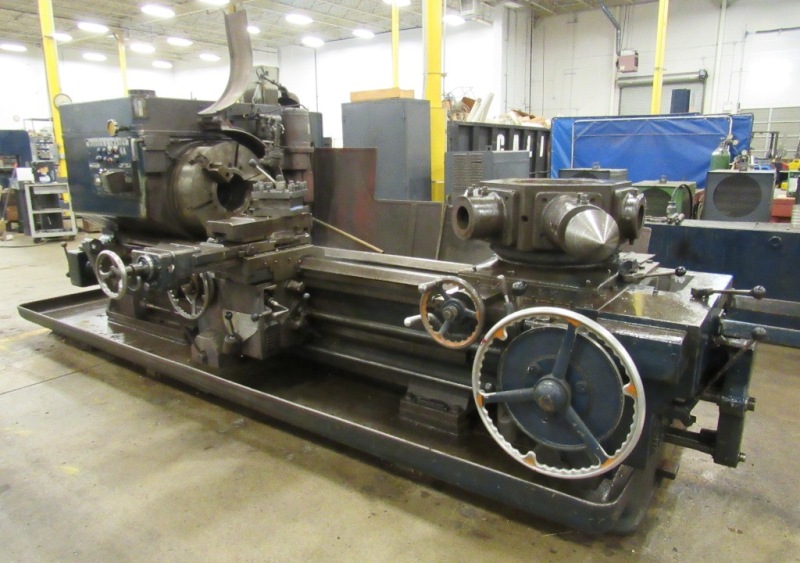

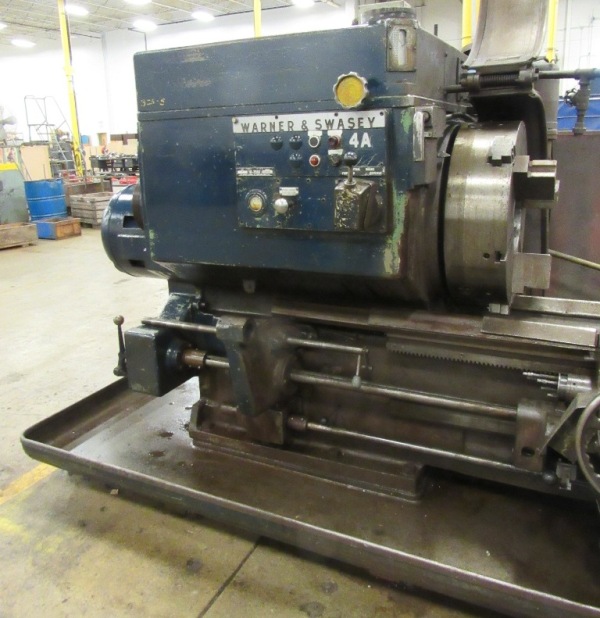

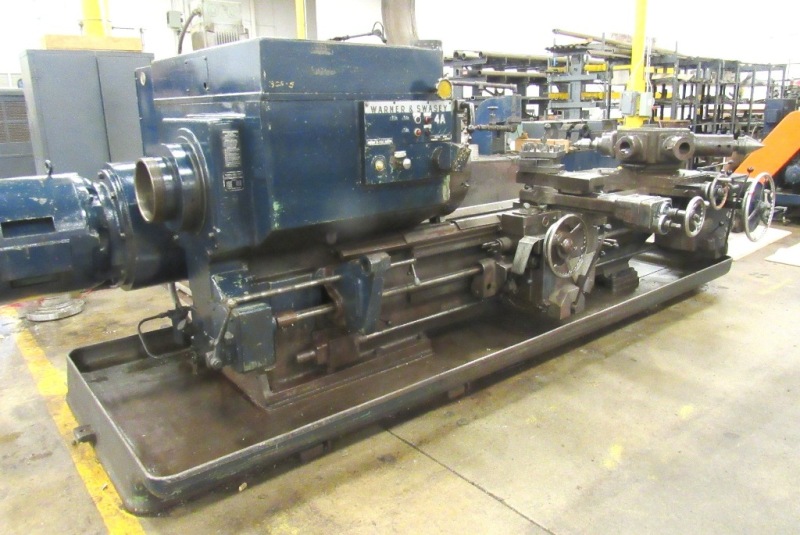

WARNER & SWASEY 4A SQUARE HEAD TURRET LATHE

PRICE: Loaded on Truck, Our Warehouse, York, PA …… $49,500.00

HMC Stock No. 17168

Machine Serial No. 1532316
Machine Model No. 4A, M-3550, Lot 7
New Date: 1956

Swing Over Bed: 28-1/4"
Swing Over Carriage: 22"
Distance Between Centers: 59-7/8"
Spindle Hole: 9-1/4"
Spindle Nose: A2-15
(16) Spindle Speeds: 20 to 526 RPM via
Hydraulic Preselect
(32) Total Feeds:
(16) Cross Feeds: .003" to .103"
(16) Longitudinal Feeds: .005" to .167"
Power Rapid Traverse:
Cross Slide: 6-3/4 FPM
Cross Slide Apron: 15-1/2 FPM
Saddle Apron: 36-1/4 FPM
Turret Travel: 68-3/8"
Spindle Nose to Turret Face: 80-3/16" Maximum
Compound Swivels: 45 Degrees Each Way

EQUIPPED WITH:

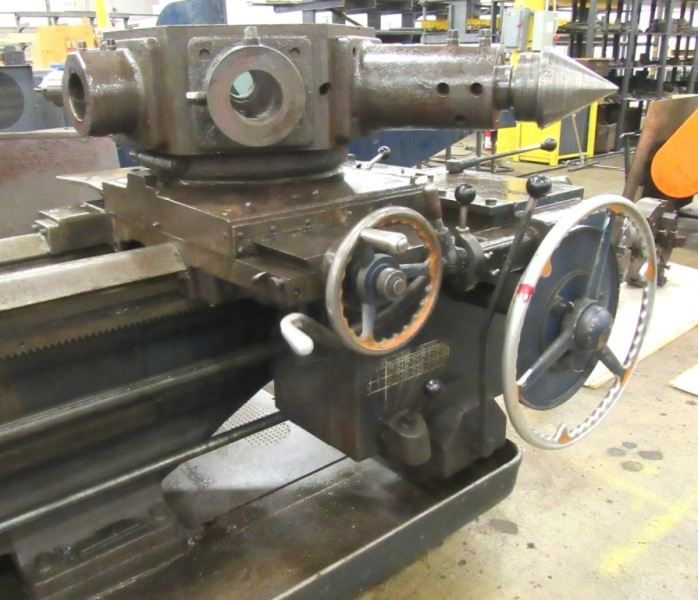

Cross Sliding Saddle Turret
Swing Up Chuck Guard
Lead On Threading with Half Nut on Carriage
Large Assortment of Thread Leads and Nuts
Large Assortment of Boring Bars, Bushings, Spade Drill Holders and Other Items
Rear Splash Guards
Turret Tools: (3) Short Flanges, (2) Medium Flanges, (1) Long Flange Tool Holders
Hardened and Ground Bed Ways in Good Condition with Hard Way Covers

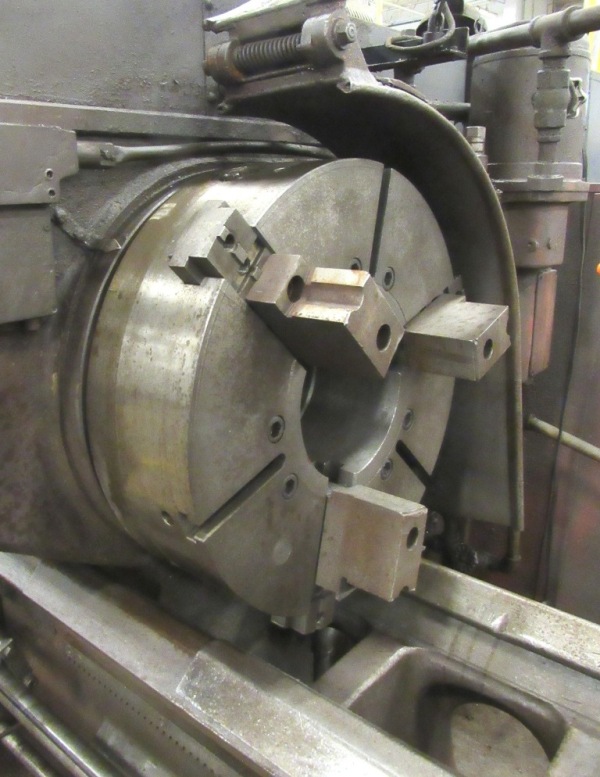

24" 3-Jaw Power Chuck
Lead on Threading to Carriage with Half Nut

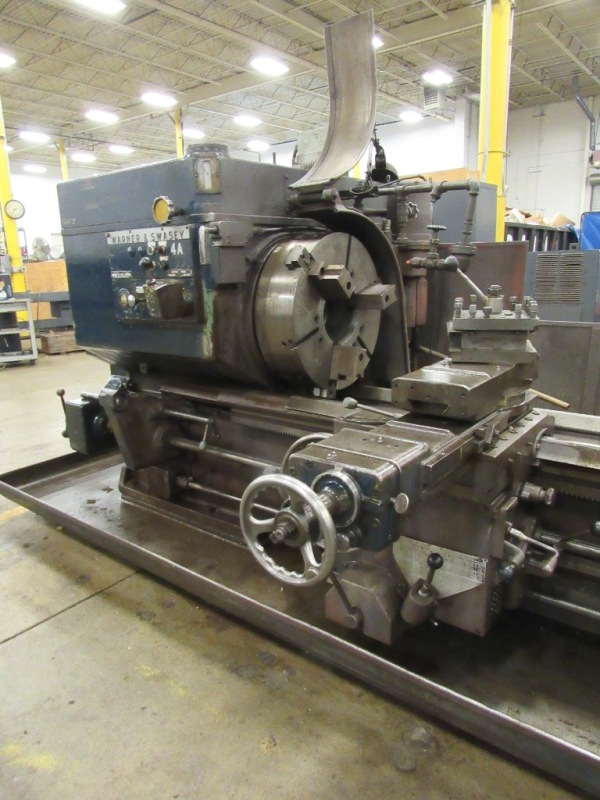

4-Sided Carriage Turret Tool Holder 8-3/4" x 8-3/4"
Cross Sliding Turret
Power Angle Compound Feed

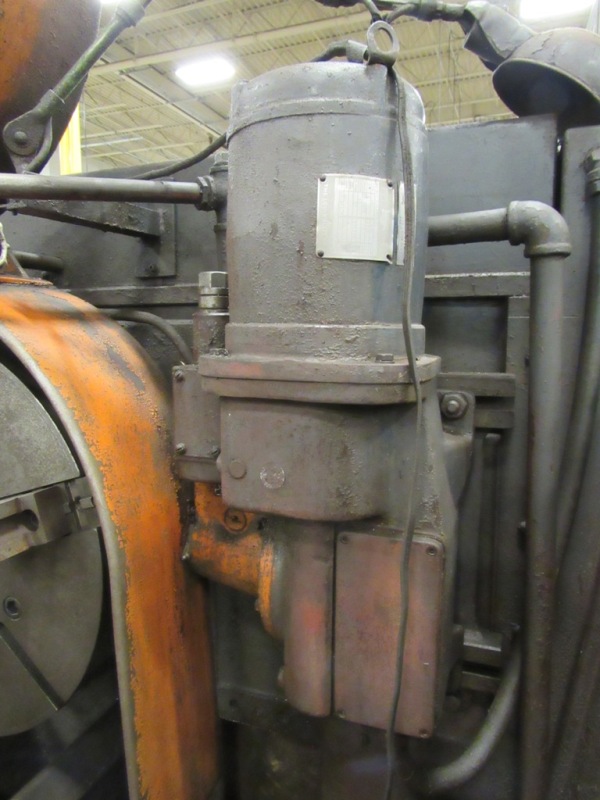

Power Chuck Wrench
4 Way Power Rapid Traverse to All Axis
Assorted Flanged Saddle Turret Tool Holders
Hardened and Ground Bed Ways in Very Good Condition
Coolant System

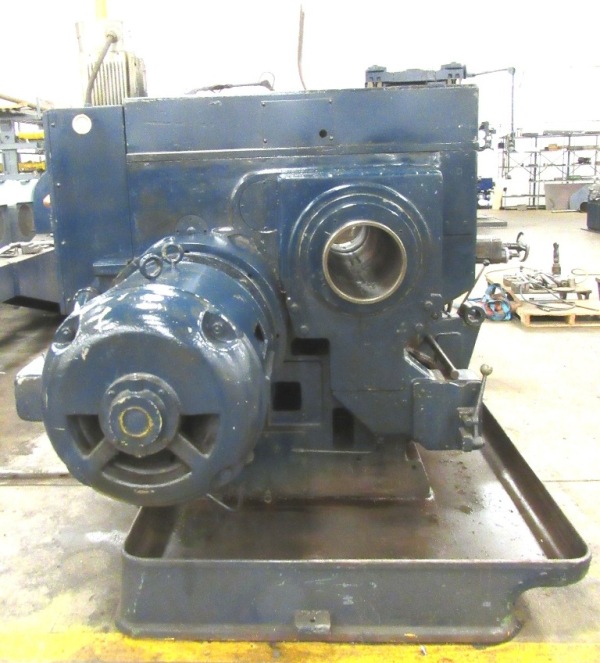

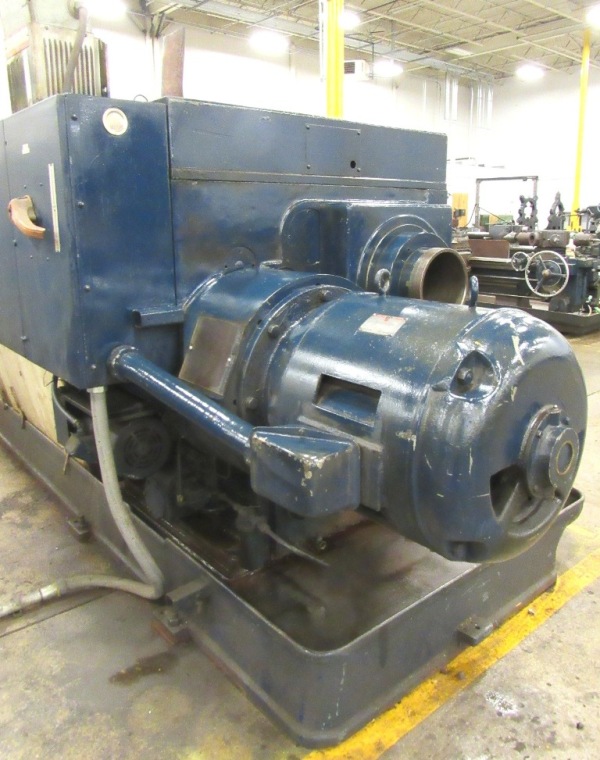

60 HP Main Motor, Single Speed Motor 1750 RPM, 150/75 Amps
Wired for 3 Phase, 60 Hz 220 / 440 Volts
Presently Wired For 220 Volt Operation

Overall Size: Machine 204" L-R x 84" F-B x 72" H x 23,000 Lbs.
Box of Tooling 22" x 62" x 18" High x ? Lbs.
