25" Standard Diameter of Table
35" maximum Swing
1-175 Work Spindle RPM
8"-A2 Work Spindle Nose
Vertical Slide:
21" Standard Vertical Slide Stroke
2-180 IPM Vertical Slide Traverse Rate
4.5" Grinding Spindle Mounting Diameter (Cartridge Style)
0-45 Deg Vertical Slide Angle Adjustments (Left or Right)
.0002 Minimal Feed Increment w/ positive stop screw
18" Nominal Hole Depth
20" Standard Clearance over Work Table
6-7/8 x 1" Maximum Wheel Size
10 HP Grinding Motor Horsepower
3-30 IPM Horizontal Traverse Rate
.0002 to .003 Horizontal feed Rate on Diameter (IPM)
Equipped:

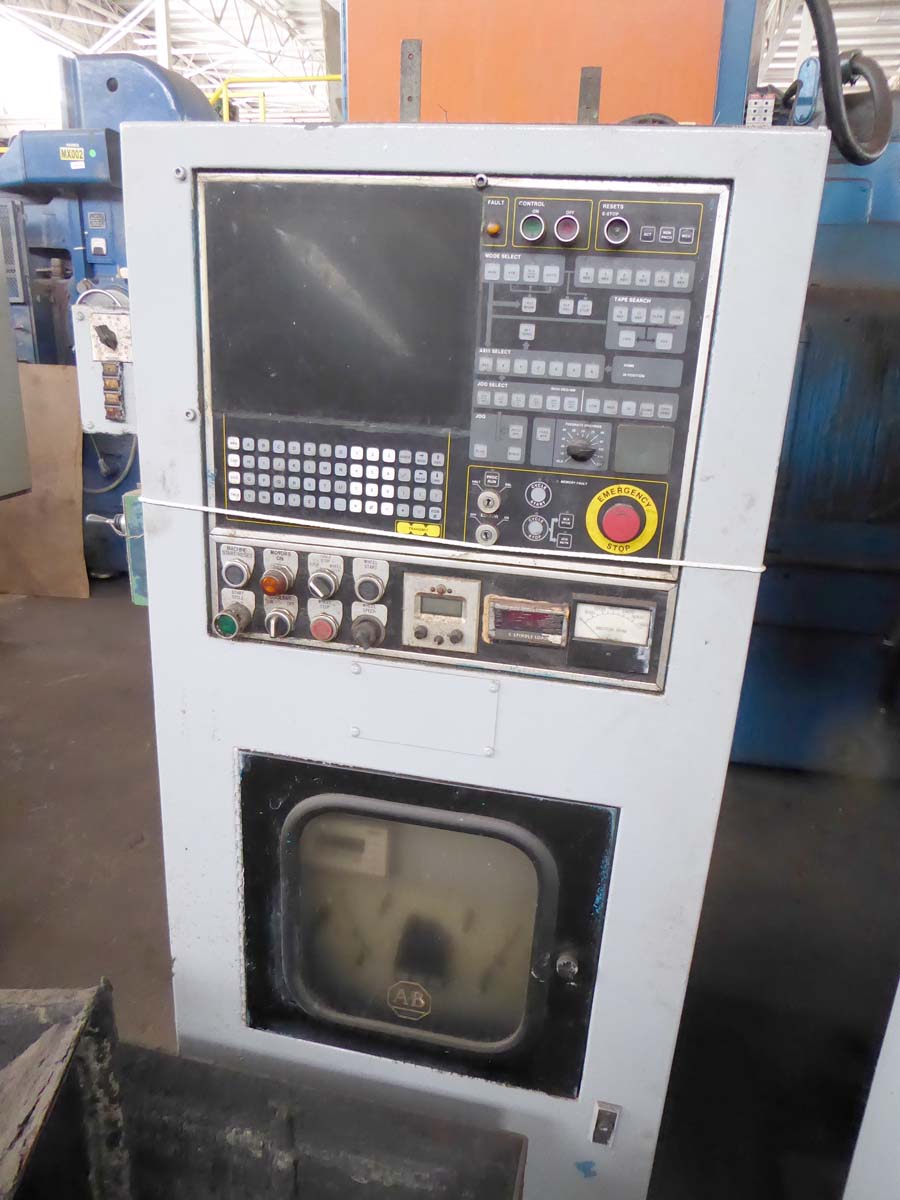

Rebuilt with Warranty including New Allen Bradley PLC Control and Drives
Complete scope of work available upon request
New Fanuc CNC Control can be quoted upon request
