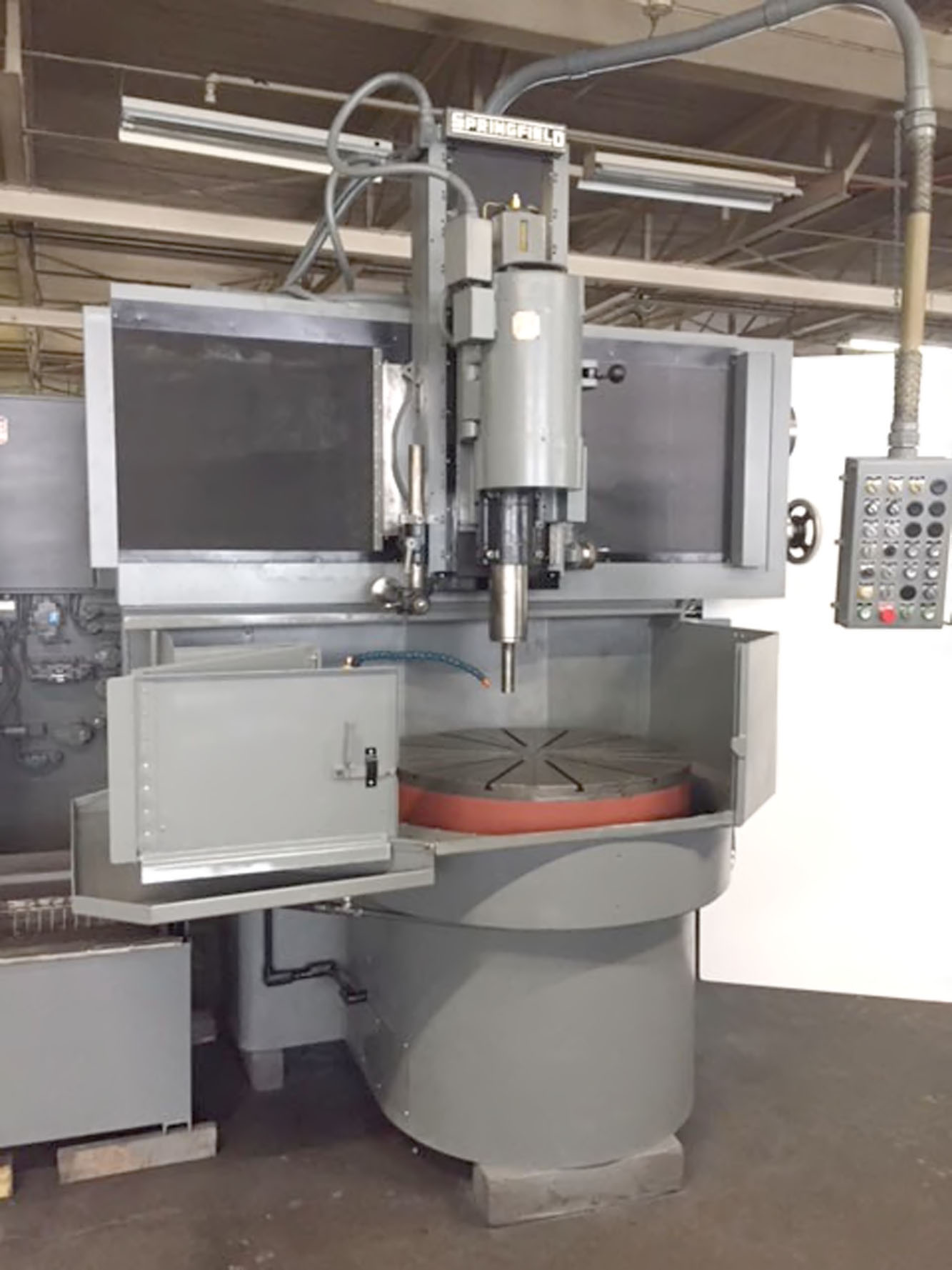

SPRINGFIELD 36E CROWN TYPE VERTICAL UNIVERSAL GRINDER

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


36E
74073
Grinders
GRINDERS, VERTICAL UNIVERSAL
used
(KG)
1980
$0.00

Description

Specifications

CATALOG SPECIFICATIONS:

42" T-SLOTTED FACE PLATE

46" MAXIMUM SWING

21" MAXIMUM STROKE OF GRINDING HEAD

0 - 120 IPM GRINDING HEAD SPEED

0 - 150 RPM TABLE SPEED

20" MAXIMUM CLEARANCE OVER FACE PLATE (UNDER SPINDLE HOUSING)
0 - 45 DEGREES ANGLE SETTING OF GRINDING HEAD
22,000 LBS. APPROX. WEIGHT

EQUIPPED WITH:
42" DIAMETER T-SLOTTED FACE PLATE

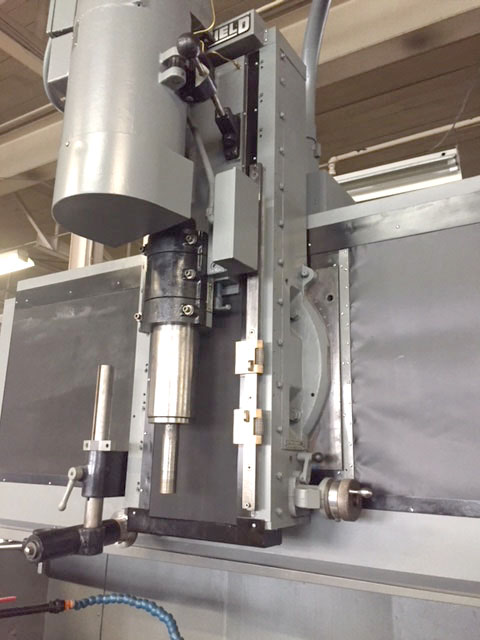

(1) STROKING TYPE GRINDING SPINDLE
ANILAM DIGITAL READOUT
10 HP SPINDLE DRIVE MOTOR
UNIVERSAL MANUAL TYPE DRESSER

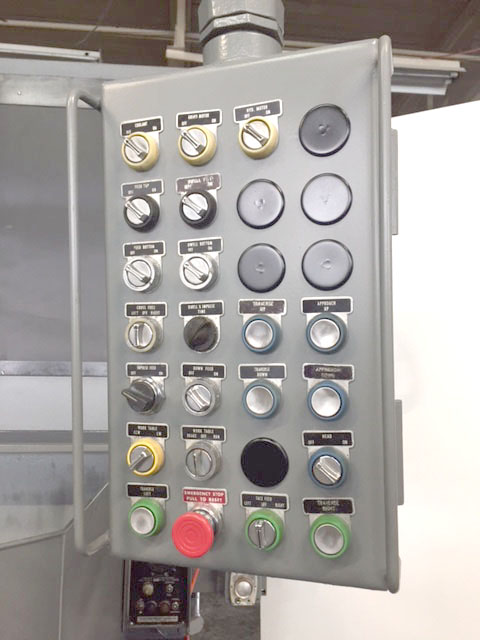

PENDANT CONTROL
BALL SCREW FOR GRINDING SPINDLE DEPTH

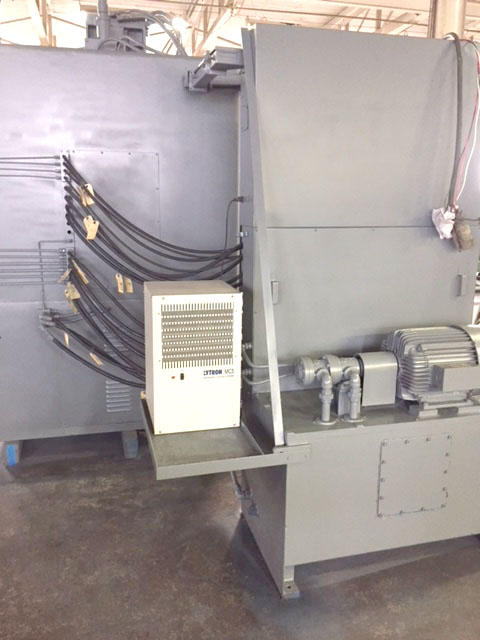

COOLANT SYSTEM
MISC. SPLASH GUARDING
