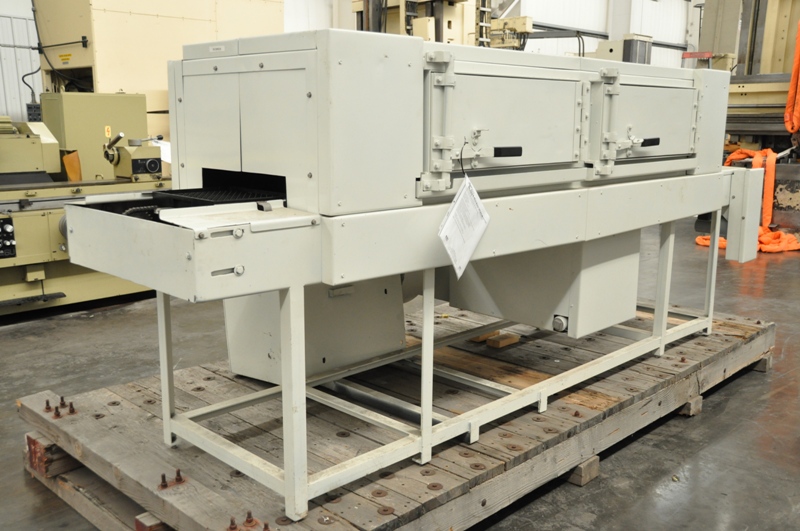

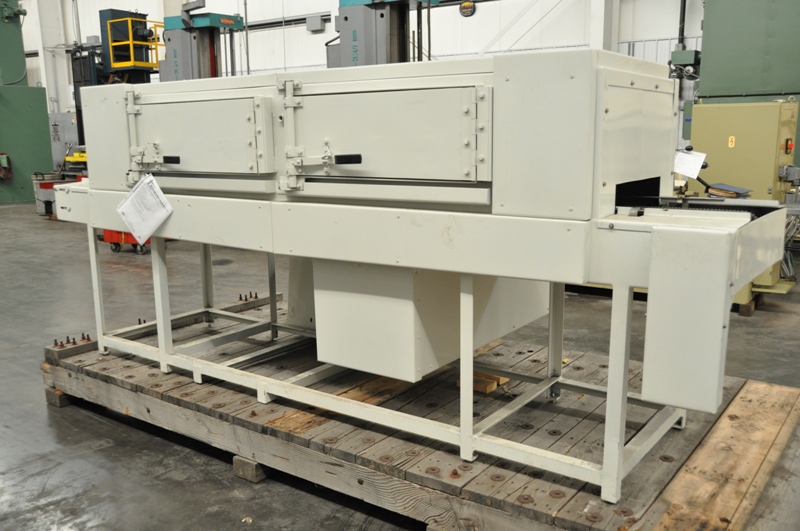

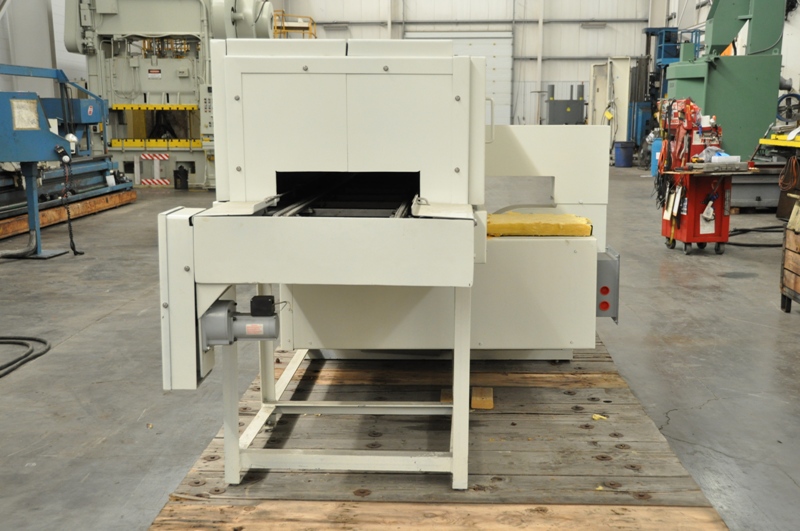

ROCK TOOL THRU FEED BLOW OFF DRY SYSTEM
PRICE: Loaded on Truck, Our Warehouse, York, PA $2,500.00
HMC Stock #16041-P
Machine Serial No. None
Machine Model No. None
New Date: Unknown
Machine Condition: UNUSED
Stainless Steel Construction of the Work Area

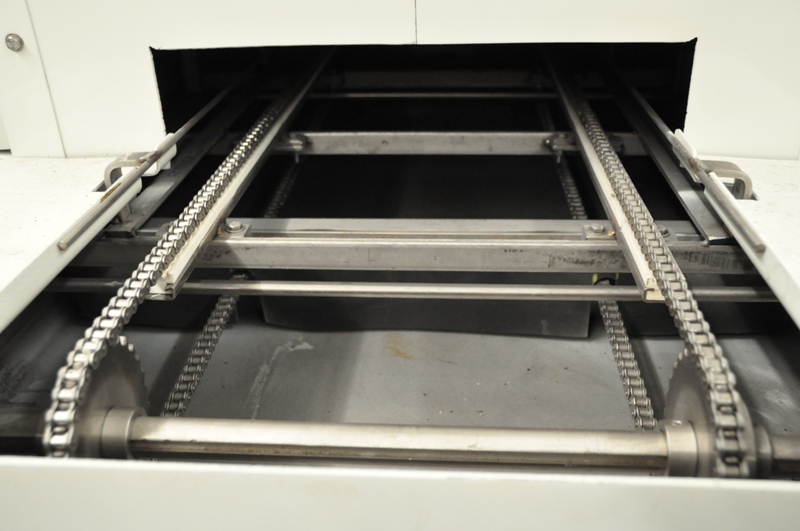

Bike Style Chain Driven Conveyor
Maximum Working Thru Capacity: 16-1/4" Wide x 4-3/16" High x Unknown Weight
Hot Air Blow Off Style Dryer

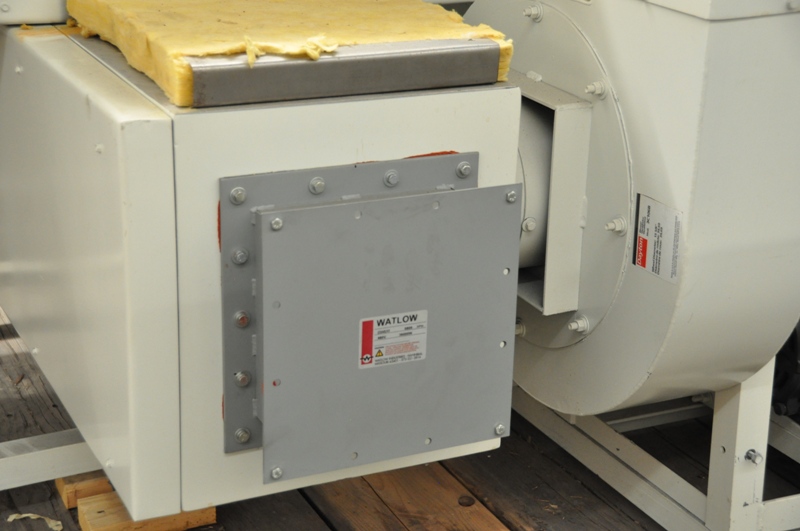

Watlow Air Heater Unit #D24SX5, 3 Phase, 480 Volt, 36000 Watt

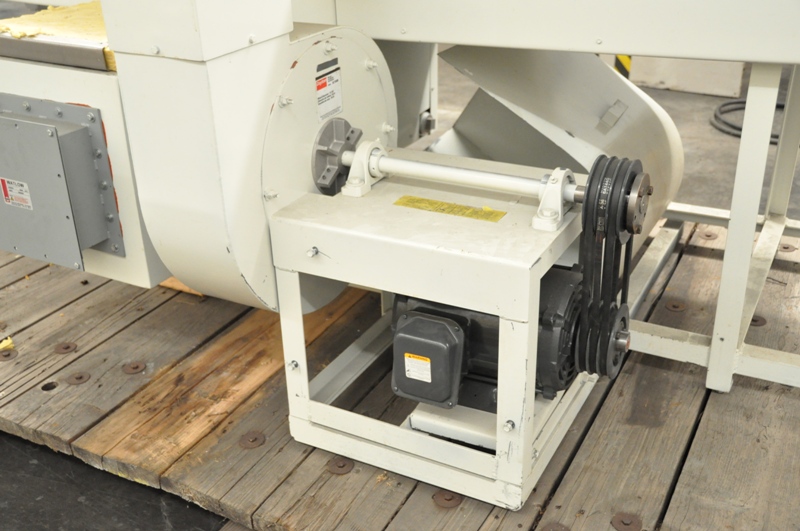

Dayton Blower Unit, Model 3C106B, 15-5/8" Wheel Diameter
10 HP Blower Drive Motor, 3 Phase, 60 Hz, 208-230-460 Volts
(4) Top Mounted Blow Off Tubes on 14-1/2" Centers
Fan Motor Guard
(2) Tunnel Access Ports on the Side
Catch Tank for Liquid Run Off Under Tunnel System
Drive Chain has a Nylon Tracking Guide for Each Side
Overall Size:
Machine: 141" Long x 61" Wide x 57-3/4" High
Unit on Skid: 150" Long x 68" Wide x 68-3/4" High
NOTE: There are NO Electrical Cabinets or Controls for This Machine
