Maximum Beam Width: 39"
Maximum Flange Height: 24"
Number of Spindles: 3
Number of Spindles per Axis: 1
Workpiece Traversing Speed (Longitudinal X-Axis): 1560 IPM
Traversing Speed (Y-Axis) Web Drill: 792 IPM
Traversing Speed (W & Z) Flange Drill Assemblies: 792 IPM
Max Workpiece Weight: 43 800 Lbs (Requires optional guide block)
Rate of Drill Feet (Infinitely Variable): 1-12 IPM
Drill Speeds: 270 / 540 RPM
Hole Diameter (Web): 1-9/16"
Hole Diameter (Flange): 1-9/16"
STRUCTURAL SHAPE CAPACITIES:
Flange Shapes:
Maximum: 36" x 300" 14" x 730"
Minimum: 4" x 13"
Miscellanous Beam and Columns:
Maximum: 14" x 18"
Minimum: 4" x 13"
American Standard Beams:
Maximum: 24" x 121"
Minimum: 3" x 5.7"
American Standard Channels:
Maximum: 15" x 50"
Minimum: 3" x 4.1"
Miscellanous Channels:
Maximum: 18" x 58"
Minimum: 6" x 12"
Angles:
Maximum: 8" x 8" x 1-1/8"
Minimum: 3-1/2" x 3-1/2" x 1/4"
EQUIPPED WITH:

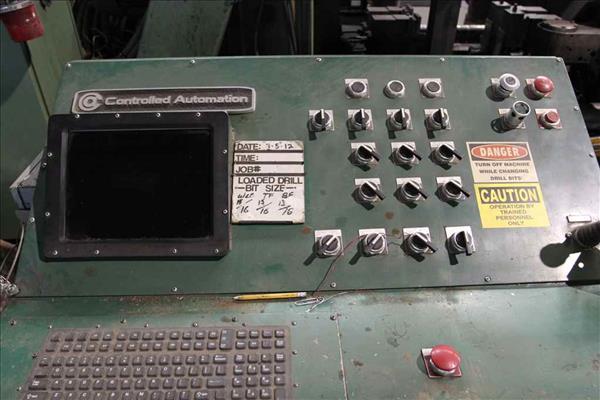

Controlled Automation Retrofit in 2006
DOS Based Control
