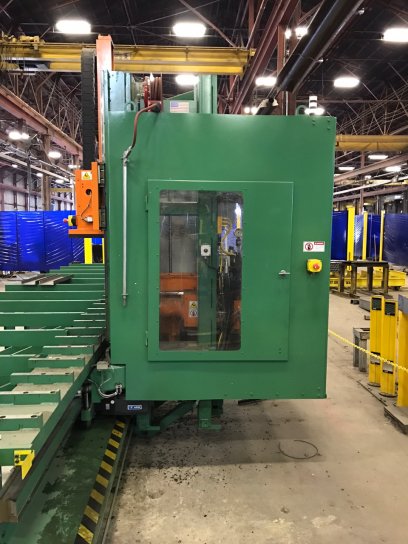

Description

DRILL SPINDLE SPECIFICATIONS
NUMBER OF DRILL SPINDLES - 1
DRILL SPINDLES PER AXIS - 1
POWER PER SPINDLE - HP (KW) 25 (18.7)
DRILL SPINDLE RAPID ADVANCE SPEED - FEET/MIN (M/MIN) 60 (18)
VARIALBE FEEDS (SPINDLE CONTROLLED BY CNC)- INCHES/MIN (MM/MIN)
0-60 (O-1800)

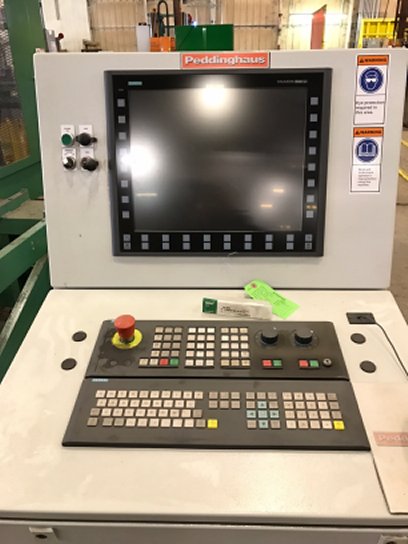

MOTOR SPEEDS CONTROLLED BY CNC - 0-3375
MINIMUM DRILL DIAMETER - INCHES (MM) - 3/8 HSS, 3/8 CARBIDE (8
HSS, 8 CARBIDE)
MAXIMUM DRILL DIAMTER - INCHES (MM) - 19/16 HSS, 1 1/4 CARBIDE
(40 HSS, 32 CARBIDE)
MAXIMUM DRILL GAUGE LENGHT FOR AUTOMATIC TOOL CHANGE (SPINDLE
FACE TO DRILL POINTS) - INCHES (MM) - 14.56 (370.0)
MAXIMUM DRILL GAUGE LEGTH FOR MANUAL TOOL CHANGE (SPINDLE FACE TO
DRILL POINT) - INCHES (MM) - 16.25 (412.7)
MINIMUM DRILL GAUGE LENGTH (SPINDLE FACE TO DRILL POINT) -
INCHES (MM)
STANDARD HYDRAULIC OIL SPECIFICATIONS

MINIMUM TEMPERATURE - F (C) - 54 (12)
STANDARD OPERATING TEMPERATURE - F (C) - 100-120 (38 - 49)
MAXIMUM TEMPERATURE - F (C) - 130 (55)
STANDARD OPERATING VISCOSITY RANGE - SSU (CST) - 80-1000 (17-180)
VISCOSITY RANGE 100 DEGREE F (38C) - SSU (CST) - 150-250 (30-50)
MAXIMUM START-UP VISCOSITY - SSU (CST) - 4000 (1000)


EQUIPMENT AND MODULE WEIGHTS

MDL 1250/1C MAIN MACHINE LBS (KG) - 7,250 (3290)

MACHINE DIMENSIONS

(HEIGHT X WIDTH X LENGHT) - INCHES (MM) - 103.6 X 67 X 100 (2631
X 17202 X 2540)

UNIT OF MEASUREMENT

MAXIMUM MACHINING WIDTH - INCHES (MM) - 49.2 (1250)
MAXIMUM MACHINGING HEIGHT - INCHES (MM) - 49.2 (1250)
MAXIMUM BAR STOCK THICKNESS - INCHES (MM) - 6 (150)
MINIMUM BAR STOCK THICKNESS - INCHES (MM) - 1/4 (6)
MAXIMUM LENGHT PIECE PART - INCHES (MM) 720 (18288)
MAXIMUM WORK PIECE WEIGHT - POUNDS (KG) - 18,000 OR 300 LBS/FT
(8165 OR 447 KG/METER)

AXIS SPEED SPECIFICATIONS

MAXIMUM HORIZONTAL TRAVEL (X-AXIS) - 150 (46)
MAXIMUM VERTICAL TRAVEL (Y-AXIS) - FT/MIN (M/MIN) - 60 (18)
OPERATING POWER REQUIREMENTS

STANDARD VOLTAGE/PHASE/HERTZ - 480/3/60 (380/3/50)
POWER CONSUMPTION - KVA - 44

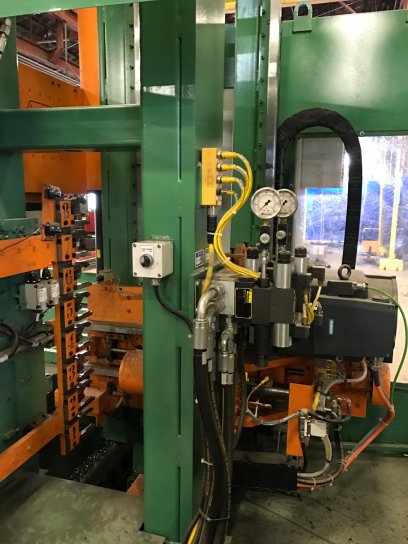

HYDRAULIC POWER UNIT SPECIFICATIONS

MOTOR POWER - hp (kw) - 7 (5.2)
HYDRAULIC PRESSURE - PSI(BAR) - 1750 (121)


AIR USAGE SPECIFICATIONS

AIR CONSUMPTION - CU. FT/MIN (CU. M/HR) - 20 (34)
AIR PRESSURE - PSI (BAR) - 90 (6)
MAX AIR PRESSURE - PSI (BAR) - 125 (8.6)
MAINTENANCE UNIT/CONNECTION SIZE - 1/2"

METAL CLAMPING PRESSURE

MAXIMUM VERTICAL CLAMPING PRESSURE - PSI (BAR) - 1750 (120.7)
AVAILABLE VERTICAL CLAMPING FORCE - MIN-MA LBS (MIN-MAX KG) -
2050-10300 (9120 - 45800)
MAXIMUM TOOL WEIGHT - LBS (KG) - 8 (3.6)
