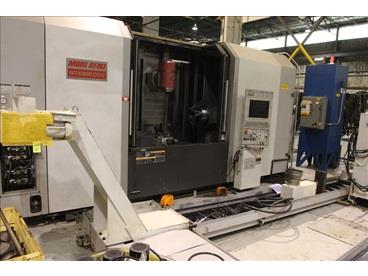

MORI SEIKI NT4300 DCG/1500 TURNING AND MILLING CENTER

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


NT4300DCG-1500
37334
Lathes and Turning Centers CNC
Turning and milling center
used
(KG)
2012
$0.00

Feature Video

Description

Maximum  Swing:  28.74"

Swing  Over  Turret  2:    15.75"

Maximum  Turning  Length:  58.98"

Bar  Work  Capacity:  3.54"
Maximum  Distance  Between  Centers:  73.31"
Y-Axis  Travel:  8.27"
X1-Axis  Travel:  29.53"
Z1-Axis  Travel:  61.02"  +  3.94"
X2-Axis  (Turret  2)  Travel:  7.68"
Z2-Axis  (Turret  2)  Travel:  60.04"
B-Axis  Range:    +/-  120°
Maximum  Spindle  Speed:  3000  RPM
Number  of  Speed  Ranges:  2
Spindle  Hole  Diameter:  4.13"
Spindle  2  Maximum  Speed:  3000  RPM
Spindle  2  Hole  Diameter:  4.13"
Minimum  Spindle  Indexing  Increment:  .0001°
Milling  Spindle  Maximum  Speed:  12 000  RPM
Milling  Spindle  Taper:  Capto  C6
Chuck  Size:  (2)  18"

Equipped  With:

Mori  F31iA5  CNC  Control
100-ATC
Hydraulic  Actuators
Renishaw  MP700  Probing
Super  High  Pressure  Coolant  7MPa
40  HP  Main  Spindle  Drives
Chip  Conveyor
Coolant  Tanks
Spindle  1  Hobbing  Function
