Description

Max X-Axis Stroke (inch) - 144
Max Y-Axis Stroke (inch) - 240
Z-Axis Stroke (inch) - 8.0
Work Tank Access - Clear Loading w/ Crane
Working Table Height from Floor (inch) - 36
Machine Structure - Ind. Frame/Table Gantry Movement
Rapid Travel Speed (inch/min) - 0 - 787
Mechanical Acuracy - +0.003" per 3 (+/-0.001" with TCS)

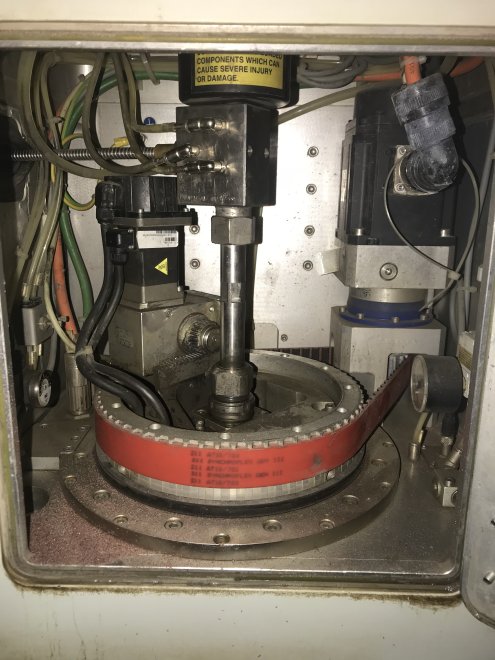

Taper Compensation System (TCS) (Optional) - 6 degree tilt 360

rotation

Intensifer Pump:

Pump Model - Poro-60
Number of intensifiers - 1
Design Pressure - PSI - 90,000
Motor Consumption - GPM - 0.70
Water Consumption - GPM - 0.70
Intensifier Ration (oil/water) - 1:35

Control Unit:
Program Support Function - Metamation METCAM
Program Input Capabilities - Ethernet, USB, PCMCIA card

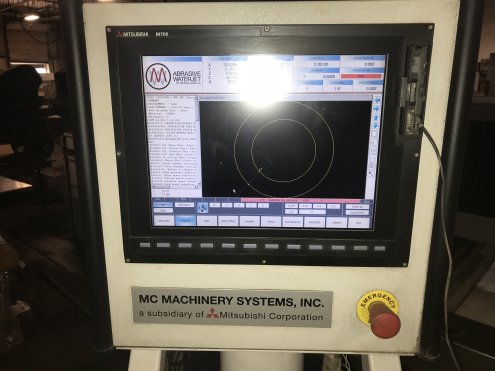

Graphic Display - 15" waterproof TFT Color LCD
CPU/Type - M700 Series / Industrial PC
Min. Command Input - 0.001mm/0.0001"

Abrasive Fluid System:
Abrasive Reservoir Capacity - lb - 670
Water Recycling Sytem (option) - (Closed loop w/ chiller)

Standard Features:
Pressurized Abrasive Tank (670lb.)

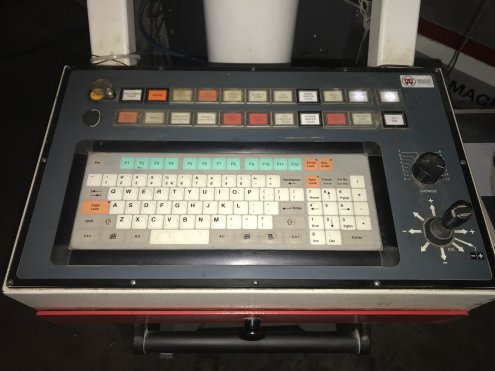

Mitsubishi M730 CNC w/ 3-Axis Joystick
Abrasive Regulator (Mini-Hopper)

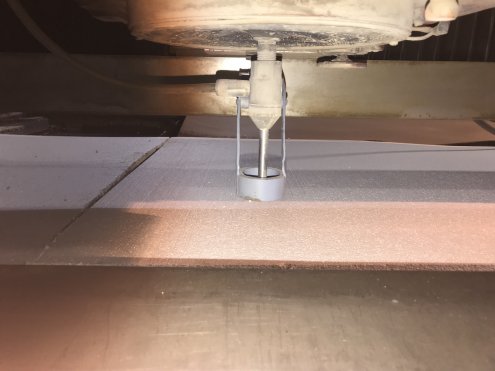

Cutting Head - KMT Mixing Chamber with Diamond Orifice
Self Positioning Z-axis
Programmable Touch Sensing System
Continuous Automatic Height Sensor Compensator
Nozzle Start-up Kit
PCMCIA Card & USB Port
10/100 Mbps Ethernet Connection

Includes

- Taper Control
- 50hp KMT Pump (60ksi)
- Laser Pointer
- Collision Detection
- Touch Probe
- Abrasive Removal System
- Closed Loop Water Filtration
- Chiller
- Mitsubishi Controls
- Metamation Cad/Cam Software
