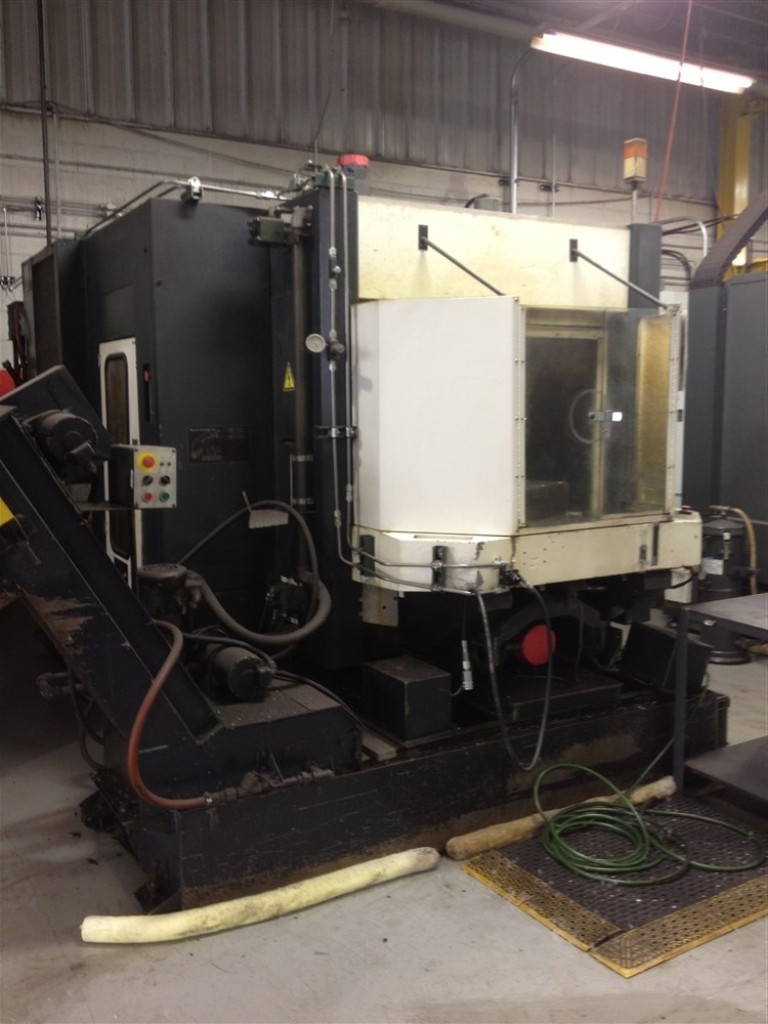

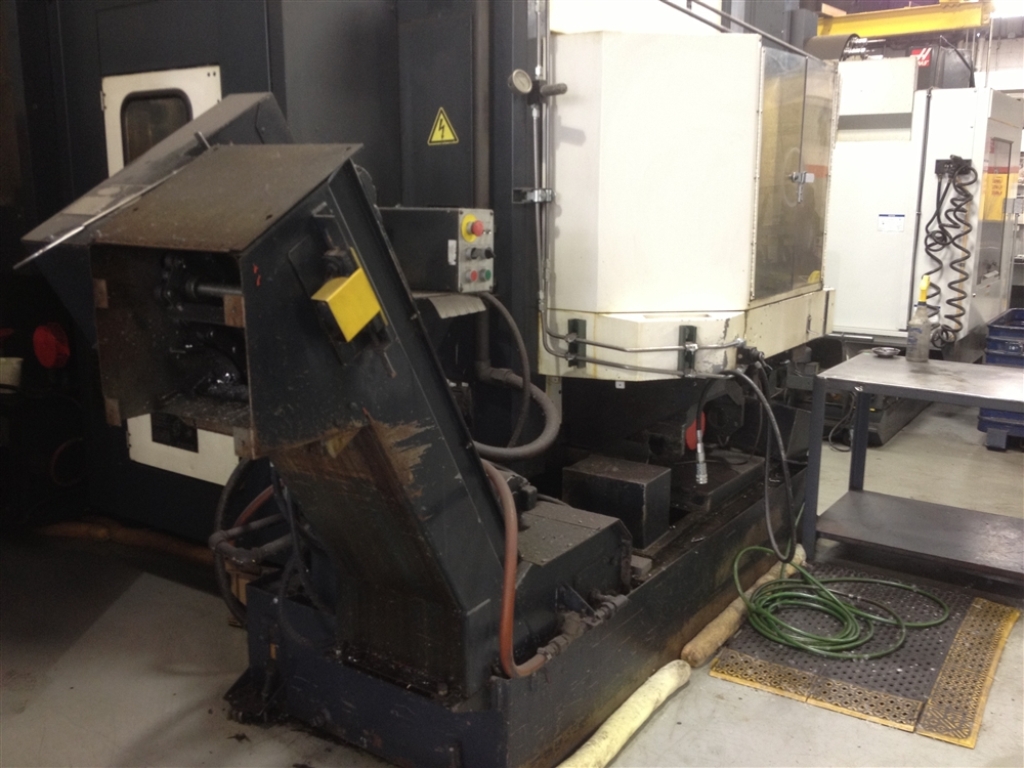

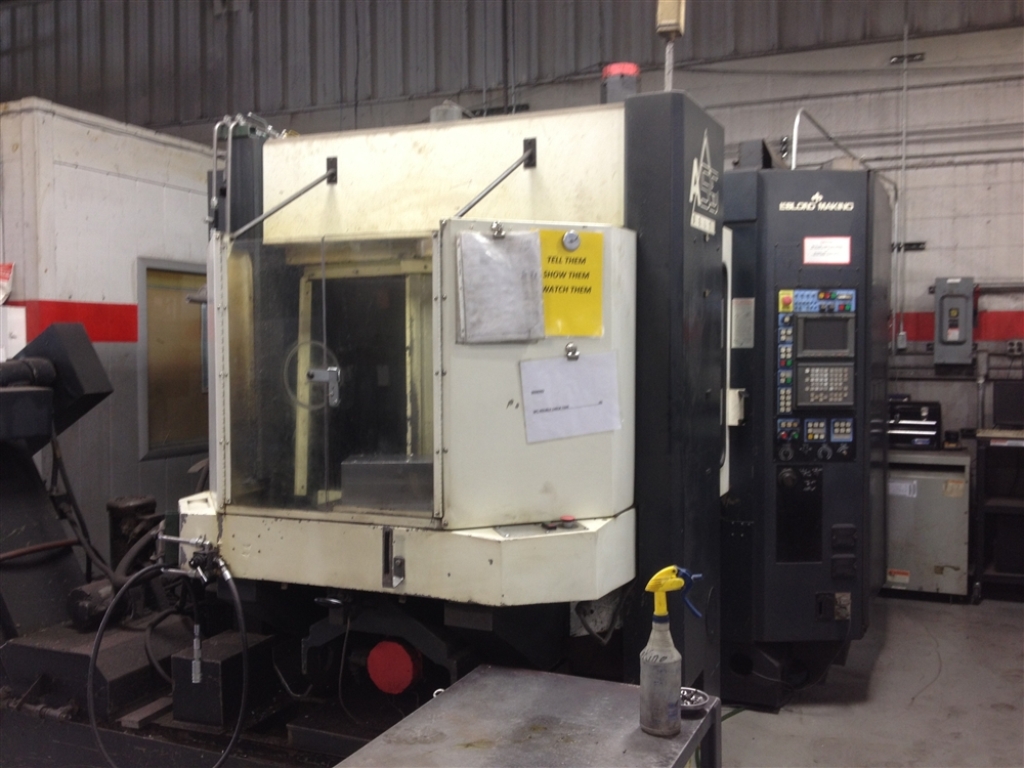

MANUFACTURER...................... MAKINO
MODEL............................. A55 PLUS
AGE............................... 1999
SERIAL NUMBER..................... LM/415

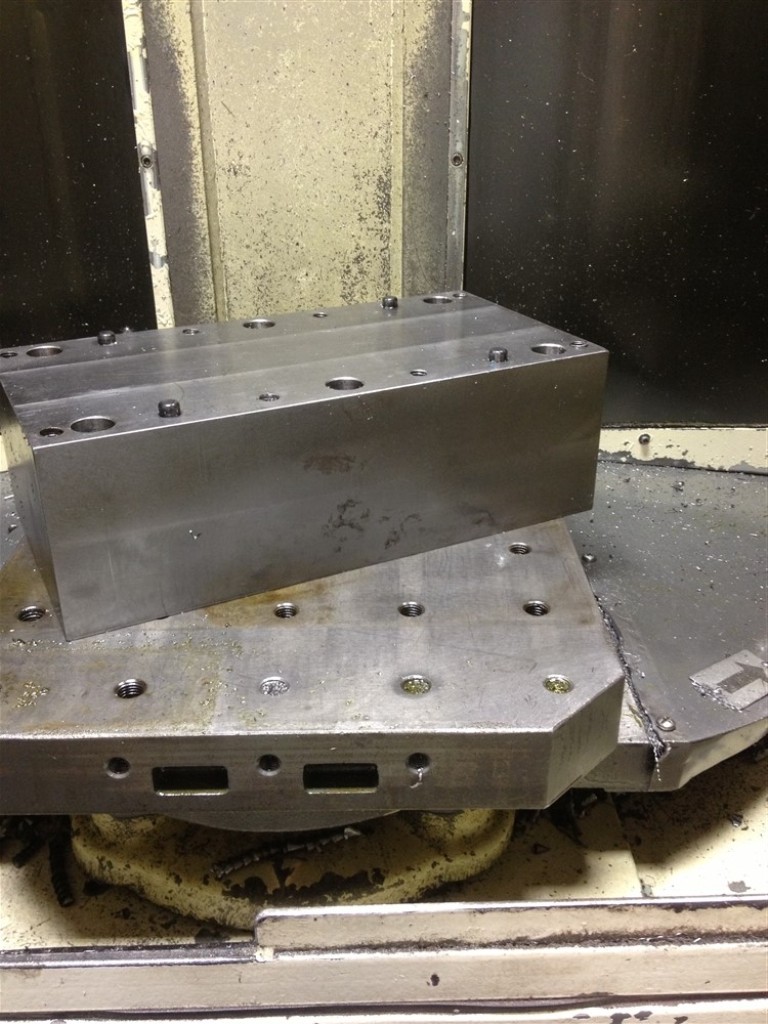

PALLET SIZE....................... 15.7" x 15.7"
MAXIMUM TABLE LOAD................ 880 LBS
X AXIS TRAVEL..................... 22"
Y AXIS TRAVEL..................... 22"
Z AXIS TRAVEL..................... 22"
RAPID TRAVERSE RATE............... 1575 IPM
AXIS INDEXING..................... 1 DEGREE (360 POSITIONS)
MAX SPINDLE SPEED................. 12,000 RPM
SPINDLE TAPER..................... CAT 40
SPINDLE MOTOR..................... 29.5 HP AC
TOOL CHANGER CAPACITY............. 40 TOOLS
FLOOR SPACE....................... 8 X 12
OVERALL HEIGHT.................... 9 8"
WEIGHT............................ 18,500 LBS
EQUIPPED WITH:
FANUC 16iM (PRO LOGIC III) CNC CONTROL WITH 10.4" LC
RS-232C PORT INTERFACE FOR DNC OPERATION
RIGID TAPPING, SYNCHRONOUS, SOLID TAPPING
COOLANT THROUGH THE SPINDLE
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
To view more information on the MAKINO #A55 DELTA CNC HORIZONTAL MACHINING CENTER: STOCK #62708, including reviews, brand information, photos, videos, and more,
