K O LEE ROTARY TANGENT GRINDER

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


RT 300
24393-?K
Grinders
GRINDERS, TOOL and CUTTER
used
1150 (LB)
0
$3,950.00

Description

Description & Specifications

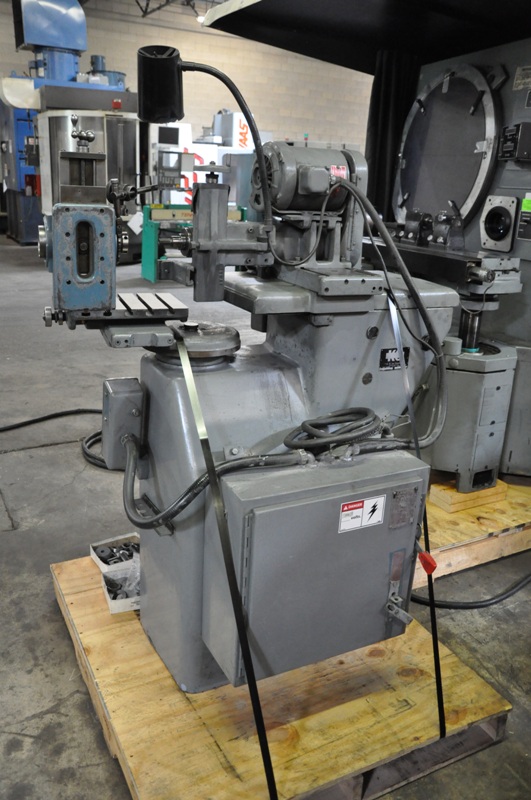

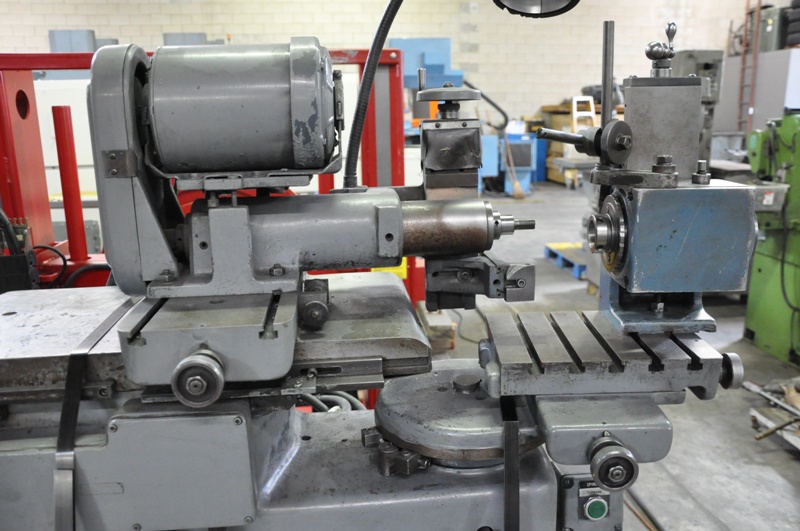

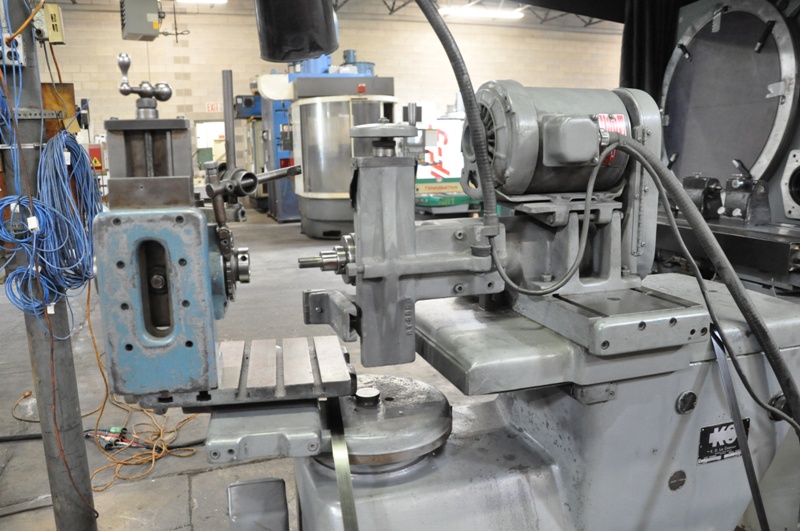

KO LEE ROTARY TANGENT GRINDER

PRICE: Loaded on Truck, Our Warehouse, York, PA ………… $3,950.00


HMC Stock No. 16127-P
Machine Serial No. 24393
Machine Model No. RT 300
New Date: Unknown

CAPACITY:
Maximum Cutting Diameter: 12-3/4"
Radius-Concave: 5-1/2"
Radius-Convex: 5-1/2"
Maximum Length of Flute: 7"

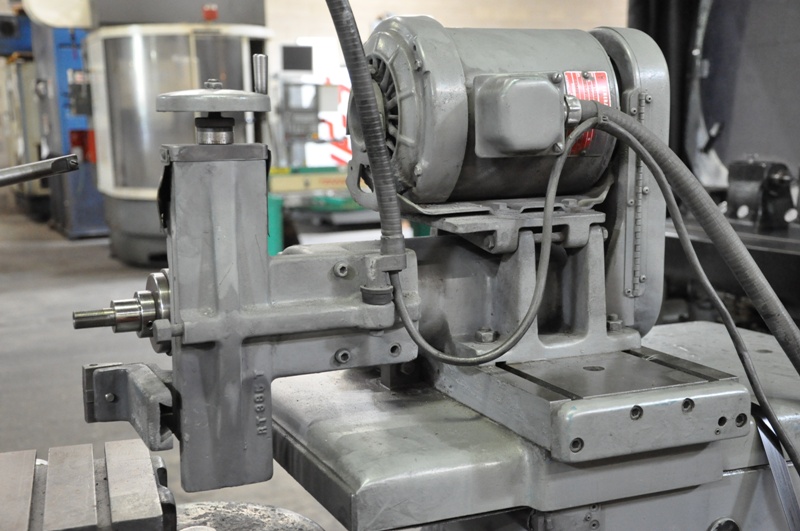

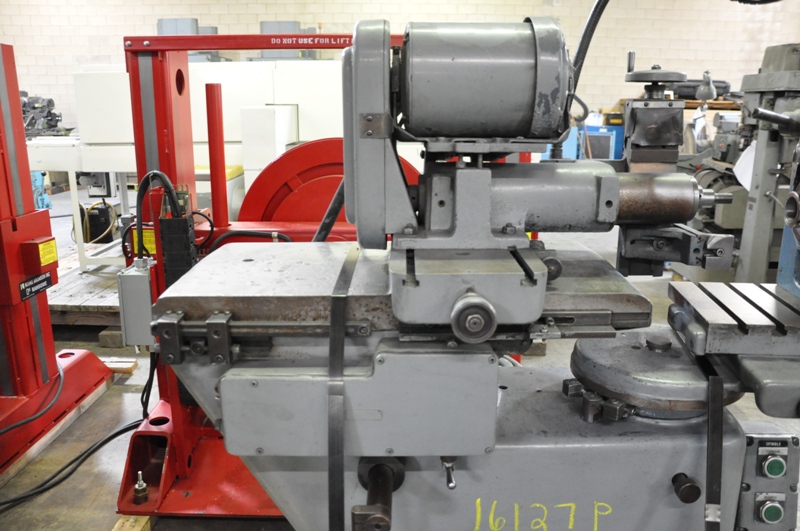

WHEELHEAD MOVEMENTS:
Lateral Wheelhead Ways
Hardened Balls Running on Replaceable Flat & Vee Hardened Ways: 7"
Transverse-Quick Adjustment on Tee Bolt Slide: 10-3/4"
Transverse-Fine Adjustment, Screw Feed with Backlash Eliminator: 1-3/4"
Tranverse Total: 12-1/2"

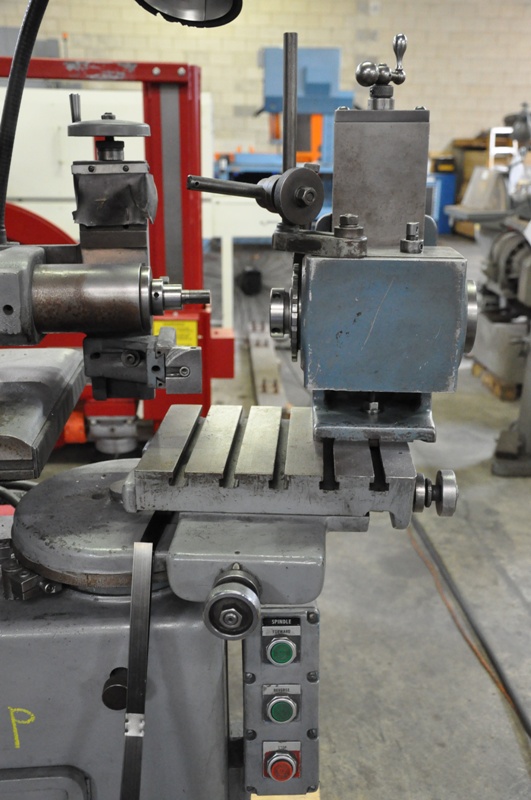

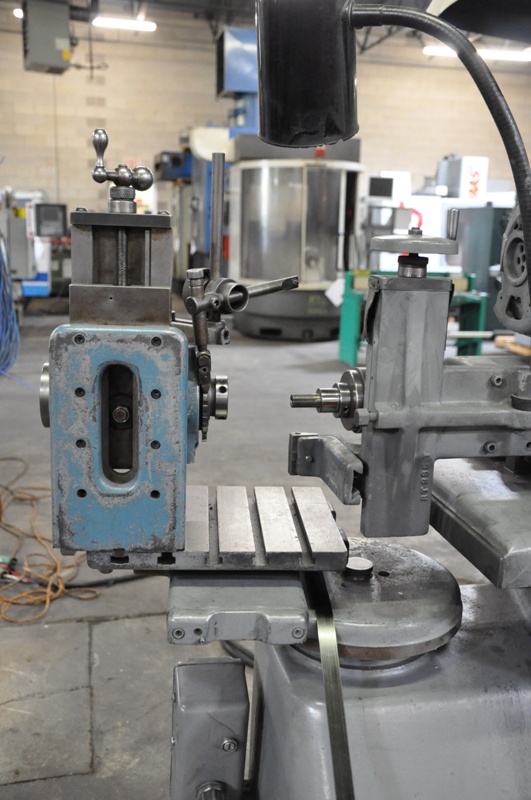

WORK TABLE MOVEMENTS:
Parallel to Center Axis, Fine Adjustment, Screw Feed: 2-1/8"
Parallel to Cutter Axis, Quick Adjustment, Tee Slot Slide: 6"
Parallel to Cutter Axis Total: 8-1/8"
Normal to Cutter Axis, Quick Adjustment, Tee Slot Slide: 10"
Normal to Cutter Axis, Fine Adjustment: 2-5/8"
Normal to Cutter Axis Total: 12-5/8"
Work Table Size: 8" x 11"
Vertical Movement of Work Holder: 3"
Rotary Movement of Work Table on Preloaded Taper Roller Bearings: 210 Deg.
Centerline of Wheelhead Spindle to Pivotpoint of Work Table: 7-3/4"


Dimensions: 50" L x 30" W x 60" H
Weight: 1,150 Lbs.
