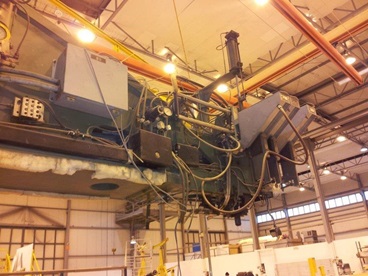

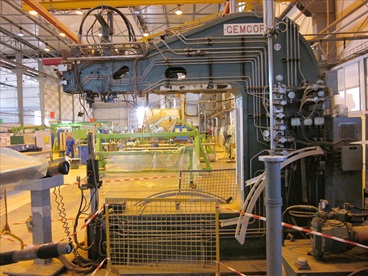

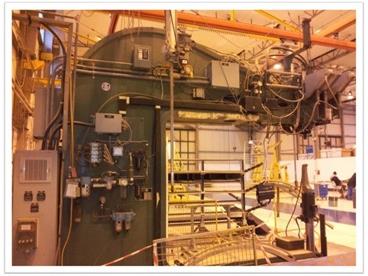

GEMCOR G300 BCH/LA-72 AEROSPACE RIVETER/DRILL/FASTENER

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


G300 BCH-LA-72
32361
Riveting Machine
Aerospace Riveting Machines
used
(KG)
0
$0.00

Description

SPECIFICATIONS
Up to 19 Straight Line Rivets per Minute
Modular Design
(4) Position Upper Head, Including:
Vision Resync Camera
Drill Spindle
Toggle Buck
Flushing Probe
Minor C-Frame Allowing Capability to Fasten Complete 180° Half-Fuselage Super Panel Assembly


Please Note: Bid Awarded by September 30, Unless Sold Prior
Must be Removed by Friday, October 22


X-Axis Travel: 452"
Max. Jog Rate: 400 IPM
Z / W-Axis Travel: 163"
Max. Jog Rate: 236 IPM
A-Axis Rotation Range: +/- 90 deg
Max. A-Axis Jog Rate: 180 DPM
B-Angle: +/- 15 deg
E-Axis Rotation: 400 deg
Max. Jog Rate: 3600 DPM
Spindle Speeds: 500 - 20000 RPM
Drilling Spindle Feedrate Range: 0 - 315 IPM
Daylight (Lower Tool in Lace, Lower Ram Fully Retracted): 29.5"
C-Frame Throat Depth: 149"

Equipped With:
Fisher Precise SD5084 Drill Spindle
Variable Frequency Controlled
Coutnersink Drill Depth Control
Multi-Material Stack Drilling Function w/ Automatic Speed and Feed Change
Programmable Peck Drilling Cycle
Electro-Servo Controlled Toggle Buck and Roller Screw Lower Ram
Lower Ram Turntable w/ 400 deg of Rotation
Automatic Injector Shuttle
Dimensions & Weight: Call Perfection Global for Dimensions, 0 Lbs
Preliminary Specifications....
