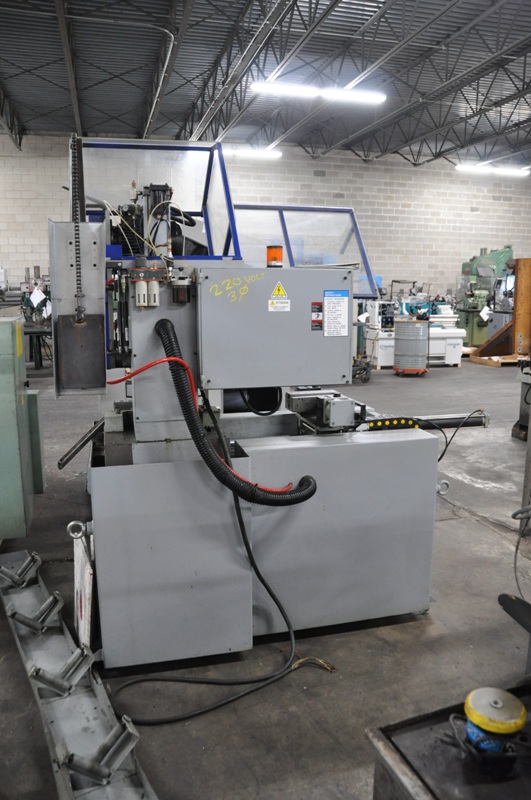

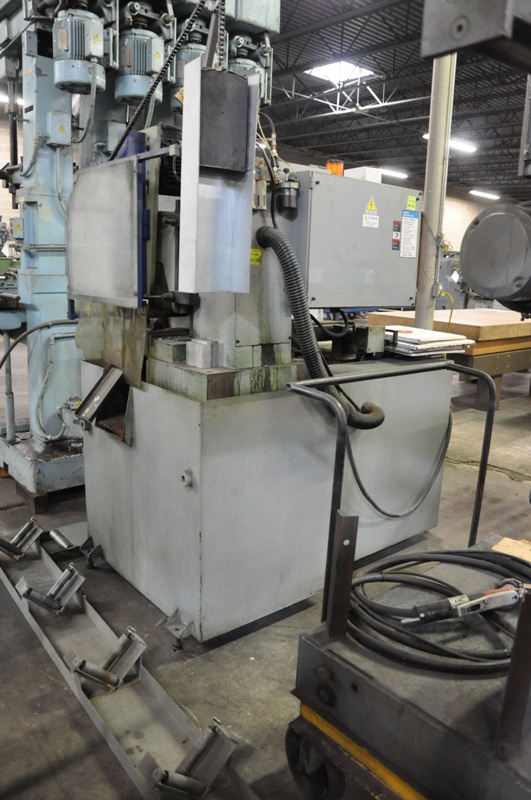

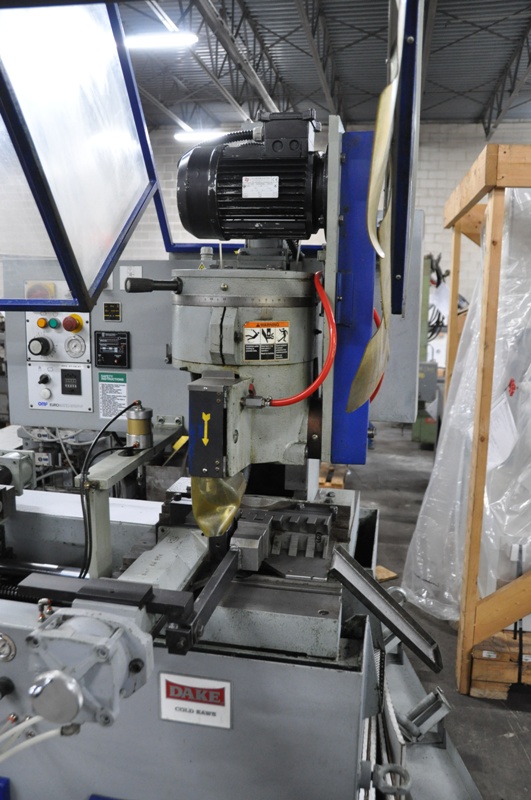

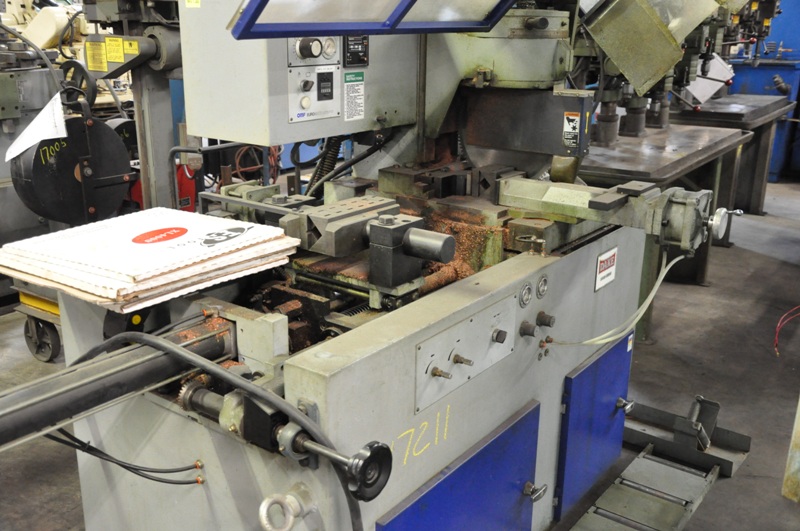

DAKE EUROMATIC NON FERROUS COLD SAW

PRICE: Loaded on Truck, Our Warehouse, York, PA        $9,950.00

HMC Stock No. 17211

Machine Serial No. 642002

Machine Model No. 370-PP Fully Automatic

New Date: 2002

Round Solid Capacity: 4" @ 90 Degrees

Round Solid Capacity: 3-5/8" @ 45 Degrees

Round Tube Capacity: 5-1/16" @ 90 Degrees
Round Tube Capacity: 5" @ 45 Degrees
Square Tube Capacity: 4" @ 90 Degrees
Square Tube Capacity: 3-1/2" @ 45 Degrees
Rectangle Tube Capacity: 4" x 7" @ 90 Degrees
Rectangle Tube Capacity: 4" x 6" @ 45 Degrees
Blade Size: 14-1/2" Maximum, 12" Minimum
Blade Thickness: 0.078" to 0.1377"
Blade Arbor Hole: (32 mm) 1.259"
(2) Speeds: 1,500, 3,000 RPM
Head Vertical Stroke: 9"
Head Down Stroke Speed Range: 0 to 9 IPM
Head Down Stroke Via Adjustable Air Over Oil Pressure Controls
Maximum Vise Opening: 9"
Replaceable Vise Jaw Size: 2-3/4" High x 6" Long

EQUIPPED WITH:
(4) New (1) Used Carbide Tipped Saw Blades, 14" Dia. x 1.260" Bore

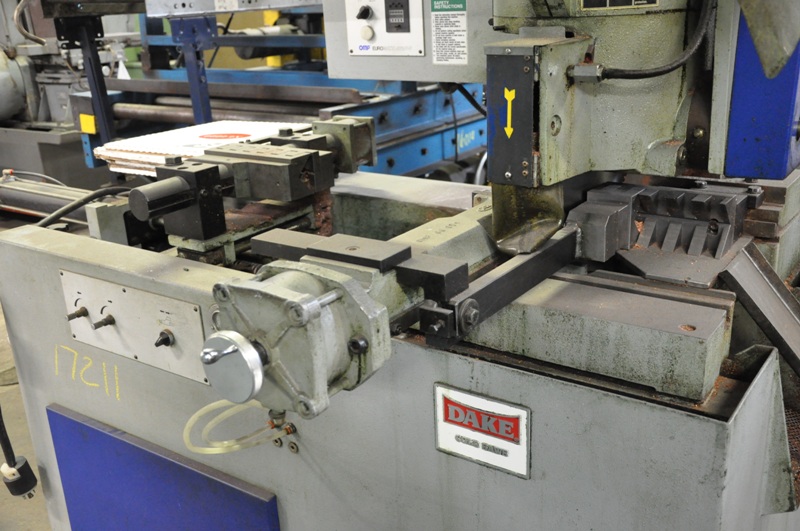

Saw Head Mitering Range: 90 Degrees Left, 45 Degrees Right

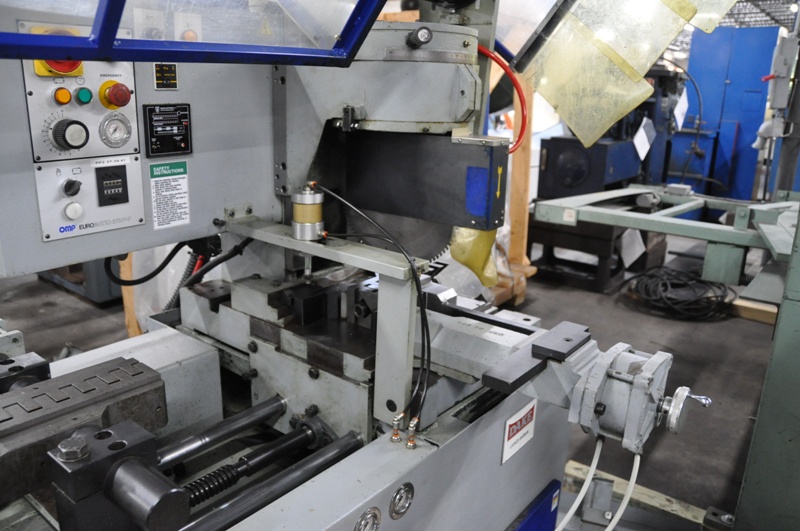

Manual and Pneumatic Vise Operation

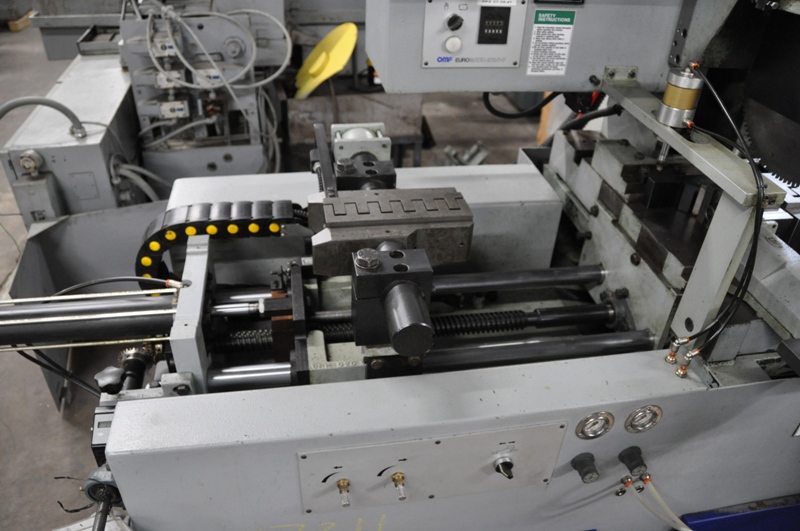

Bar Feed Cylinder Stroke: 20" Maximum
Bar Feed Multi Stroke Capacity: 999 Times @ 0" to 20"
Piece Counter Range: 1 to 9999
Coolant Capacity: 5 Gallon
Adjustable Blade Protection Amp Meter
(2) Adjustable Head Traverse Stops

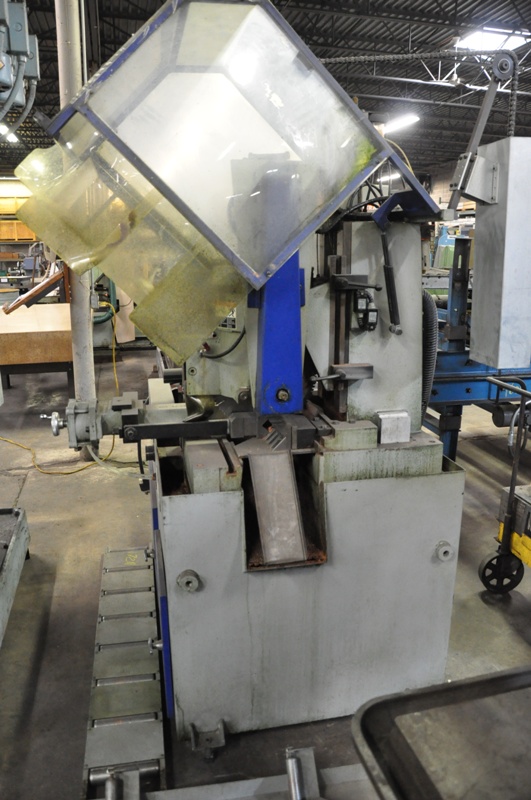

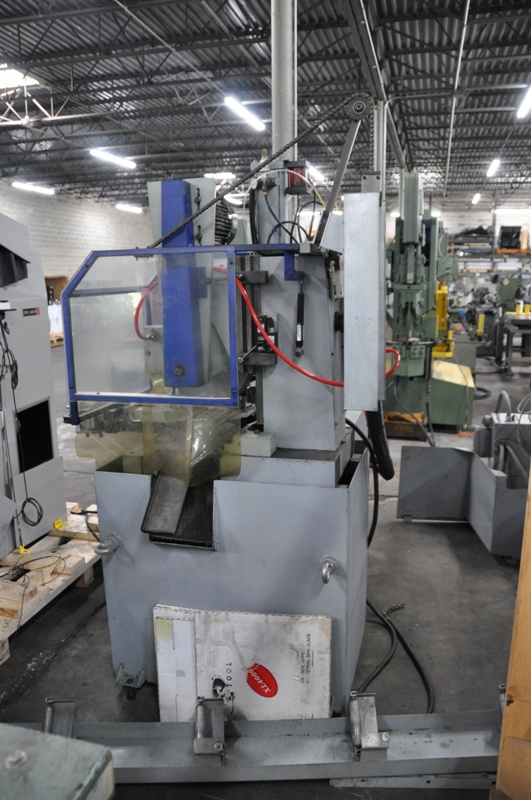

Swing Up Work Area Guard
Digital Bar Feed Counter
Removable Chip Pan
OEM Operation Manual

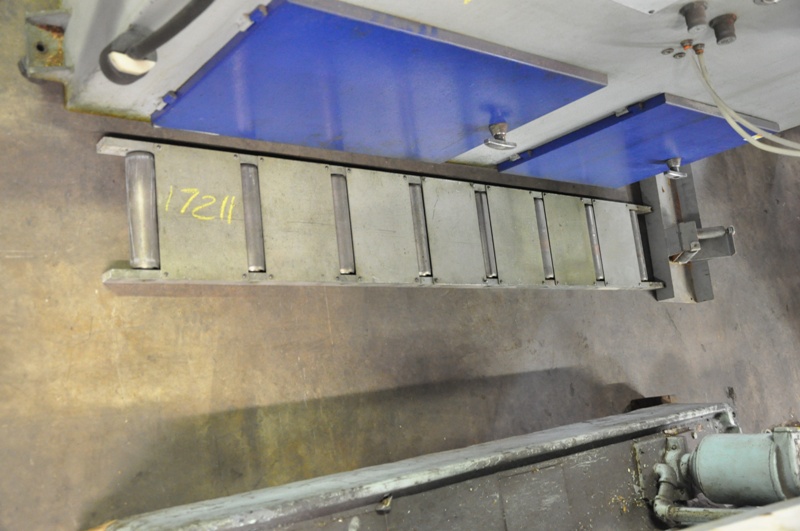

(1) Section 8" Wide and 5 Long Flat Roller Conveyor

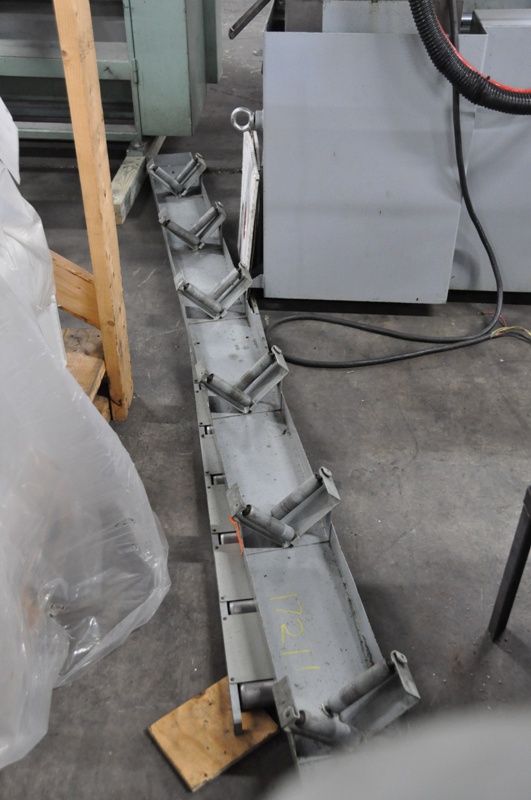

(1) Section 9" Wide and 10 Long V Roller Conveyor
4.5/3.5 HP Motor
Wired for 3 Phase, 60 Hz, 220 Volts ONLY, 20 Amps

Shipping Dimensions, Machine: 85" L-R x 53" F-B x 81" High x 1,720 Lbs.
(2) Sections of Roller Conveyor, Stacked: 10" Wide x 120" Long x 12" High x 50 Lbs.
