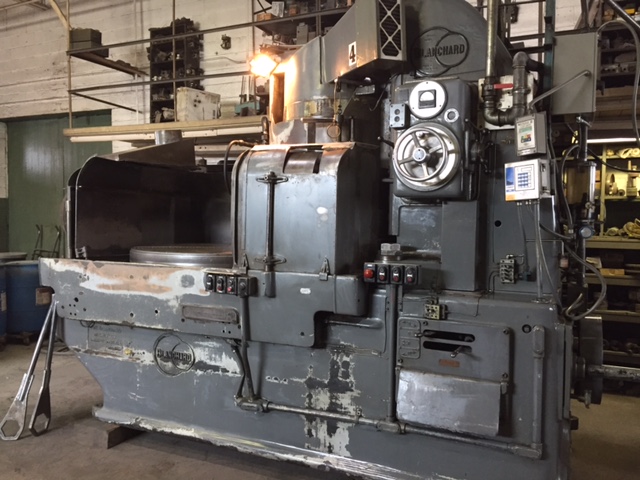

BLANCHARD #32-60 60\" VERTICAL SPINDLE ROTARY SURFACE GRINDER

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


32-60
6621
Grinders
GRINDERS, SURFACE, ROTARY TYPE (VERTICAL SPINDLE)
used
(KG)
1950
$0.00

Description

Specifications

Specifications:

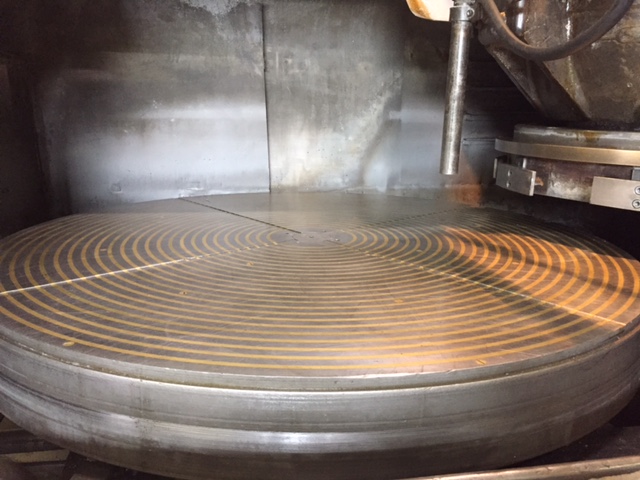

DIAMETER OF MAGNETIC CHUCK: 60"

GRINDING WHEEL DIAMETER: 32"

MAXIMUM DISTANCE UNDER NEW WHEEL: 24"

MAXIMUM SWING INSIDE WATER GUARDS: 66"
TABLE SPEEDS: (4) 3 - 13 RPM
HAND AND POWER ELEVATION TO WHEEL HEAD
AUTOMATIC DOWNFEED TO WHEEL HEAD:
.004 - .080 IPM
APPROX. WEIGHT: 36,000 LBS.
FLOOR SPACE: 156" x 7 x 104" MINIMUM HEIGHT

EQUIPPED WITH:
CORTLAND SEGMENTED WHEEL ADAPTOR
WHEEL DRESSER ASSEMBLY

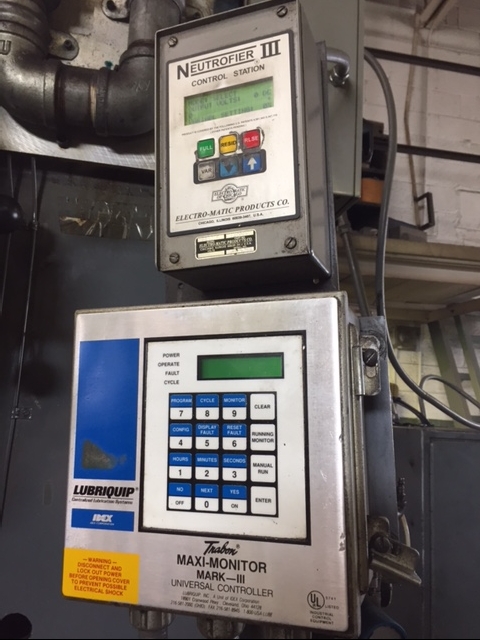

NEUTROFIER III VARIABLE DIGITAL MAGNETIC CHUCK CONTROL
60 HP SPINDLE DRIVE WITH
(2) PUSHBUTTON CONTROL PANELS
SOFT START FOR SPINDLE AND TABLE DRIVES
LUBRICATION SYSTEM
MISC. SPLASH GUARDING
Rebuilt in 1997
