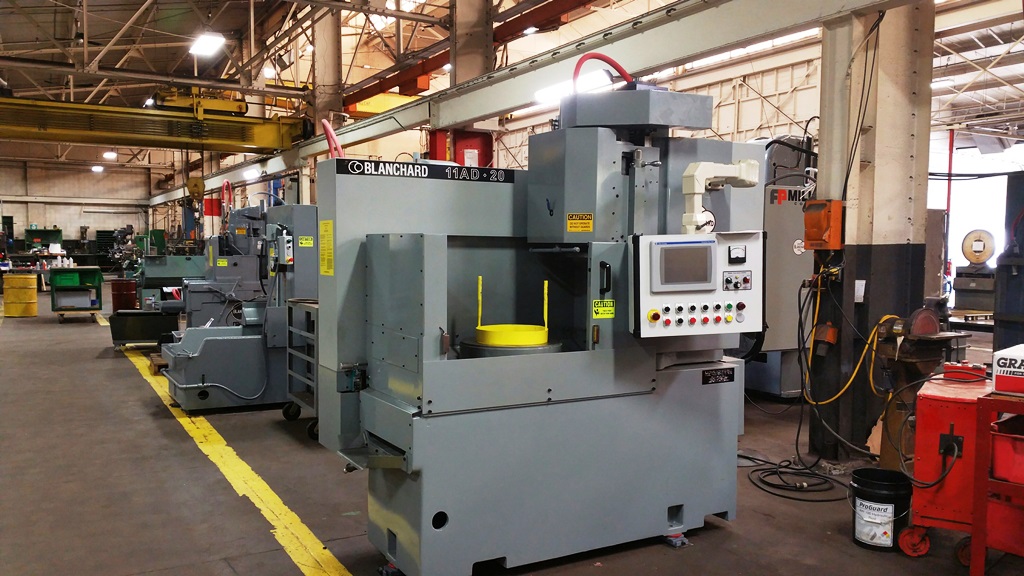

BLANCHARD #11AD-20 20\" VERTICAL SPINDLE ROTARY SURFACE GRINDER WITH SERVO BALL SCREW FEED & A/B COMPACTLOGIX PLC TOUCH SCREEN CONTROL

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


11AD-20
16062
Grinders
GRINDERS, SURFACE, ROTARY TYPE (VERTICAL SPINDLE)
used
(KG)
2001
$0.00

Description

Specifications

Dry base design, coolant pump and tank not included

11" Grinding Wheel Diameter

20" Magnetic Chuck Diameter

21" Swing Inside Water Guards
12" Vertical range (Ball Screw Servo Driven)
500 Lbs. Maximum Unbalanced Weight Load on Chuck
15 HP Main Spindle Drive
Full Load Amp Req.: 39 amps at 480 vac. Recommended disconnect fused for 60 amps.
Minimum Specifications of servo drive :
AC Servo Type Table Feed System
.001-.100 IPM Course Down Feed Rates
.100 IPM Rapid Jog rRate
20 IPM Rapid Travers Rate
15-75RPM Variable Table Rotation Speeds
.1-10 Minutes Spark Out Timer
Dimensions: 7-9"" Height, 7-7"" Length, 4-6"" Width
8,000 Pounds Weight Approximately
460 Volt, 3 Phase, 60 Cycle Electrical Systems

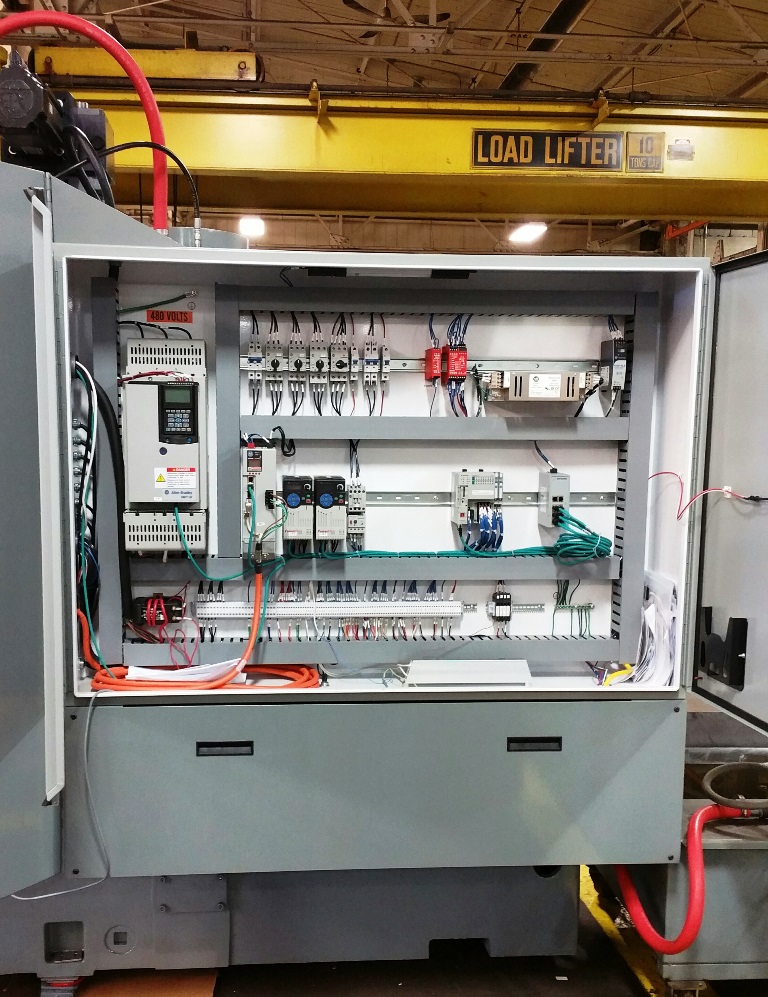

Thank you for choosing F. P. Miller Company to provide you with a quote on a totally rebuilt #11AD-20 Automatic Blanchard Rotary Surface Grinder. The work will consist of a mechanical rebuild and Electrical PLC package, drives and programming which includes specific items as follows:
