Max Sheet Size (X, Y) - 120" x 60"
Max. Axis Travel (X, Y, Z) - 121" x 61" x 3.93"
Travel Method - Stationary Table, X, y and Z-axis movement for
cutting head
Control Method - X, Y and Z (simultaneous 3-axis control)
Drive Motors - FANUC AC servo motors
Max. Axis Positioning Speed (X, Y) - 4,724"/min per axis
(6,693/min. 45 vector)
Max. Z-Axis Speed - 4,724"/min
Repeatability - +0.0002"
Max. Material Weight - 2,000 lbs
Power Supply - 200/60 V/HZ (+10%) 3-Phase

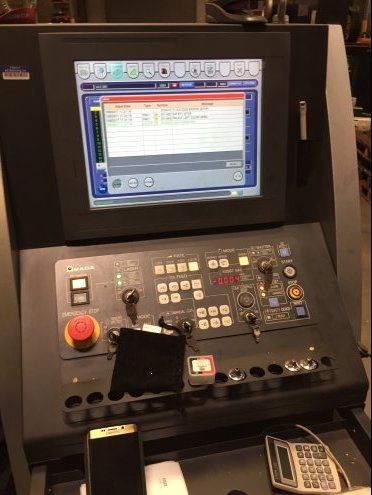

Machine Control
Model - AMNC 3i Control
Display - Touchscreen Color LCD
Control Function - X, Y, Z axis, simultaneous and focus lens B-
axis and laser power control (CW, gated pulse, pierce routines
etc)
Data Storage - Compact Flash Drive
To view more information on the AMADA 2KW FLC3015AJ FIBER LASER W/ASLUL 300FOL-AJ MFG:2013 Â OUR STOCK NUMBER: 11117, including reviews, brand information, photos, videos, and more,
