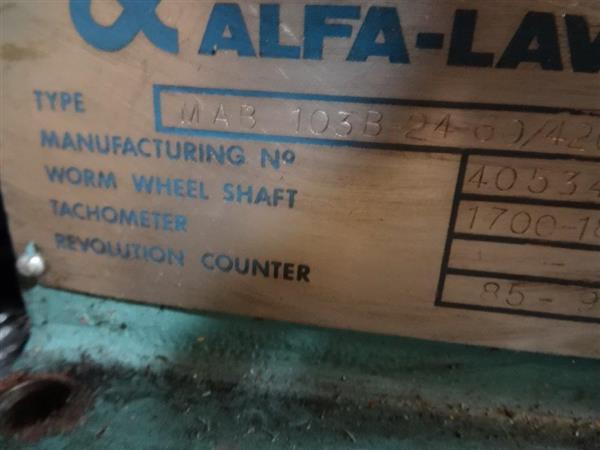

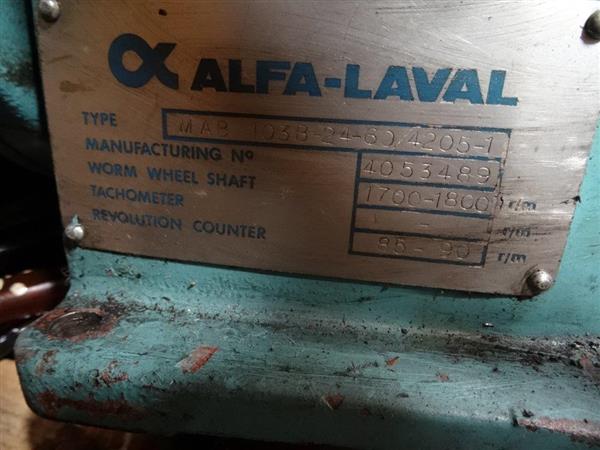

ALFA-LAVAL MAB 103B-24 SOLID BOWL DISC CENTRIFUGE

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


MAB 103B-24
35557
Centrifuges
used
(KG)
0
$0.00

Description

SPECIFICATIONS
Bowl Max. Inner Diameter: 6.25"
Bowl Volume: 0.3 gallons
Bowl Weight: 29 lbs.
Max. Bowl Speed (50 hz / 60 hz): 8571 RPM / 8600 RPM
Max. Motor Shaft Speed (50 hz / 60 hz): 1500 RPM / 1800 RPM
Gear Ratio (50 hz / 60 hz): 40:7 / 43:9
Hydraulic Capacity: 370 GPM
Feed Temperature: 32° F - 212° F
Weight of Separator (without motor): 166 lbs.
Motor Power: 1 HP
Max. Power Consumption: 0.6 kw
Power Consumption (idling / max. capacity): 0.4kw / 0.6kw
Lubricating Oil Volume: 0.18 gallons
Starting Time: 3 Minutes
Stopping Time with Brake (min / max): 2 Minutes / 2.5 Minutes
Max Running Time: 480 Minutes
EQUIPPED WITH
DIMENSIONS AND WEIGHT
Call Perfection Global for Dimensions
0 Lbs
LOCATION AND TERMS
As Is, Where Is
Dubuque, IA
YEAR
N/A
Preliminary Specifications...
