Power On hours ~ 30755 and Beam hours ~ 11030

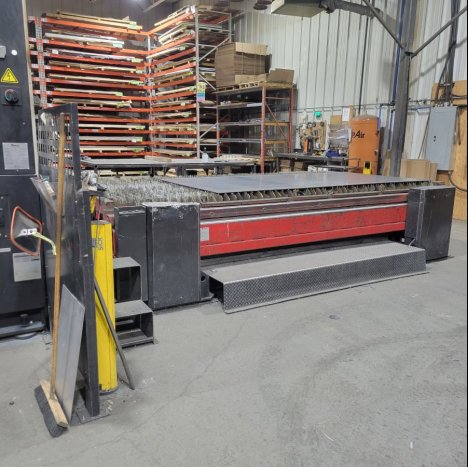

Motion Package Specifications
Maximum Sheet Size (X,Y): 160" x 80"
Maximum Axis Travel (X,Y,Z): 160.23" x 80.70"x 3.93"
Travel Method: Stationary table, X, Y and Z-axis movement for cutting head
Control Method: X, Y and Z simultaneous 3 axis control
Drive Motors: Fanuc AC servo motors
Maximum Axis Positioning Speed (X,Y): 4,724 Inches per minute
Per axis: 6,693 inches per minute 45o vector.
Maximum Speed Z-Axis: 4,724 inches per minute
Repeatability: +/- 0.0002"
Maximum Material Weight: 3500 lbs.
Assist Gas: 4 ports with NC pressure Control
Electrical Requirement: 200V, 3 Phase, 60Hz
Machine Control
Model: AMNC 3i Control
Display: Touchscreen Color LCD
Control function: X,Y,Z Axis simultaneous and focus lens B-axis, and laser
power control (CW, gated, pulse, pierce, routines, etc.)
Data storage: Compact flash drive
Fiber laser Resonator (Engine)
Resonator style: LD excited Yb fiber
CW Output power: 9 KW
Peak Pulse output power: 9 KW
Power stability: +/- 2%
Laser wavelength: 1.08 microns
Laser power mode selection: CW, gated Pulse (CNC controlled)
Laser beam mode output: multi-mode
Beam divergence: < 3mm-mrad
Pulse frequency: 1-10000 Hz
Pulse duty: 0-100%
Interlocks: Electrical, mechanical, chiller
Electrical requirements: 200V, 3-phase, 60Hz, 12kVA max.
