Full Capacity Tonnage: 90 Tons
Maximum Tonnage at Full Speed: 67 Tons
Maximum Speed at Full Tonnage: 60 inches per minute
Clear Distance between the housings: 8 -6 1/2"
Length Nominal: 8
Total Die Surface: 10
Bed Top Width: 3.5"
Closed Height: 7"
Stroke Length: 8"
Open Height: 15"
Throat: 7"
Ram Speeds:
High Approach: 260 IPM
Variable Forming: 1 to 80 IPM
Variable Return: 1 to 280 IPM
Ram Repeatability: 0.0004"
Ram Tilt, total end-to-end: 1"
Electrical: 460/3/60
Motor Horsepower: 15 HP
Base Machine Weight: 15,800 lbs
Equipped With:
CNC 5 Axis Control and Backgauge
6" Increased stroke
Laser Safe IRIS

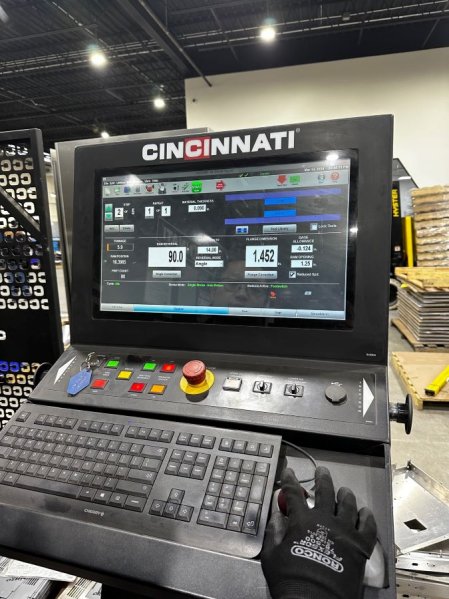

Pedestal Mounted Control (HMI)
Wilson Clamping
Auto Crown
Robot Interface
To view more information on the 90 TON X 10 CINCINNATI 90PF+8, CINCINATI CNC CONTROL,5-AXIS,MFG:2018, OUR STOCK NUMBER: 12657, including reviews, brand information, photos, videos, and more,
