'REFERENCE NUMBER: 14049

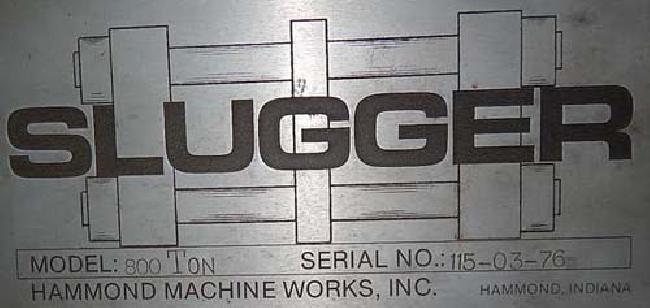

MODEL #: 800 TON
SERIAL #: 115-03-76
YEAR: 1979
CATALOG SPECIFICATIONS:
DUAL TONNAGE CAPABILITY, MAXIMUMS BASED 0N 65 TO 70,000 P,S,I, SHEAR STRENGTH MATERIAL
HIGH CAPACITY- 800 TONS
ROUND 5-1/4″ MAX
SQUARE 4-3/4″ MAX
RECTANGLE 2″ x 6″
15 STROKES /MIN FOR SLUG LENGTH (INCLUDES FEED TIME)
LOW CAPACITY – 400 TONS
ROUND 3-1/4″ MAX
SQUARE 3-1/8″ MAX
RECTANGLE 1-3/4″ MAX
20 STROKES /MIN FOR SLUG LENGTHS (INCLUDES FEED TIME)
EQUIPPED WITH:

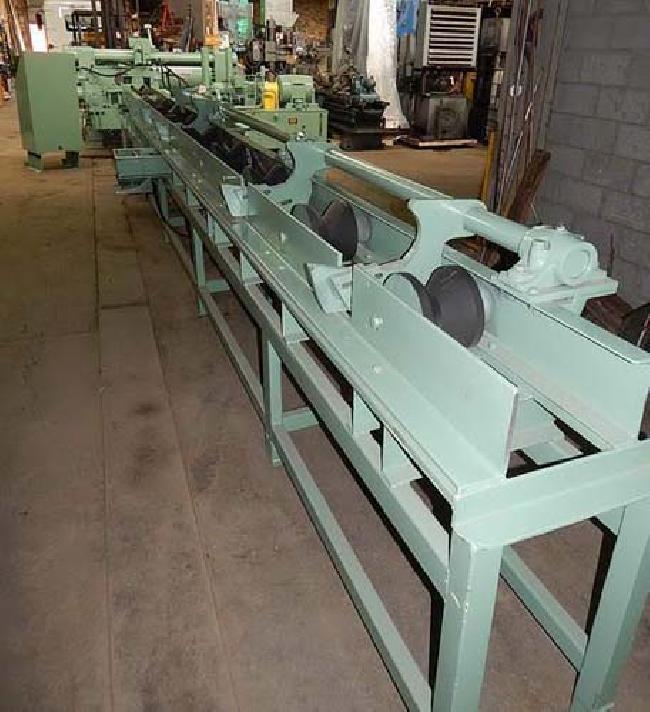

AUTOMATIC BAR LOAD TABLE WITH DRIVEN FEED UP ROLLS
AUTOMATIC HITCH TYPE FEED

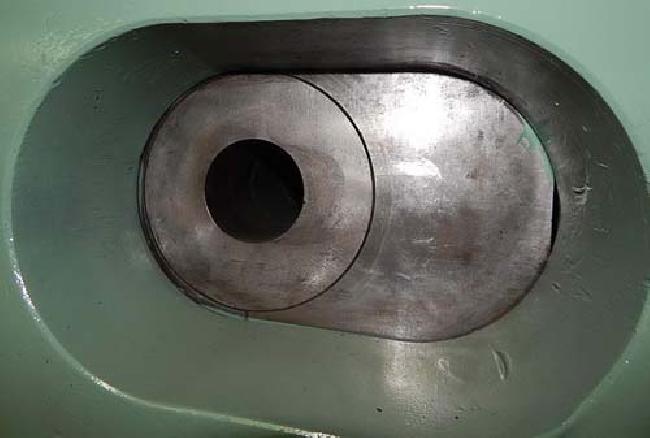

MANY SETS OF DIE CUT OFF SETS INCLUDED

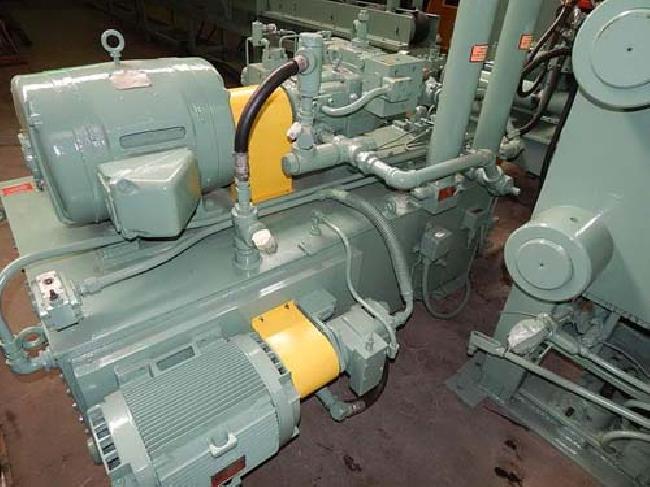

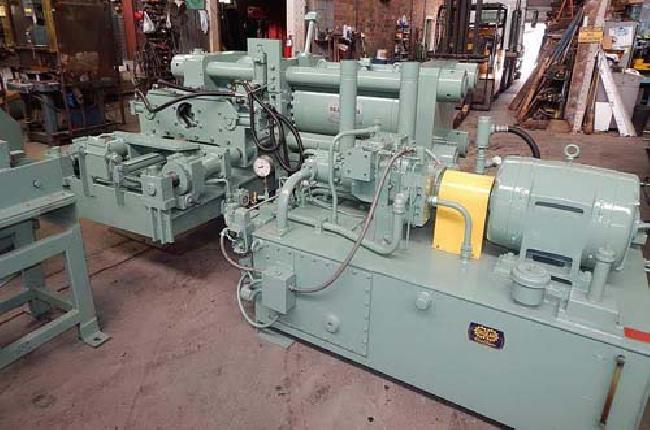

MOTOR: 75 HP, 460/3/60
20 HP 230/460/3/60
* MAIN HYDRAULIC CYLINDER SEALS REPLACED IN 2008
TAKEN DIRECTLY FROM SERVICE

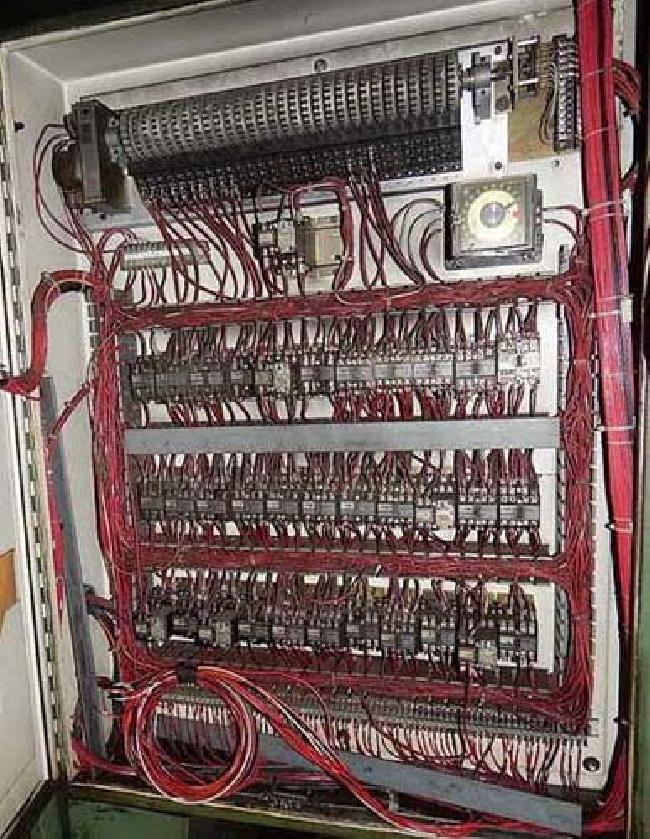

ELECTRICAL AND MECHANICAL PRINTS AVAILABLE
