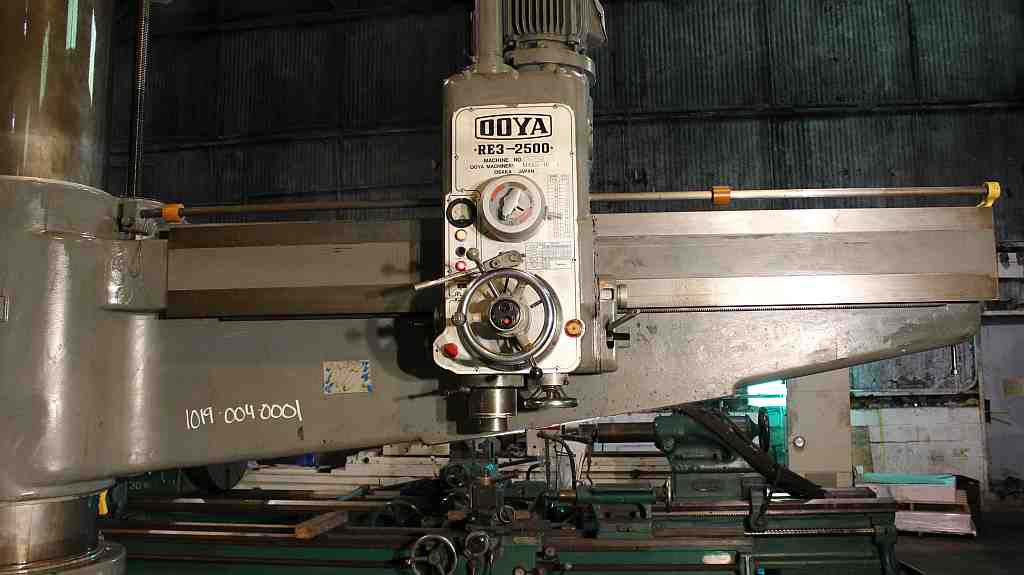

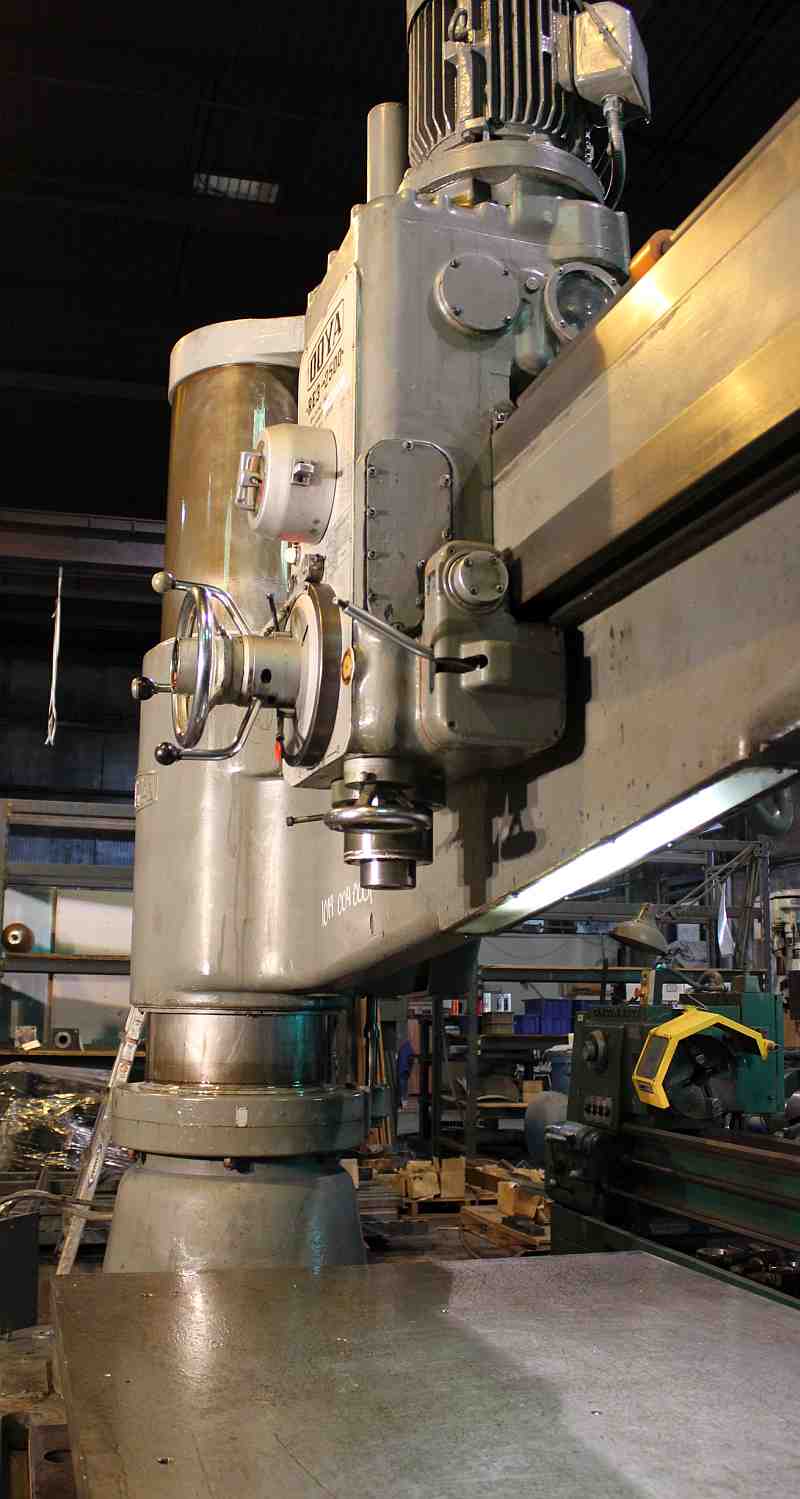

8 X 19", OOYA, 1979, NO.5M.T. SPINDLE, 10H.P. MAIN SPINDLE DRIVE, OUR STOCK NUMBER: 10926

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


NO.5M.T. .
Drills Manual and CNC
Radial Drill
used
20000 (LB)
0
$0.00

Description

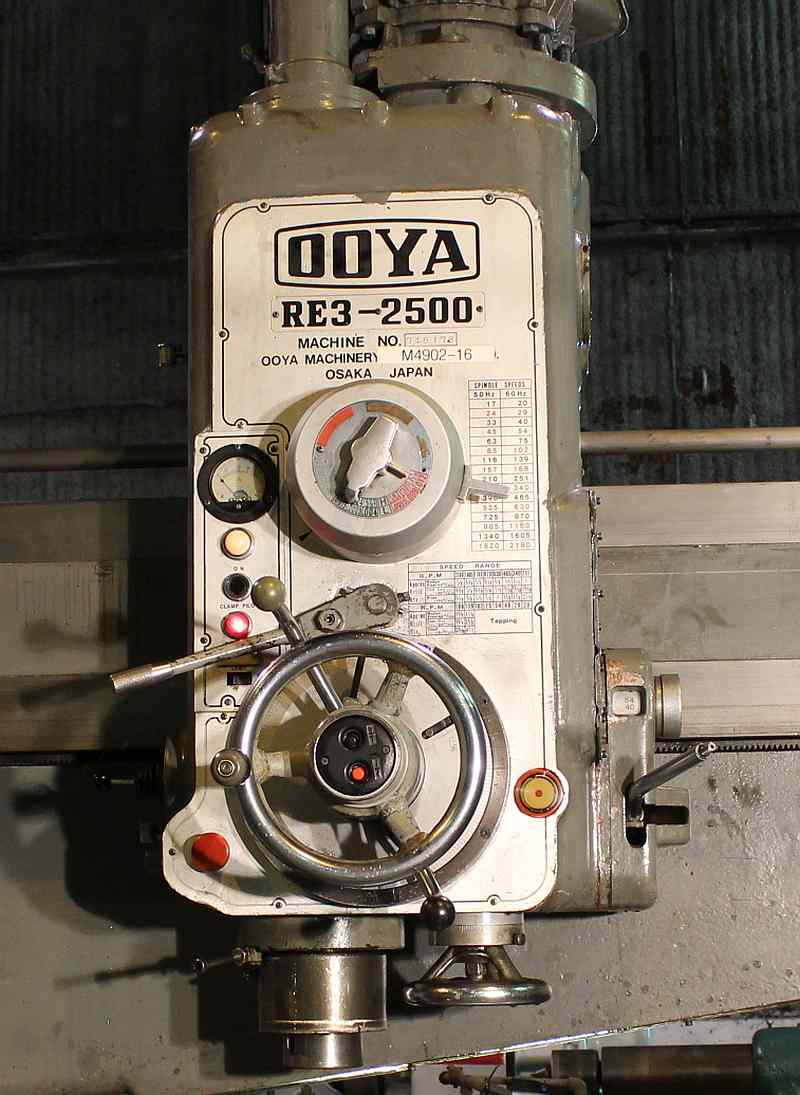

MODEL: RE3-2500
YEAR: 1979

SPECIFICATIONS:

DRILLING CAPACITY ------ ( STEEL ) -------- 3"
DRILLING CAPACITY ------ ( CAST IRON ) ---- 3-5/8"

SPINDLE TAPER------------------------------ #5 M.T.
MAXIMUM DISTANCE COLUMN TO SPINDLE CENTER - 99-1/4"

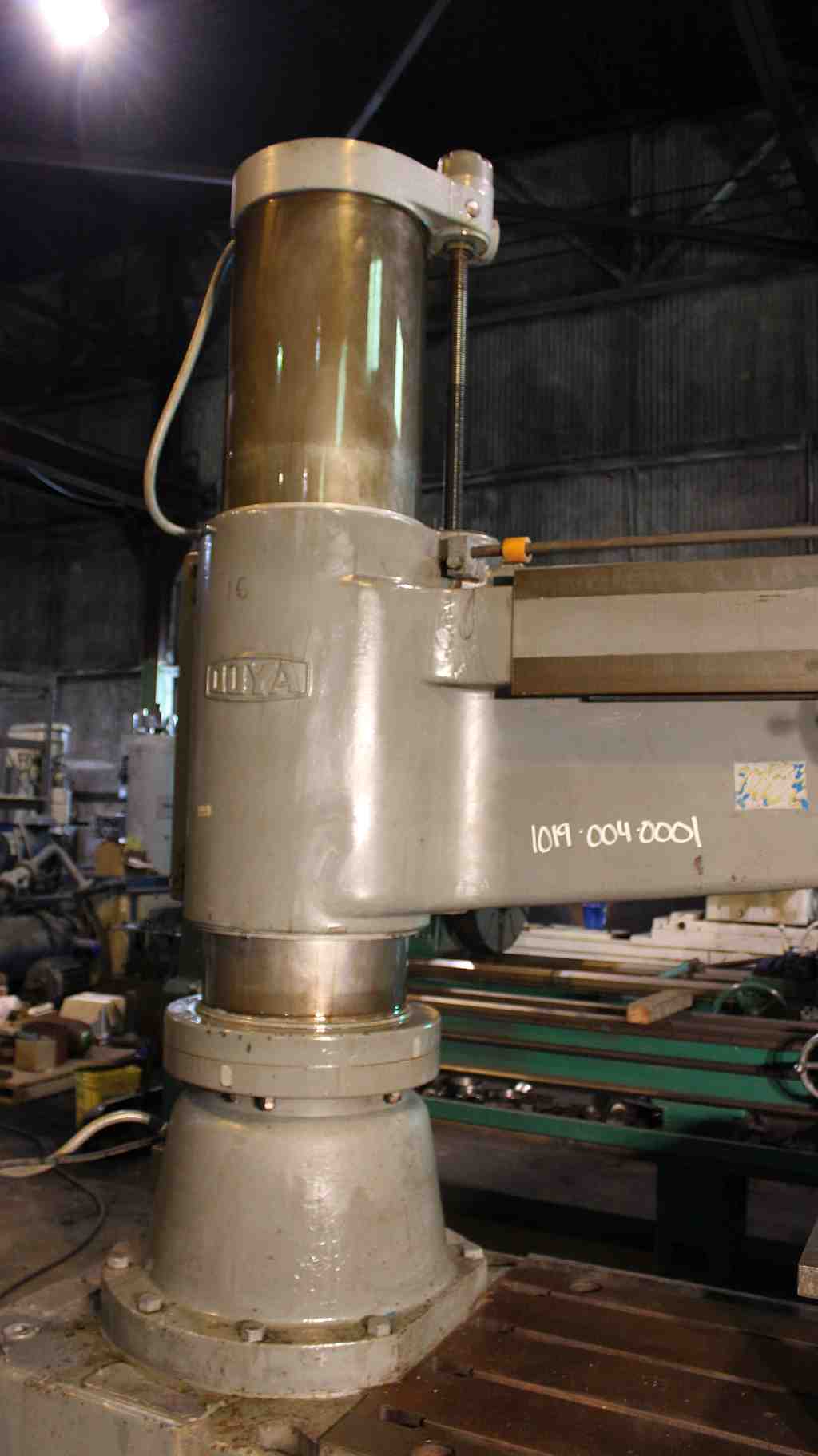

COLUMN DIAMETER---------------------------- 19"
MINIMUM DISTANCE COLUMN TO SPINDLE CENTER - 16-1/2"
MAXIMUM DISTANCE BASE TO SPINDLE ---------- 70-7/8"
MINIMUM DISTANCE BASE TO SPINDLE ---------- 22-1/4"
SPEEDS ------------------ ( 16 ) ---------- 20 to 2180 RPM
FEEDS ---------------- ( 18 )_ ---------- .0015 to .125
MAIN DRIVE MOTOR -------------------------- 10 HP
APPROXIMATE MACHINE WEIGHT ---------------- 20,000 LBS
APPROXIMATE MACHINE DIMENSIONS ------------ 140"(lr) x 52"(fb) x 130"(h)

EQUIPPED WITH:

DRILL/TAP
CLAMPING TO HEAD/COLUMN AND ARM

AUTO LUBRICATION

T-SLOTTED BASE

COOLANT
