72", WEBSTER BENNETT, NO. EV, 1980, "EXTRA-HEIGHT UNDERR RAIL", FULL PENDANT,DRO OUR STOCK NUMBER: 10971

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


EV
Vertical Turret Lathes VTL
Single Turret
used
(LB)
1980
$0.00

Description

MODEL: EV
NEW: 1980

SPECIFICATIONS:

TABLE DIAMETER.......................... 72" 4-JAW
MAX. SWING.............................. 84"
MAX. HEIGHT UNDER RAIL.................. 60" (EXTRA HEIGHT)
MAX. HEIGHT UNDER TURRET FACE........... 71"
VERTICAL RAIL TRAVEL.................... 24"
VERTICAL TURRET TRAVEL.................. 38"
TURRET CROSS TRAVEL..................... 51 1/2"
TABLE SPEEDS (12)....................... 3.8 - 83 RPM
FEEDS (12).............................. 0.008 - 0.375 IPR
MOTOR................................... 40 HP 230/460/3/60

OUTSTANDING FEATURES & EQUIPPMENT LIST:


EXTRA HEIGHT UNDER ELEVATING CROSS RAIL

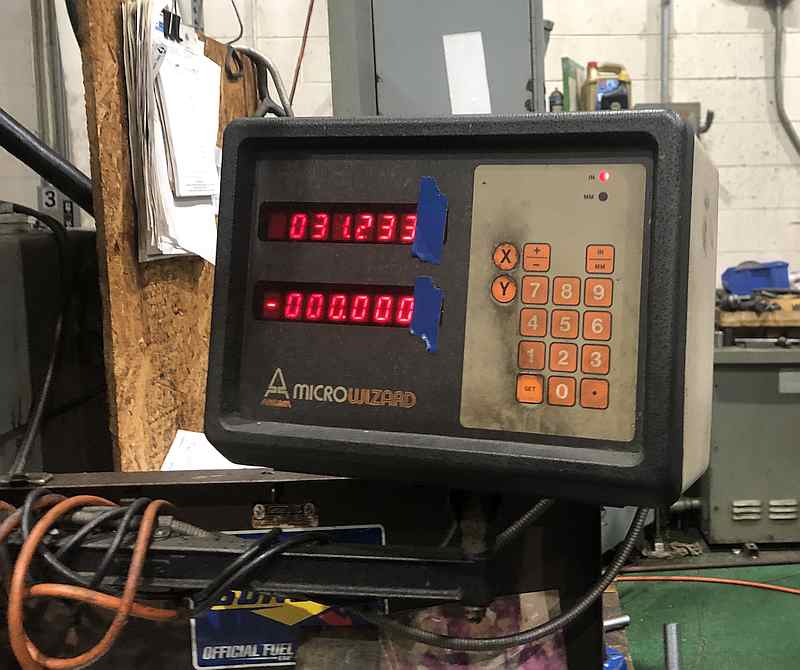

DIGITAL READ OUT SYSTEM
NITROGEN COUNTER BALANCE SYSTEM

4-JAW CHUCK
5- POSITION SWIVEL TURRET HEAD
MISC. TOOLHOLDERS

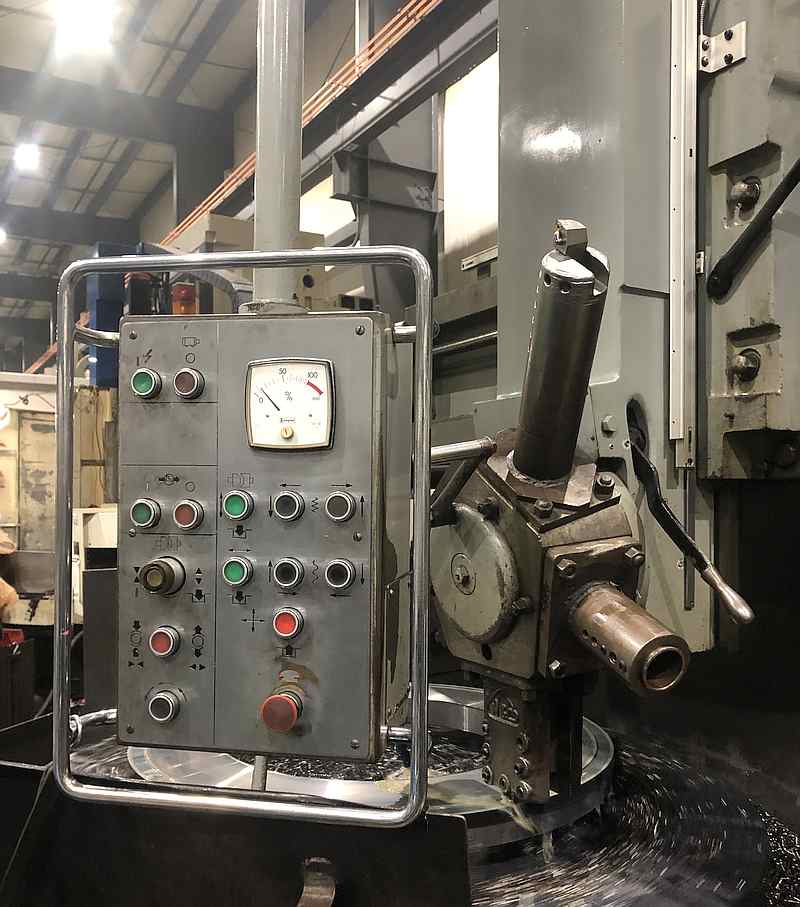

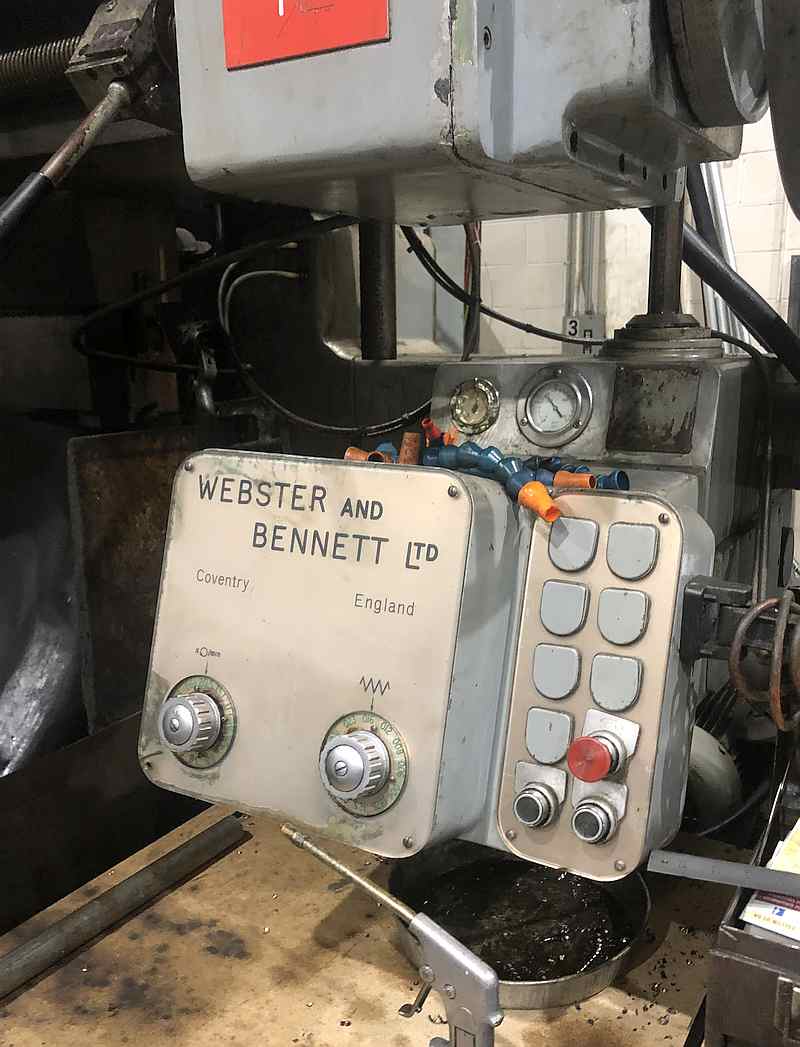

FULL PENDANT CONTROL
RACHET LEVER FINE FEED HANDLES

APPROX. OVERALL DIMENSIONS.............. 122" L-R x 148" F-B x 153" HIGH
APPROX. WEIGHT.......................... 38000 LBS

UNDER POWER FOR INSPECTION BY APPOINTMENT

SPECIFICATIONS SUBJECT TO VERIFICATION
