MODEL: EM
NEW: 1972
SPECIFICATIONS:

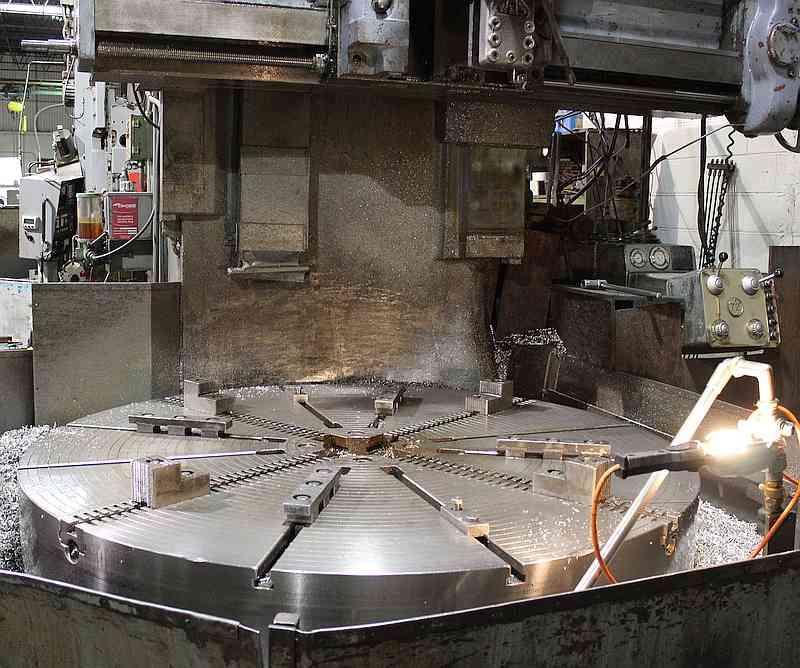

DIAMETER OF CHUCK..................................... 72"
ADMITS IN DIAMETER.................................... 84"
MINIMUM HEIGHT UNDER CROSS RAIL....................... 24"
MAXIMUM HEIGHT UNDER CROSS RAIL....................... 48"
DIAMETER OF SPINDLE BORE.............................. 3 1/4"
DISTANCE FROM CHUCK CENTRE TO JUNCTION FACE........... 30 1/2"
DISTANCE FROM CHUCK CENTRE TO FRONT OF CROSS SLIDE.... 19 1/8"

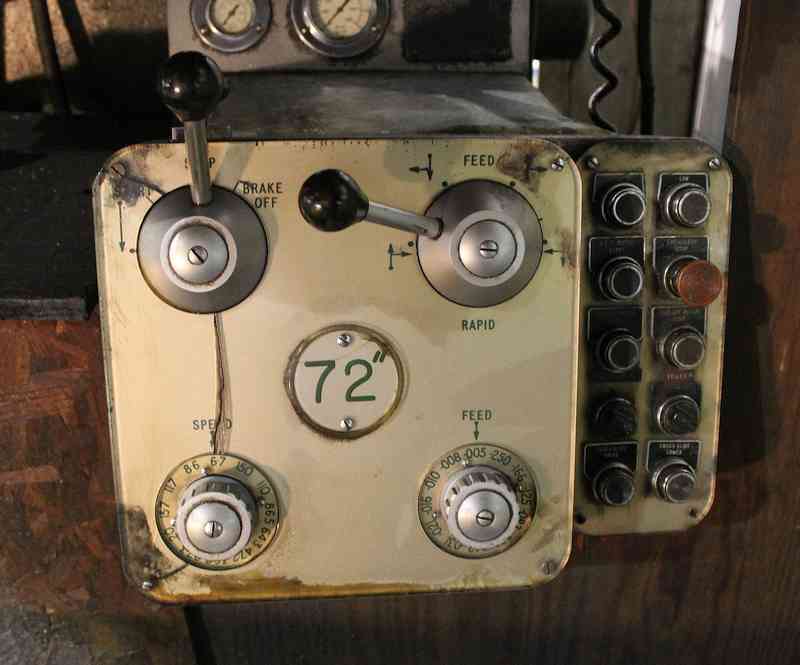

SPINDLE SPEEDS (12)................................... 6.7 - 150 RPM
FEED RANGE (12)....................................... .005 - .250
MAIN MOTOR (HEAVY DUTY) .............................. 40 H.P.
APPROX WEIGHT......................................... 33,750 LBS
TOTAL WORKING HEIGHT REQUIRED......................... 163"
EQUIPPED WITH:

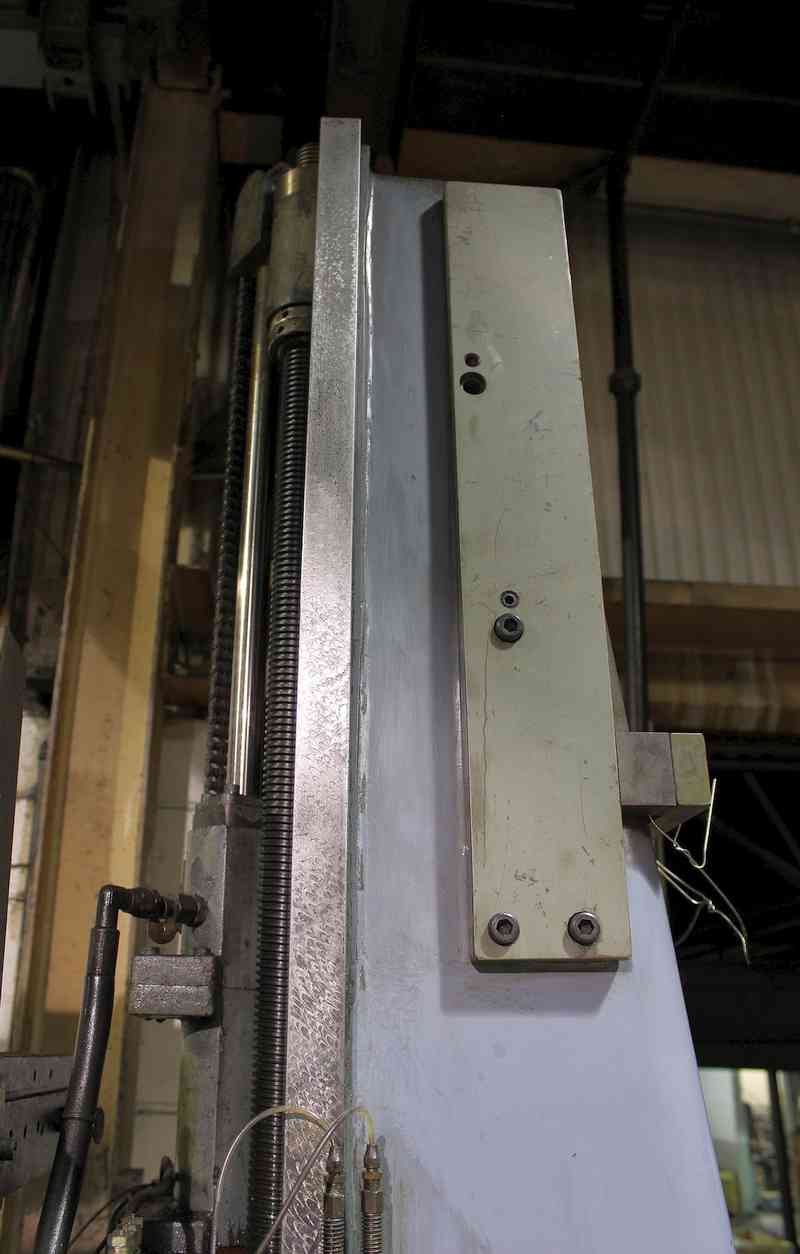

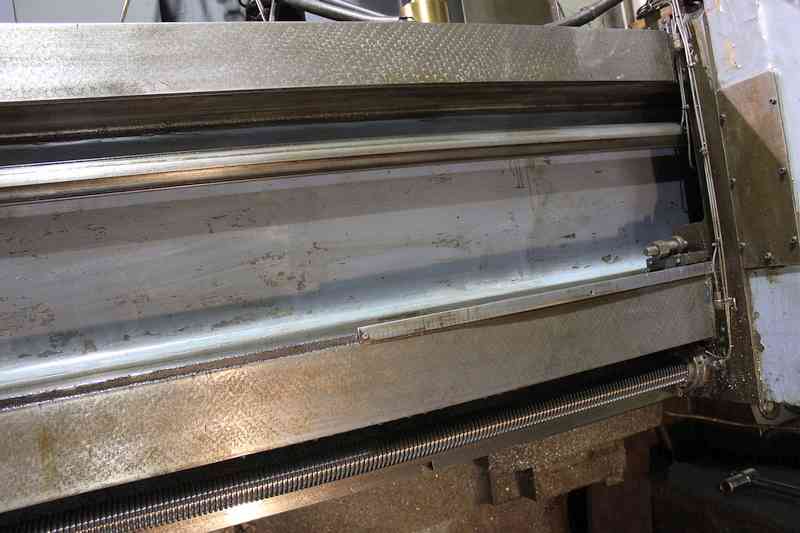

ELEVATING CROSS RAIL

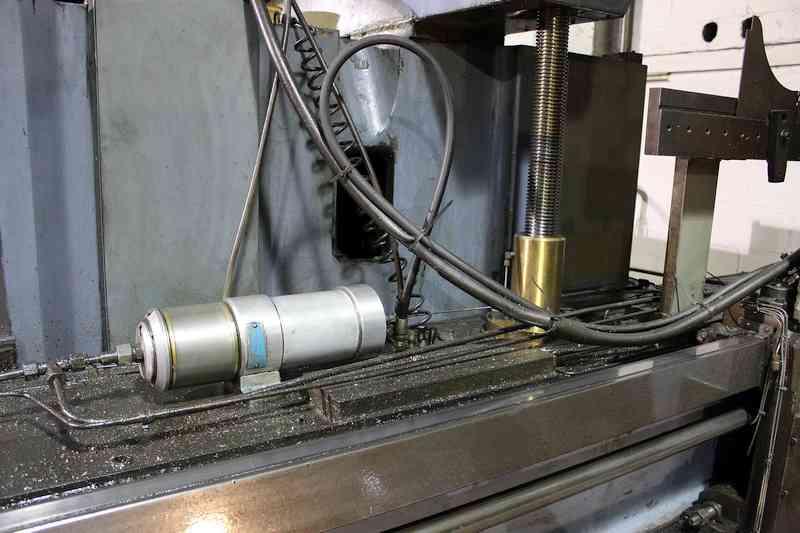

NITROGEN GAS COUNTERBALANCED TURRET SLIDE
FIVE POSITION PENTAGON TURRET
3) LONG FLANGE BOX TYPE TOOL HOLDERS
1) SHORT FLANGE BOX TYPE TOOL HOLDER
1) U TYPE TOOL HOLDER
COOLANT PAN, WITH FULL CHIP GAURDING AND TRAY
COOLANT PUMP & PIPING
EXTERNAL HYDRAULIC MOTOR
SPECIFICATIONS SUBJECT TO VERIFICATION
