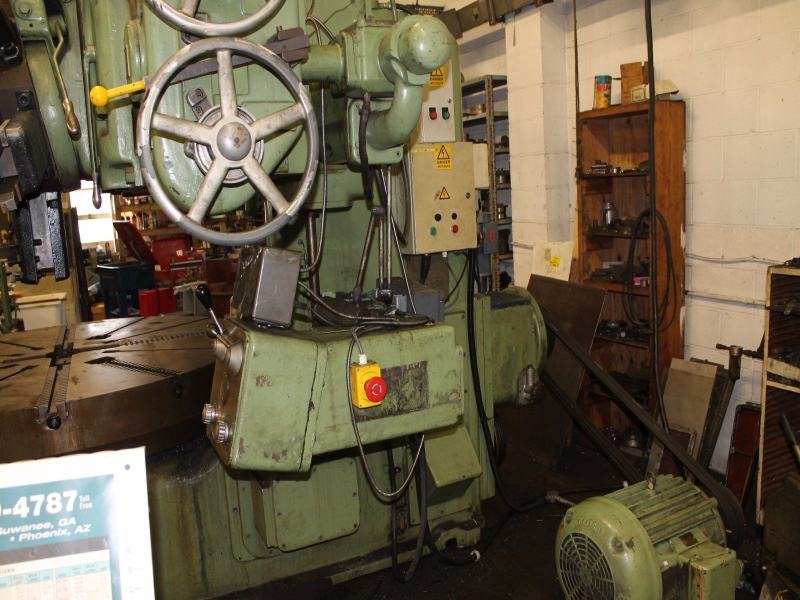

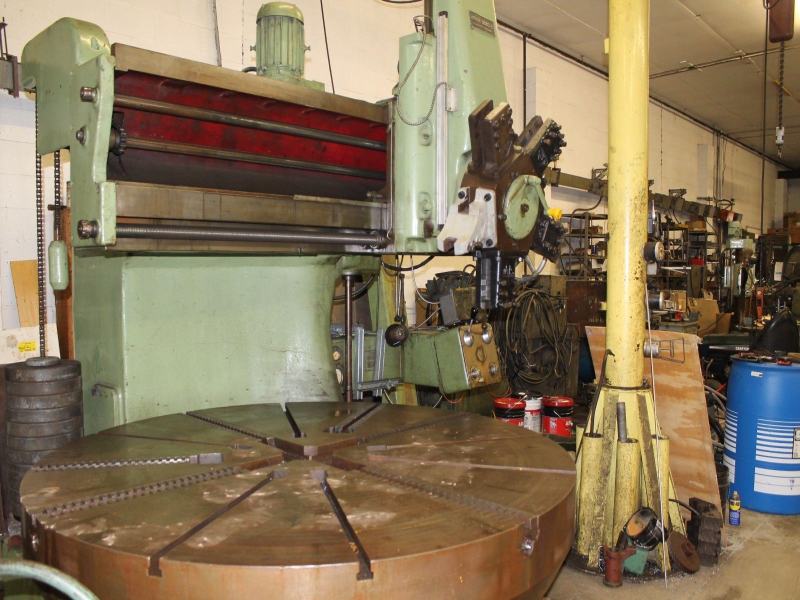

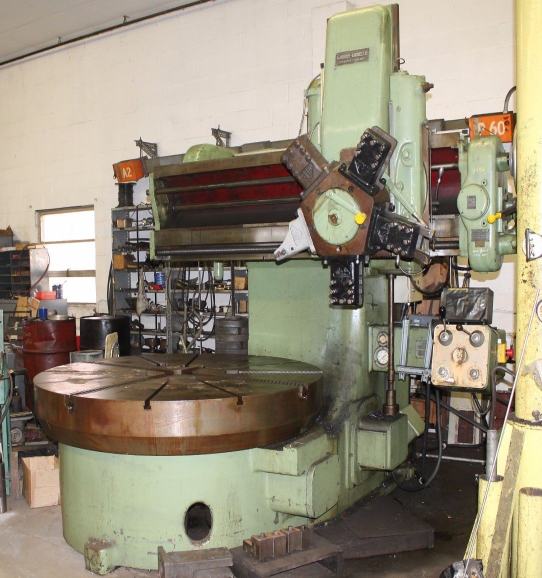

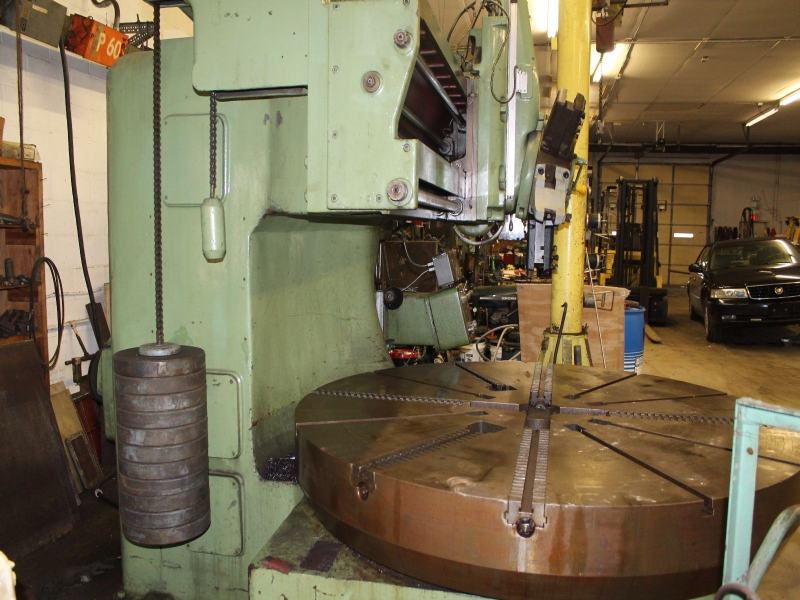

72", WEBSTER BENNETT, NO. DH, FIXED RAIL MACHINE, 24" UNDER RAIL, OUR STOCK NUMBER: 10324.

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


No. DH
Vertical Turret Lathes VTL
Fixed Rail Type
used
22352 (LB)
1958
$0.00

Description

MODEL: DH
NEW: 1958

SPECIFICATIONS:
DIAMETER OF CHUCK................................ 72"
ADMITS IN DIAMETER............................... 76"
ADMITS IN HEIGHT UNDER TURRET.................... 35"
ADMITS IN HEIGHT UNDER CROSS SLIDE............... 24"
DIAMETER OF SPINDLE BORE......................... 3 1/4"
DISTANCE FROM CHUCK CENTRE TO JUNCTION FACE...... 36 1/2"
DISTANCE, CHUCK CENTRE TO FRONT OF CROSS SLIDE... 21 1/8"
SPINDLE SPEEDS (12).............................. 83 - 125 RPM
MAIN MOTOR....................................... 20 HP
APPROX. WEIGHT................................... 22,352 LBS
APPROX. DIMENSIONS............................... 103" X 130"
TOTAL HEIGHT REQUIRED............................ 119"

EQUIPPED WITH:
(5) TOOLHOLDERS
72" COMBINATION 3 & 4JAW CHUCK
DIGITAL READOUT SYSTEM

SPECIFICATIONS SUBJECT TO VERIFICATION
