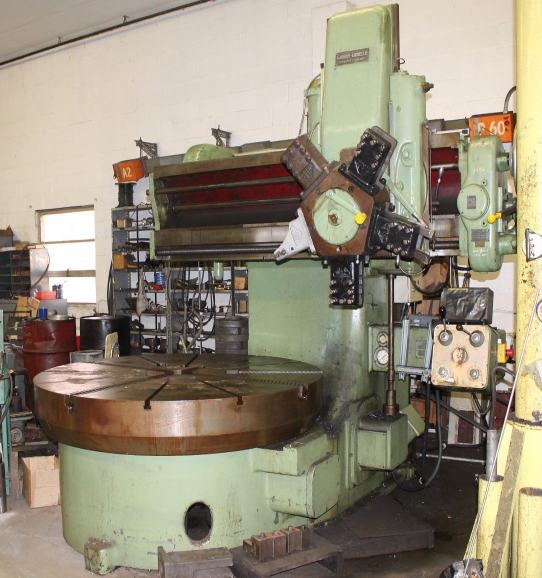

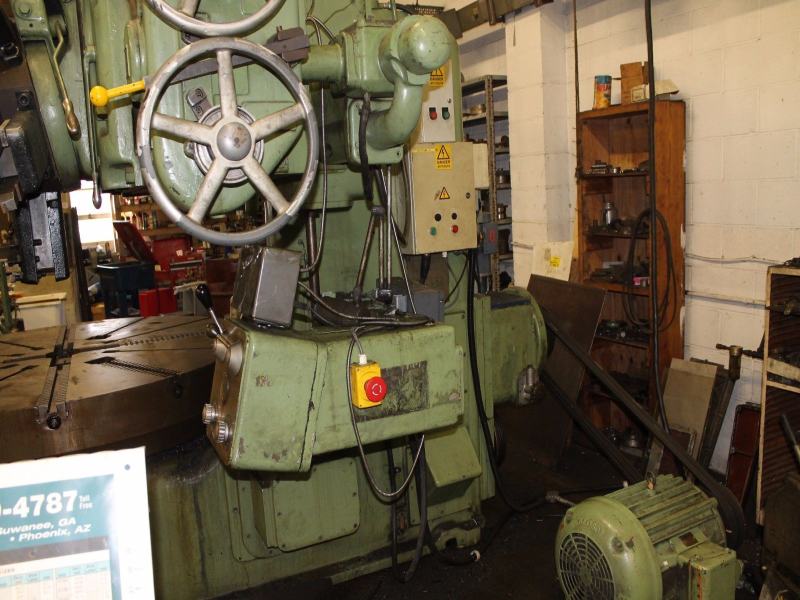

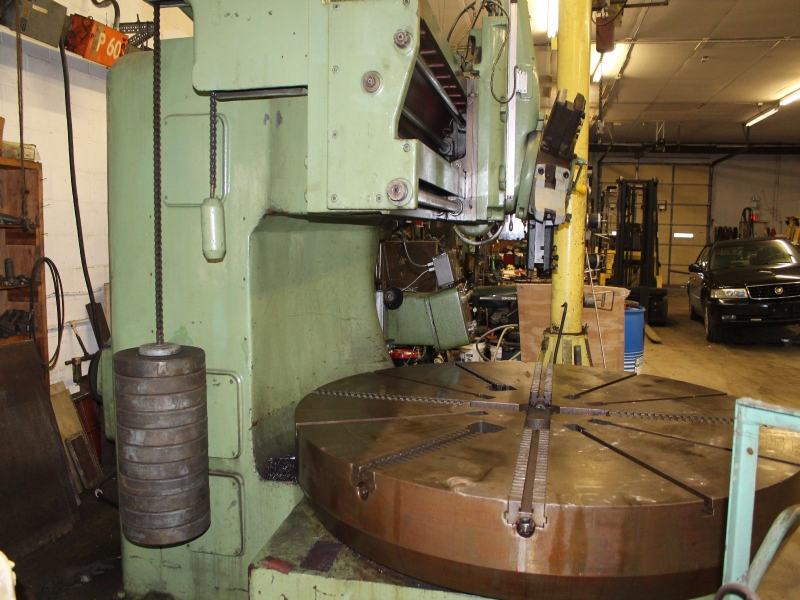

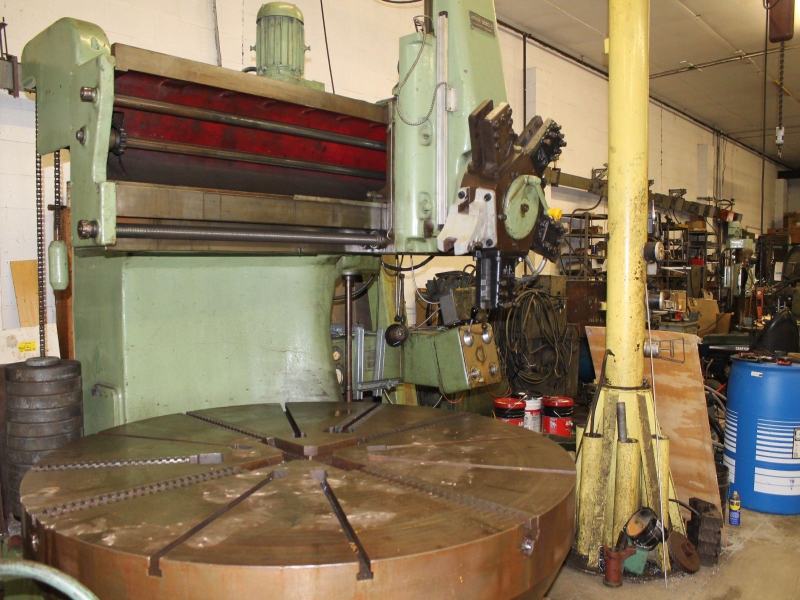

MODEL: DH
NEW: 1958
SPECIFICATIONS:
DIAMETER OF CHUCK................................ 72"
ADMITS IN DIAMETER............................... 76"
ADMITS IN HEIGHT UNDER TURRET.................... 35"
ADMITS IN HEIGHT UNDER CROSS SLIDE............... 24"
DIAMETER OF SPINDLE BORE......................... 3 1/4"
DISTANCE FROM CHUCK CENTRE TO JUNCTION FACE...... 36 1/2"
DISTANCE, CHUCK CENTRE TO FRONT OF CROSS SLIDE... 21 1/8"
SPINDLE SPEEDS (12).............................. 83 - 125 RPM
MAIN MOTOR....................................... 20 HP
APPROX. WEIGHT................................... 22,352 LBS
APPROX. DIMENSIONS............................... 103" X 130"
TOTAL HEIGHT REQUIRED............................ 119"
EQUIPPED WITH:
(5) TOOLHOLDERS
72" COMBINATION 3 & 4JAW CHUCK
DIGITAL READOUT SYSTEM
SPECIFICATIONS SUBJECT TO VERIFICATION
To view more information on the 72", WEBSTER BENNETT, NO. DH, FIXED RAIL MACHINE, 24" UNDER RAIL, OUR STOCK NUMBER: 10324, including reviews, brand information, photos, videos, and more,
Fill in the form below to see Seller Info.
MODEL: DH
NEW: 1958
SPECIFICATIONS:
DIAMETER OF CHUCK................................ 72"
ADMITS IN DIAMETER............................... 76"
ADMITS IN HEIGHT UNDER TURRET.................... 35"
ADMITS IN HEIGHT UNDER CROSS SLIDE............... 24"
DIAMETER OF SPINDLE BORE......................... 3 1/4"
DISTANCE FROM CHUCK CENTRE TO JUNCTION FACE...... 36 1/2"
DISTANCE, CHUCK CENTRE TO FRONT OF CROSS SLIDE... 21 1/8"
SPINDLE SPEEDS (12).............................. 83 - 125 RPM
MAIN MOTOR....................................... 20 HP
APPROX. WEIGHT................................... 22,352 LBS
APPROX. DIMENSIONS............................... 103" X 130"
TOTAL HEIGHT REQUIRED............................ 119"
EQUIPPED WITH:
(5) TOOLHOLDERS
72" COMBINATION 3 & 4JAW CHUCK
DIGITAL READOUT SYSTEM
SPECIFICATIONS SUBJECT TO VERIFICATION
To view more information on the 72", WEBSTER BENNETT, NO. DH, FIXED RAIL MACHINE, 24" UNDER RAIL, OUR STOCK NUMBER: 10324., including reviews, brand information, photos, videos, and more,
Fill in the form below to see Seller Info.
