Specifications:
Machine structure: Flying optics
Maximum workpiece dimensions: 60.030" x 120.078"
Maximum workpiece weight: 2,050 lbs.
Machine travels
X-axis: 122.5"
Y-axis: 62.20"
Z-axis: 4.33"
Work table height: 35.43"
Maximum material thickness
Mild steel: 1.00"
Stainless steel: 1.00"
Aluminum: 0.750"
Motion drive system design
X, Y Axis: Rack and Pinion drive
Z Axis: Ball screw drive
Number of control axes: 3
Rapid travel speed
X, Y Axis: 4,724 Inches per minute
Positioning accuracy:
X,Y Axis: 0.0002 inch/19.68 inch
Z Axis: 0.0004 inch/3.94 inch
Repeatable Accuracy
X, Y Axis: 0.0012"
Maximum processing feedrate
X, Y axis: 2,362 IPM

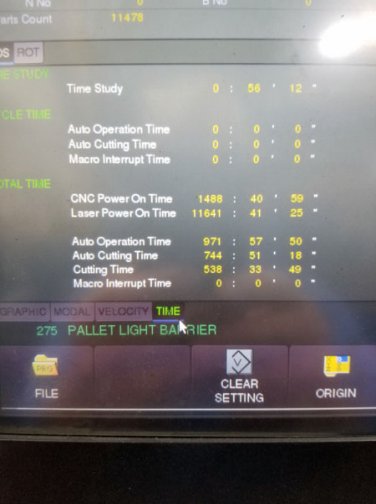

CNC type: MAZATROL Preview 3
CPU: 64 bit
Display screen: 15" Color LCD
Memory capacity: 16 GB (Program memory capacity: 1 GB)
Position detection system: Encoder
Minimum command unit: 0.0001"
Program input system: EIA/ISO
Equipped with:
Work Piece Lifters (Ball Transfers)
Upgrade Package to purge Cutting Head With Nitrogen
Auto Nozzle changer

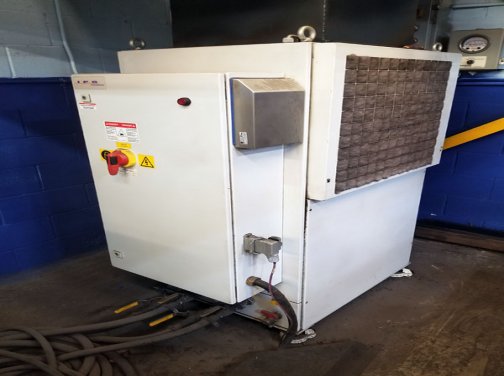

6000 watt IPG Fiber laser source
To view more information on the 6000 WATT MAZAK OPTIPLEX II 3015 FIBER LASER W/PREVIEW III,MFG:2016 OUR STOCK NUMBER: 11804, including reviews, brand information, photos, videos, and more,
