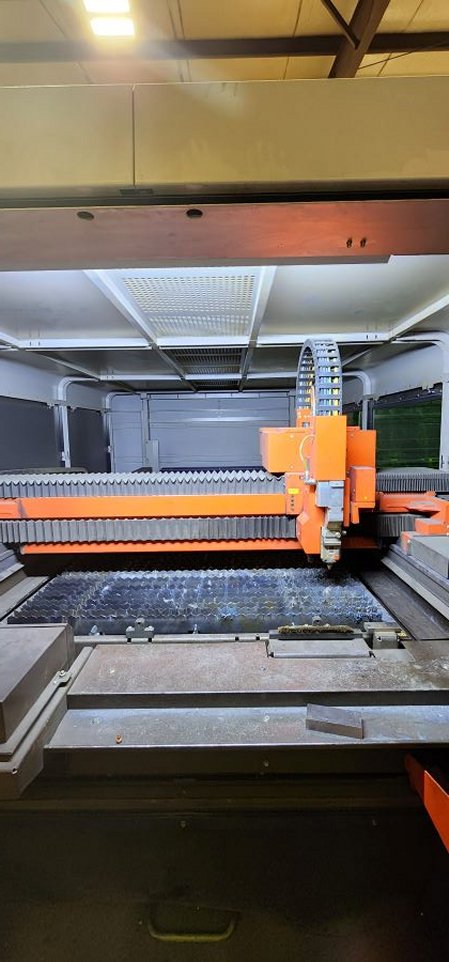

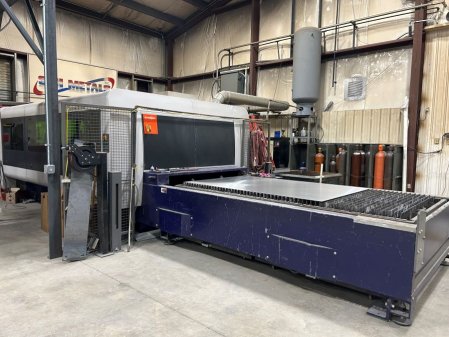

6000 WATT BYSTRONIC BYSPRINT 3015 FIBER LASER,MFG:2015, OUR STOCK NUMBER: 12773

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


BYSPRINT 3015
156012
Lasers
Fiber Laser
used
5732 (LB)
2015
$0.00

Description

Machine Specifications:
Construction length: 434"
Construction width: 238"
Construction height: 101"
Maximum workpiece weight: 1962 lbs.
Machine weight (Without exhaust, chiller): 26455 lbs.

Speeds:
Maximum positioning speed parallel axis X/Y: 3937 inches per minute
Maximum positioning speed simultaneous: 5511 inches per minute
Table changeover time: 35 seconds

Accuracy
Repeatability (positioning spread) Ps (VDI/DGQ 3441): +/- 0.002"
Maximum axis acceleration: 472 inchers per second squared
Positioning accuracy Pa (VDI/DGQ 3441): +/- 0.004"
Edge detection accuracy: +/- 0.02

Cutting Capacity:
Nominal sheet size (X): 120"
Nominal sheet size (Y): 60"
Cutting area (X): 120"
Cutting area (Y): 60"
Cutting area (Z): 2,75"

Resonator

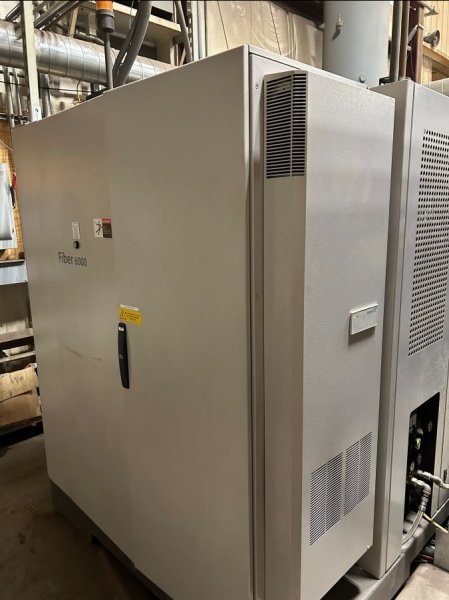

Laser source: Fiber 6000
Pulse frequency: 1-2500 Hz
Power: 6000 watts
Wavelength: 1070 nm
Steel (Max. cutting sheet thickness): 0.750/1.0000"
Stainless Steel (Max. cutting sheet thickness): 0.600/1.250"
Aluminum: 0.600/1.250"
Brass (Max. sheet thickness): 0.450/0.625"
Copper (Max. sheet thickness): 0.450/0.625"
Total electric consumption of system (exhaust, chiller): 31 kW
