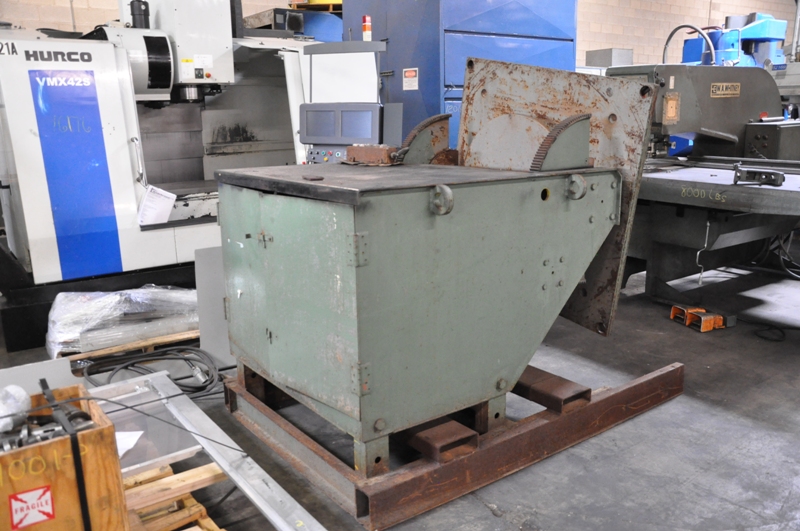

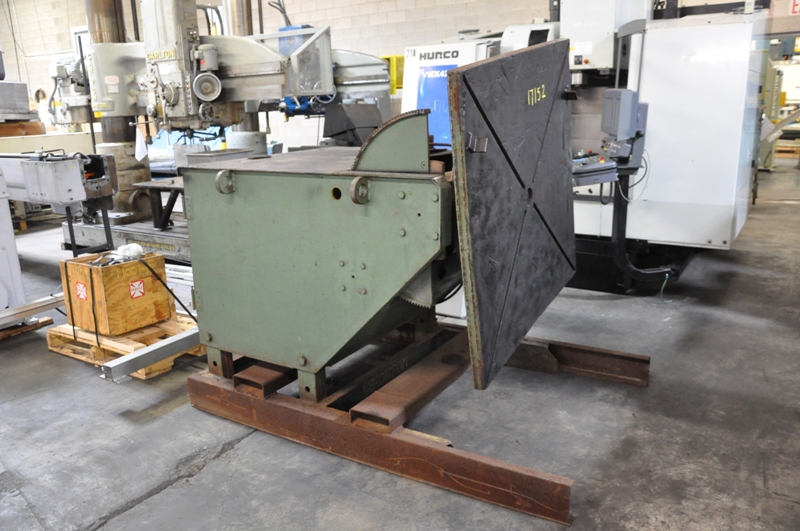

6000 LB. ARONSON WELDING POSITIONER
PRICE: Loaded on Truck, Our Warehouse, York, PA ………… $12,500.00
HMC Stock No. 17152
Machine Serial No. 60108
Machine Model No. HD60
New Date: 1960

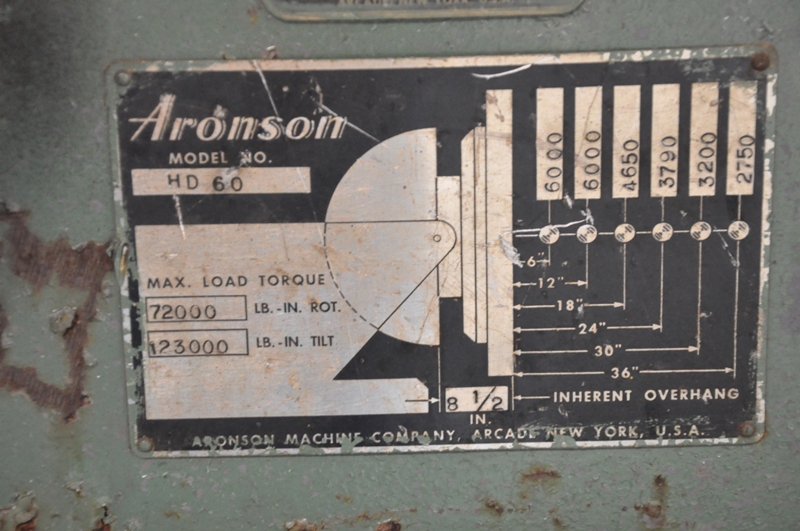

Rated Capacity Out From Face of Table in Vertical Position
6000 Lbs. @ 6" From Face of Table
6000 Lbs. @ 12" From Face of Table
4650 Lbs. @ 18" From Face of Table
3790 Lbs. @ 24" From Face of Table
3200 Lbs. @ 30" From Face of Table
2750 Lbs. @ 36" From Face of Table
Max. Load Torque: 72,000 Lbs.-In. Rotation
Max. Load Torque: 12,300 Lbs.-In. Tilt
Inherent Overhang of Table 8-1/2"
Table Size: 48" x 48" with (4) 13/16" Radial Tee Slots
Table Rotation Speed: Variable Rate, 0 to 1 Full
Revolution in 40 Seconds at Top Speed
Power Table Tilting
Manual Height Adjustment of Unit
Center of Table to Floor: 36" to 60"
Vertical Table Positioning in 6" Increments
Hand Held Pendant Control
? HP Table Rotation Motor
? HP Table Tilt Motor
Wired for 3 Phase, 60 Hz, AC Volts
Overall Size: 77" F-B x 55" L-R x 69" High
