60 TON ROUSSELLE OBI PUNCH PRESS

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


6
22783
Presses & Accessories
PRESSES, OBI, FLYWHEEL, SINGLE CRANK
used
6200 (LB)
1976
$22,500.00

Description

Description & Specifications

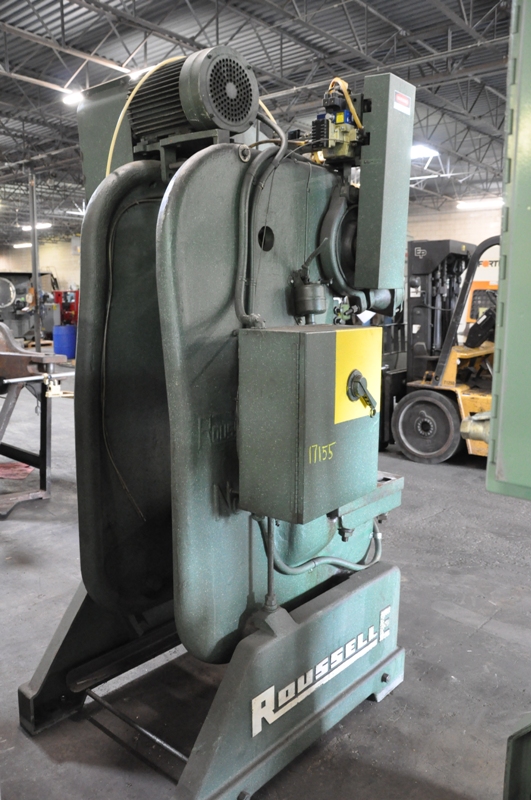

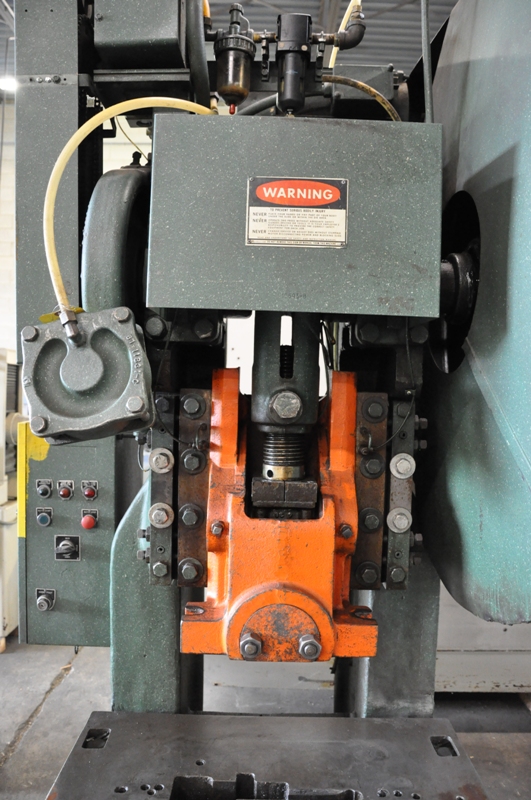

60 TON ROUSSELLE OBI PUNCH PRESS

PRICE: Loaded on Truck, Our Warehouse, York, PA ………… $22,500.00

HMC Stock No. 17155
Machine Serial No. 22783
Machine Model No. #6
New Date: 1976

Rated Capacity: 60 Ton
Ram Stroke: 3"
Single Ram Speed: 110 SPM
Bed Size: 29-7/8" x 16-7/8"
Opening in Bed: 10" x 16" Rectangular / 12" Round
Ram Face Size: 12-1/4" x 7-1/4"
Manual Ram Adjustment: 2-1/2"
Shut Height: 12-1/2" SDAU to Ram Face

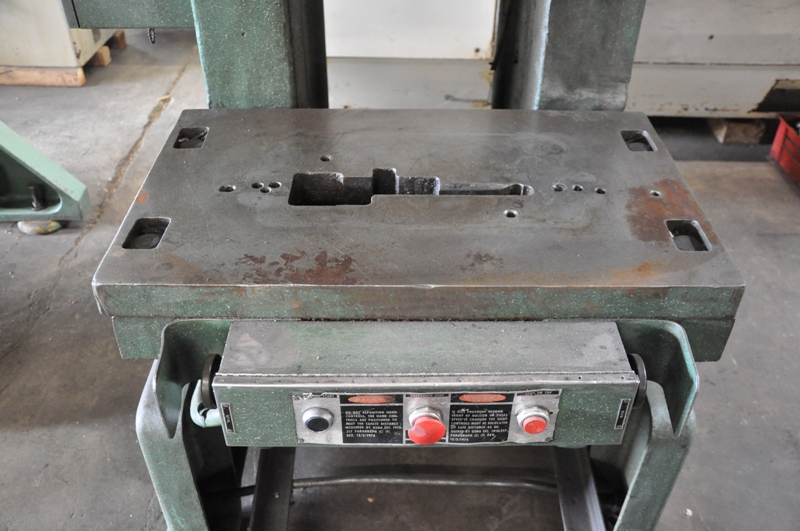

Bolster Plate Size: 30-1/4" x 18-1/4" x 2" Thick
Center of Ram to Press Frame (Throat): 10-3/4"
Distance Between Frames: 16"

EQUIPPED WITH:
Air Clutch and Brake
Bolster Plate
Press Cycles: Inch, Single Stroke & Continuous Stroke
Top Stop Control

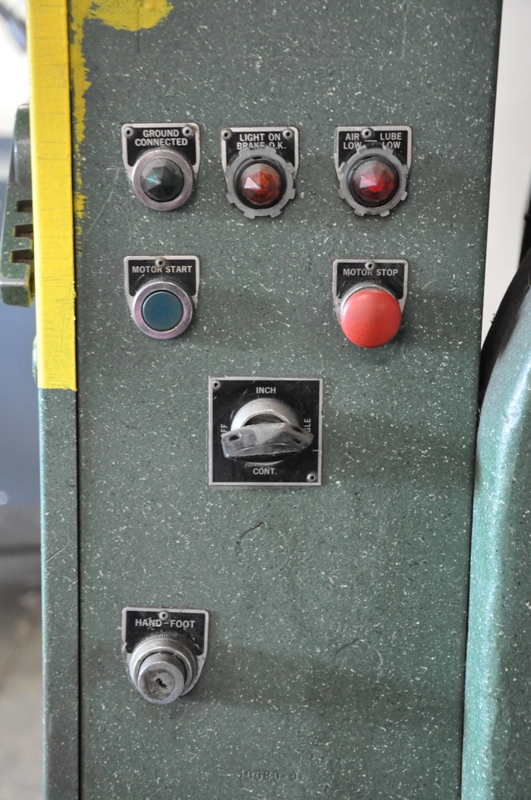

Dual Palm Buttons with Emergency Stop Button
Selector Switch for Palm Buttons or Foot Pedal Operation
NO Foot Pedal Supplied
Central One Shot Lubrication System
Press Inclining Screws

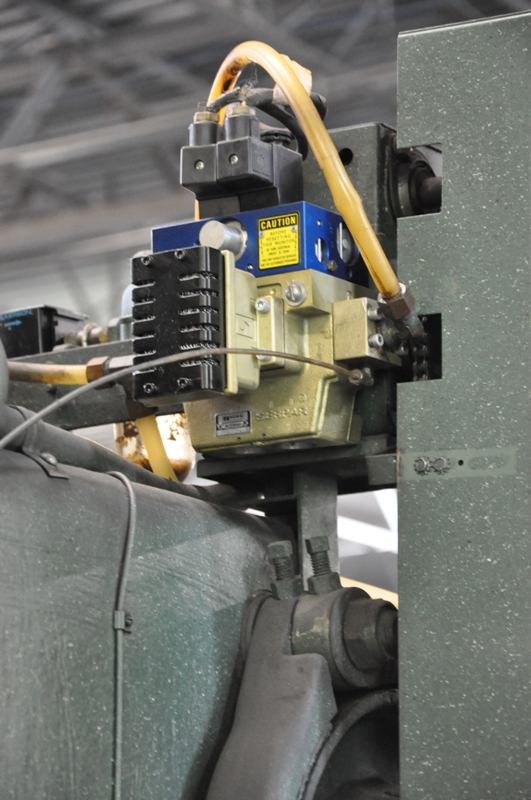

SerPar Air Valve with Air Regulator Filter Bowl and Lubricator Bowl
5 HP Motor, Wired for 3 Phase, 60 Hz, 230/460 Volts
Presently Wired for 230 Volts
Overall Size: 48" L-R x 63" F-B x 93" High x 6,200 Lbs.
