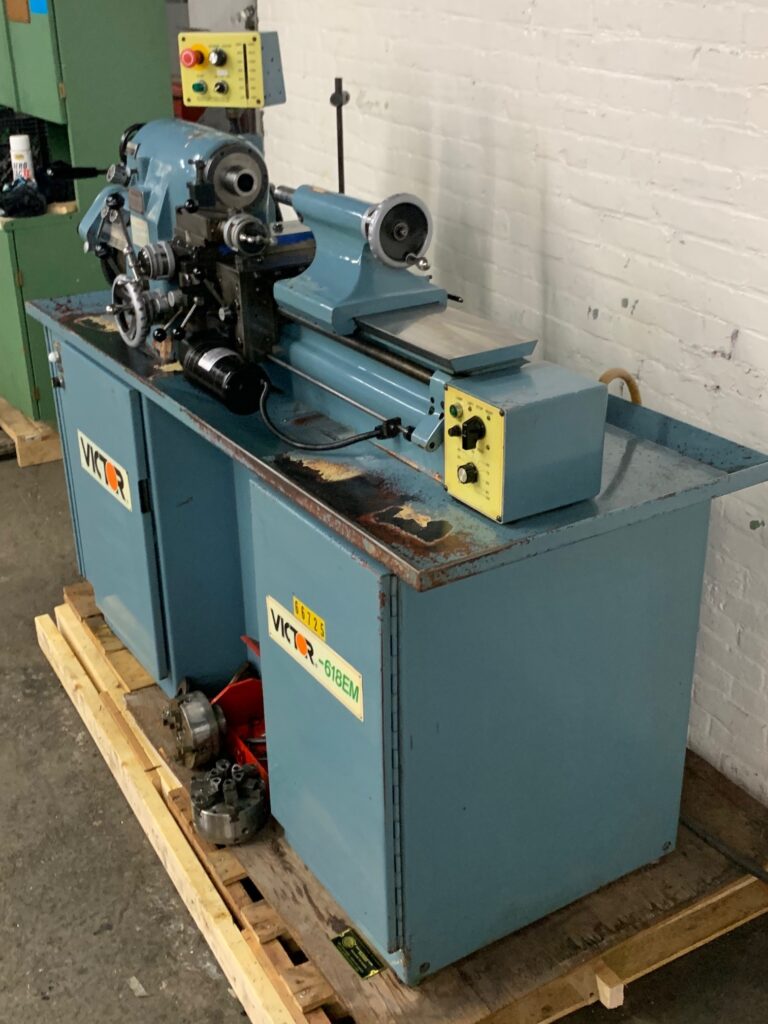

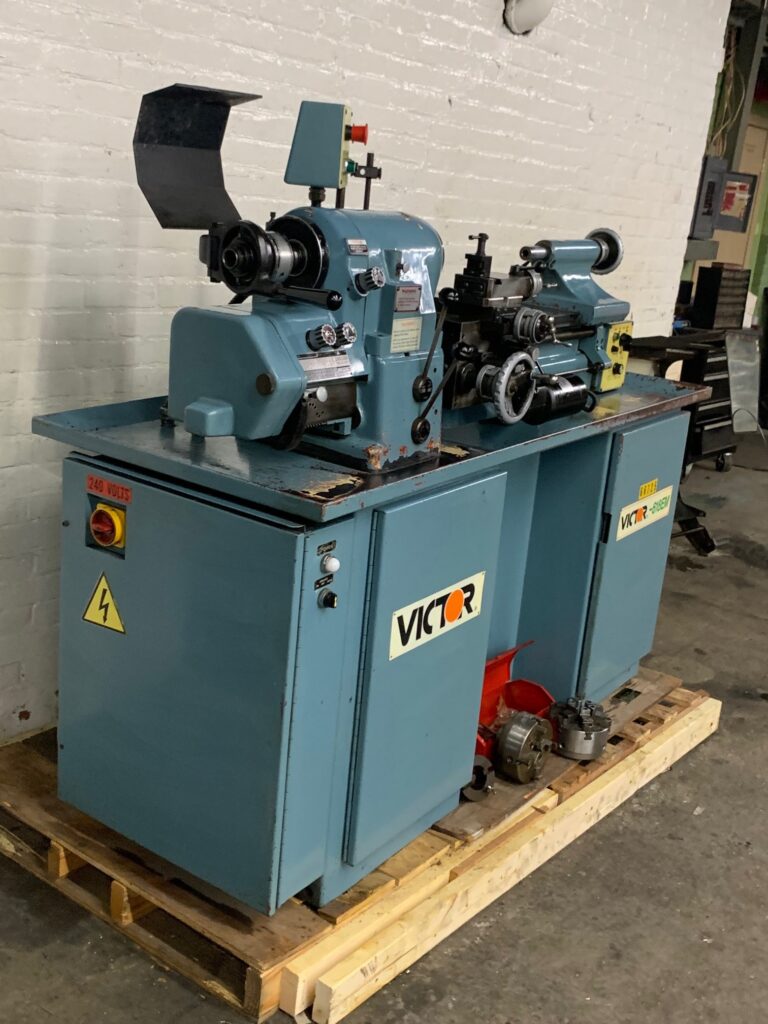

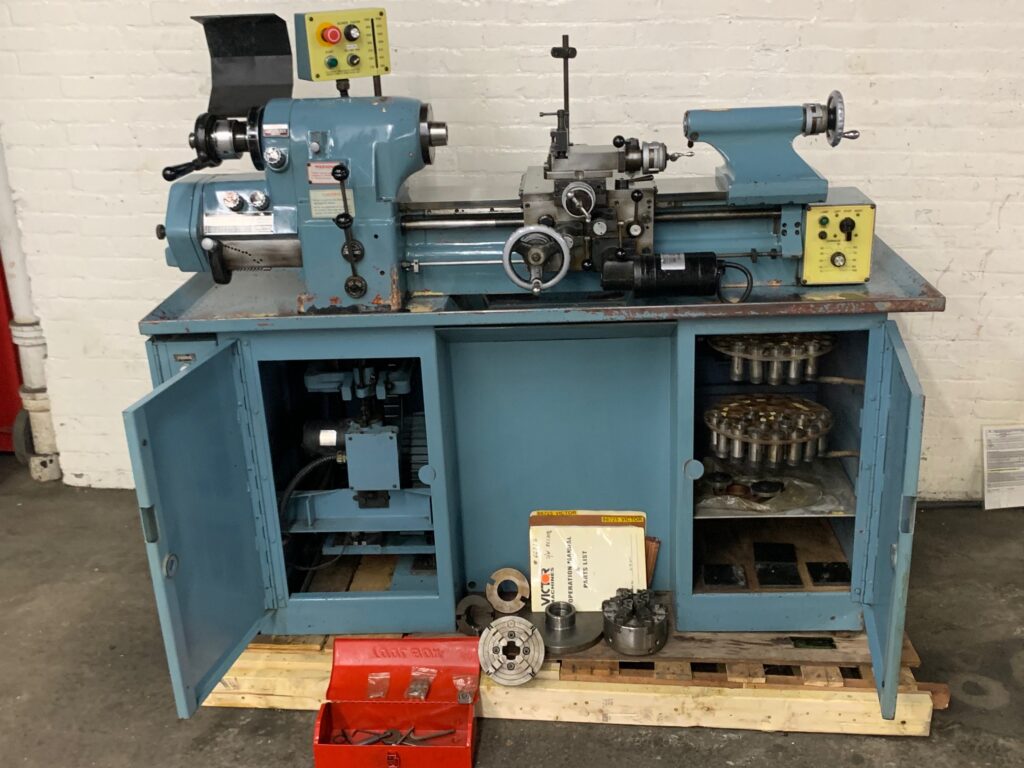

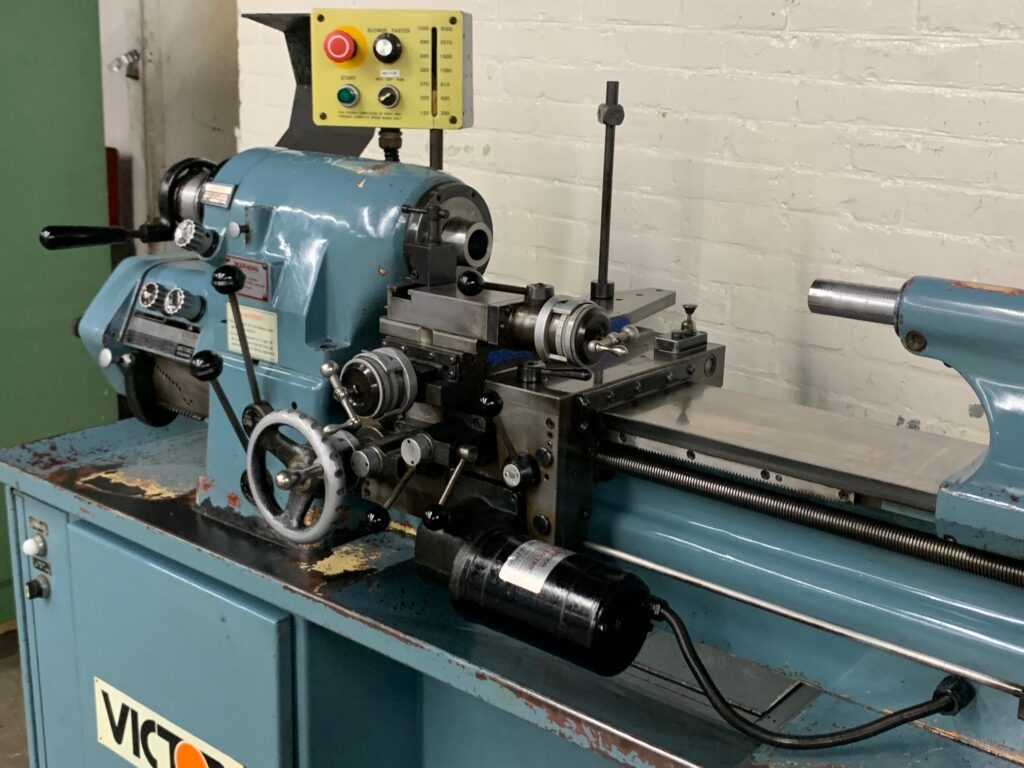

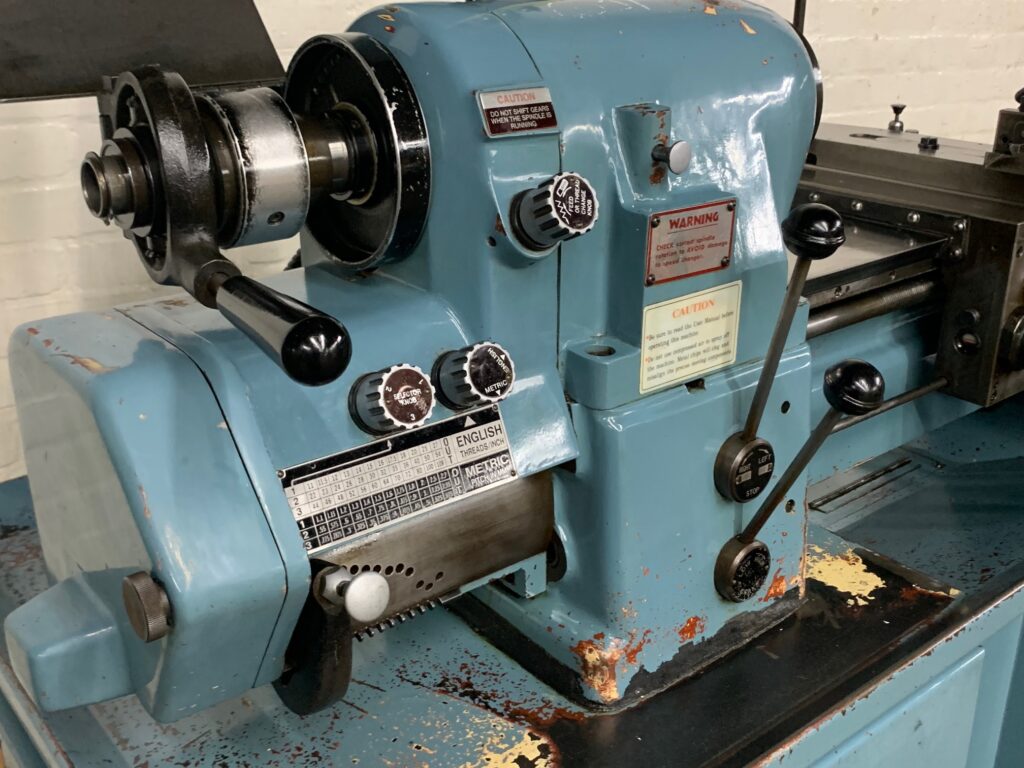

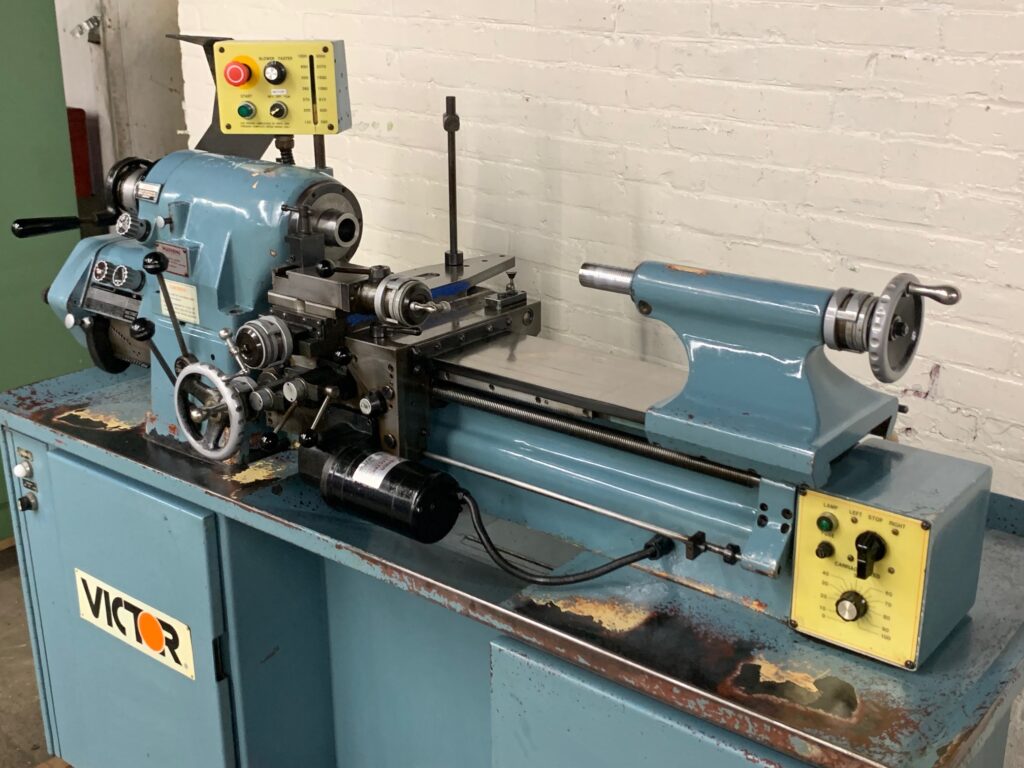

5946-440 VICTOR (HARDINGE HLVH-EM TYPE) 11″ X 18″ PRECISION INCH/METRIC TOOLROOM LATHE

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


618EM
Lathes (Manual)
Tool Room Lathe
used
2000 (LB)
0
$0.00

Description

Inventory Number: 5946-440

Technical Specifications:

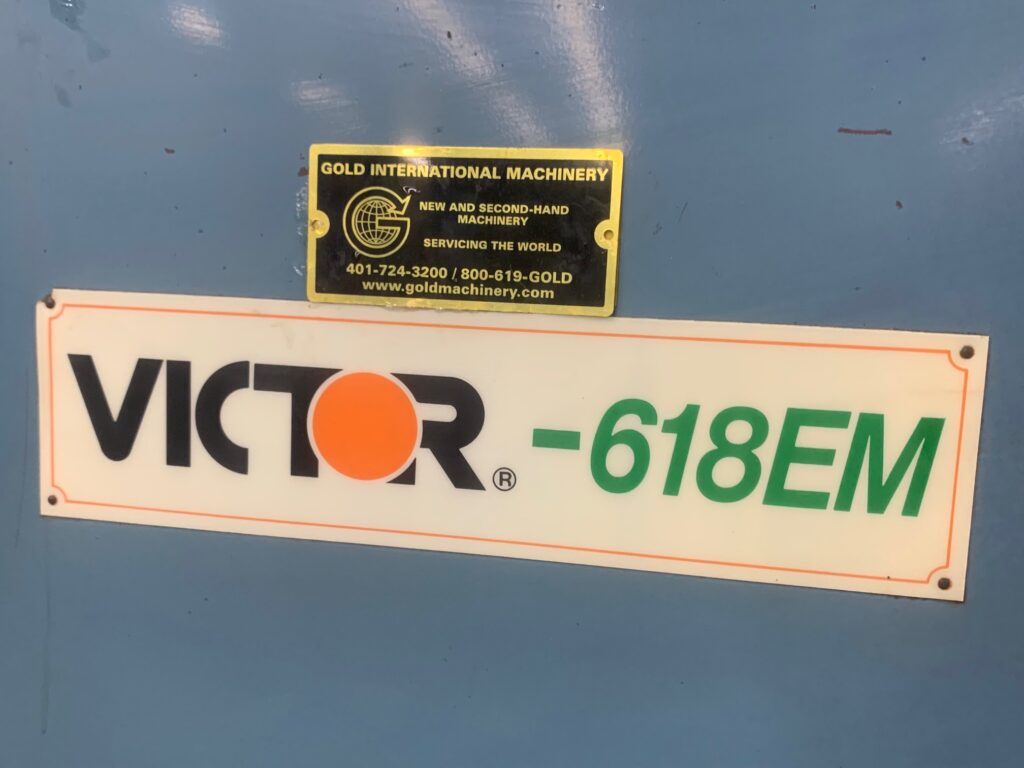

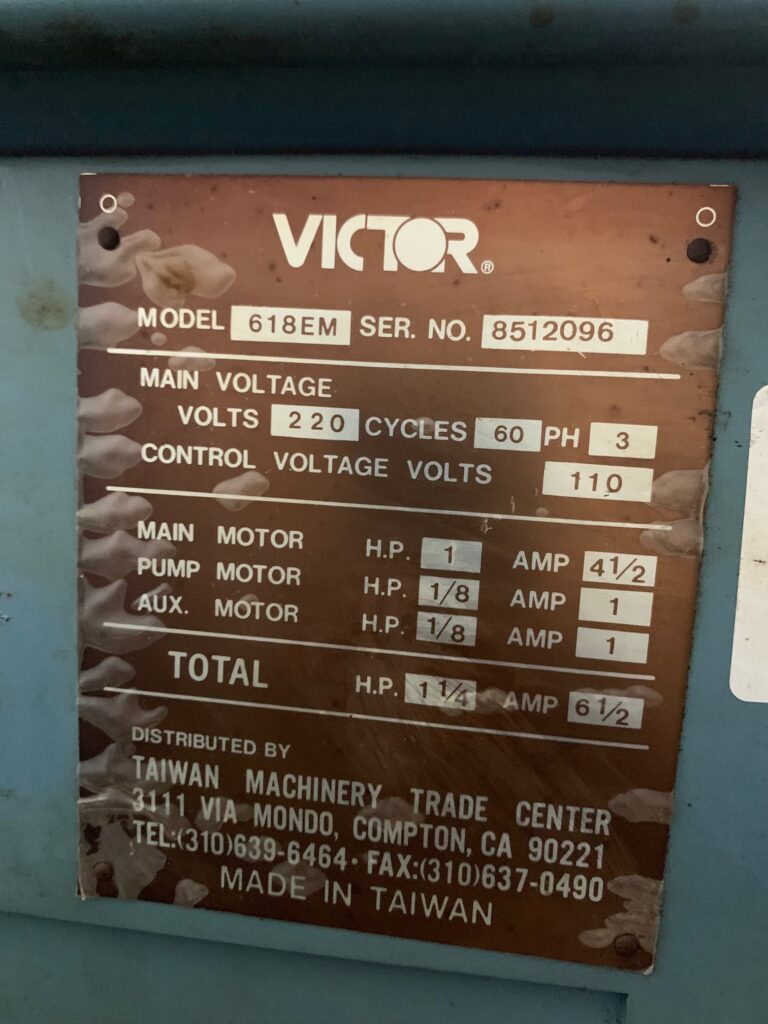

VICTOR Model 618EM

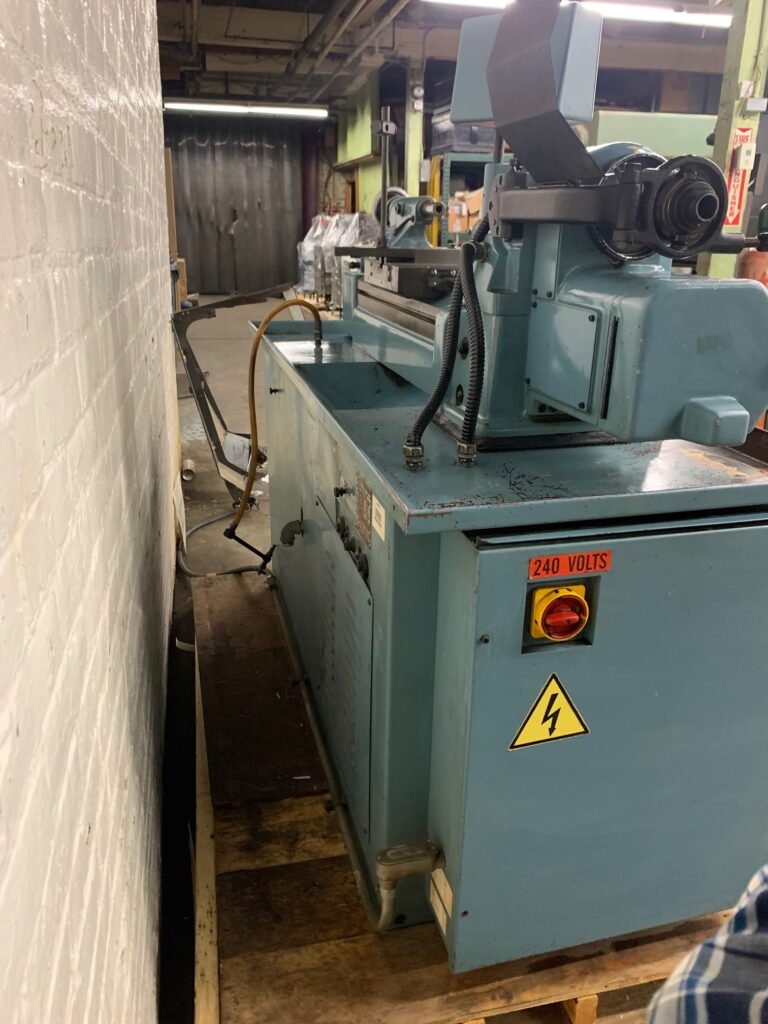

220V/3PH/60HZ
Swing over bed: 11"
Swing over carriage: 9"
Swing over cross slide: 6"
Distance between centers:" 18"
Spindle capacity: 5C round collets 1-1/16"
Speeds: 130 - 3000 RPM Variable
Compound slide travel: 3"

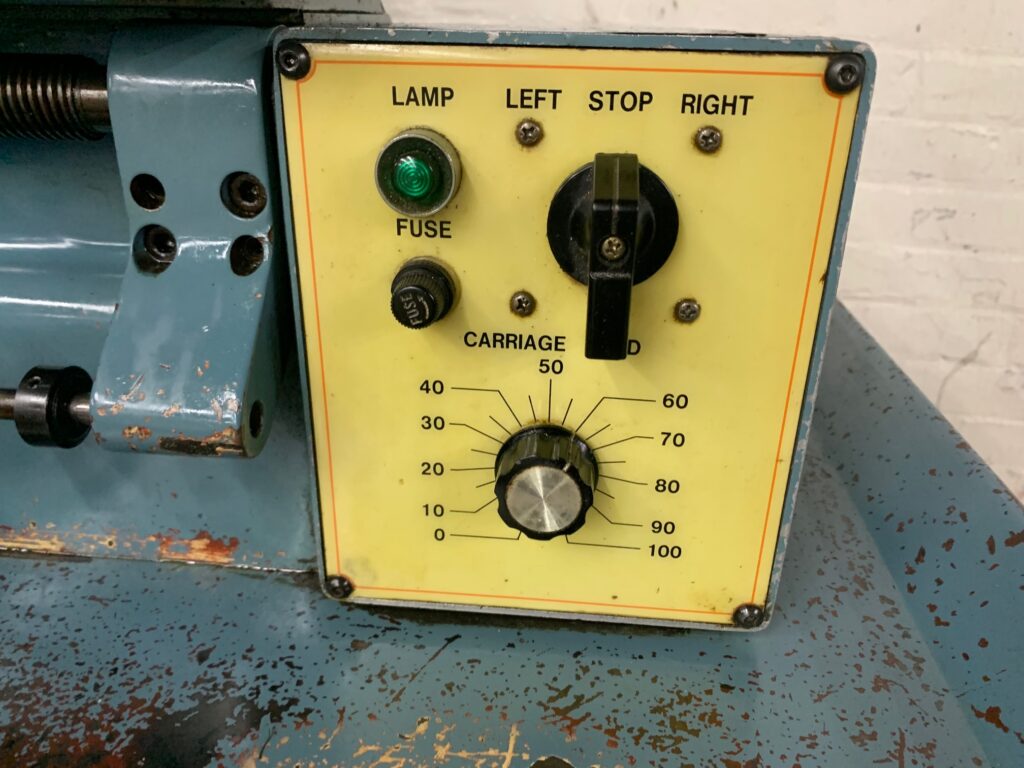

Carriage power feed range: 5/16 - 7 IPM
Cross slide power feed range: 3/16 - 4 IPM

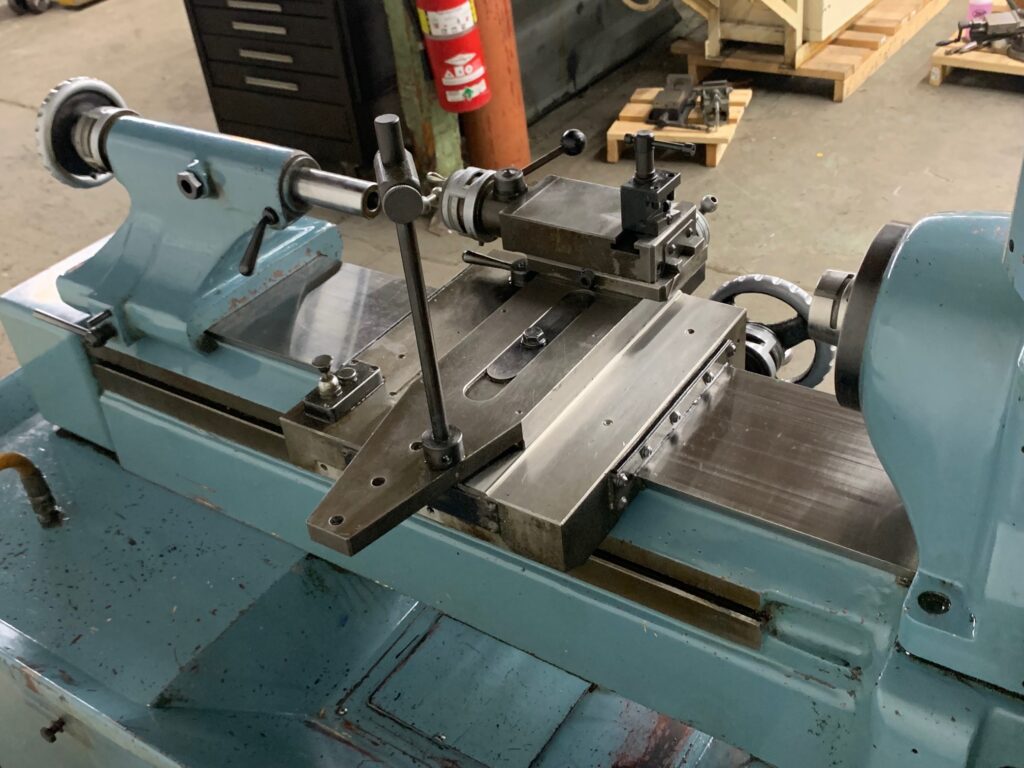

Tailstock quill diameter: 1/358"
Tailstock quill travel: 3-3/4"
Tailstock spindle taper: MT #2

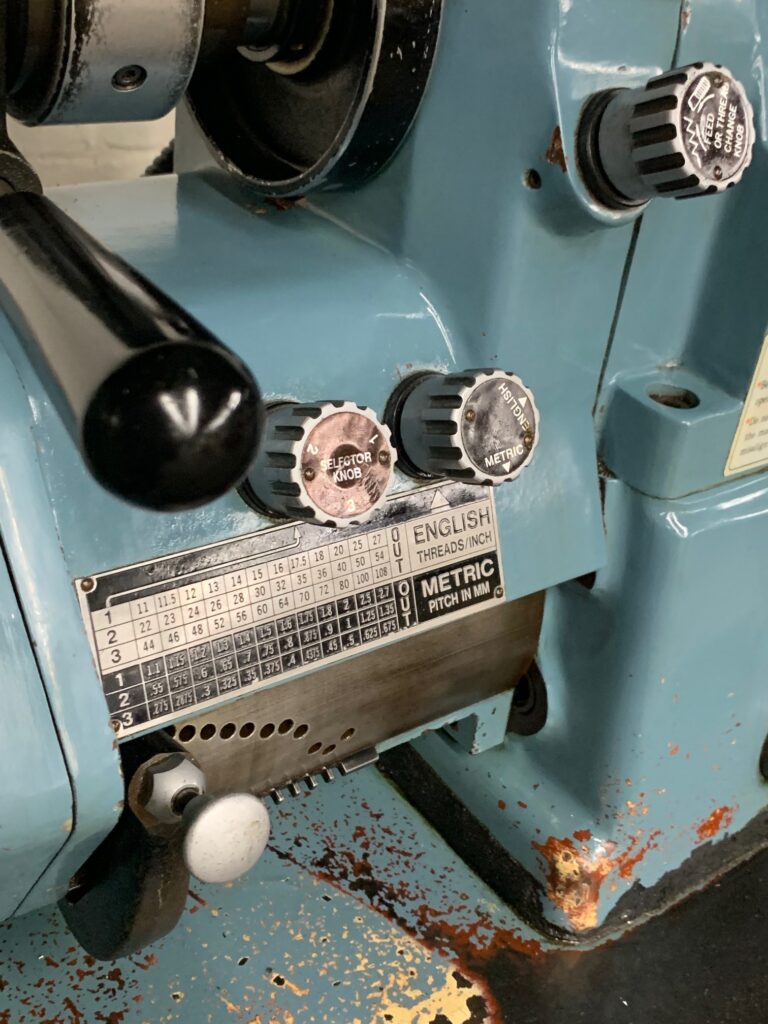

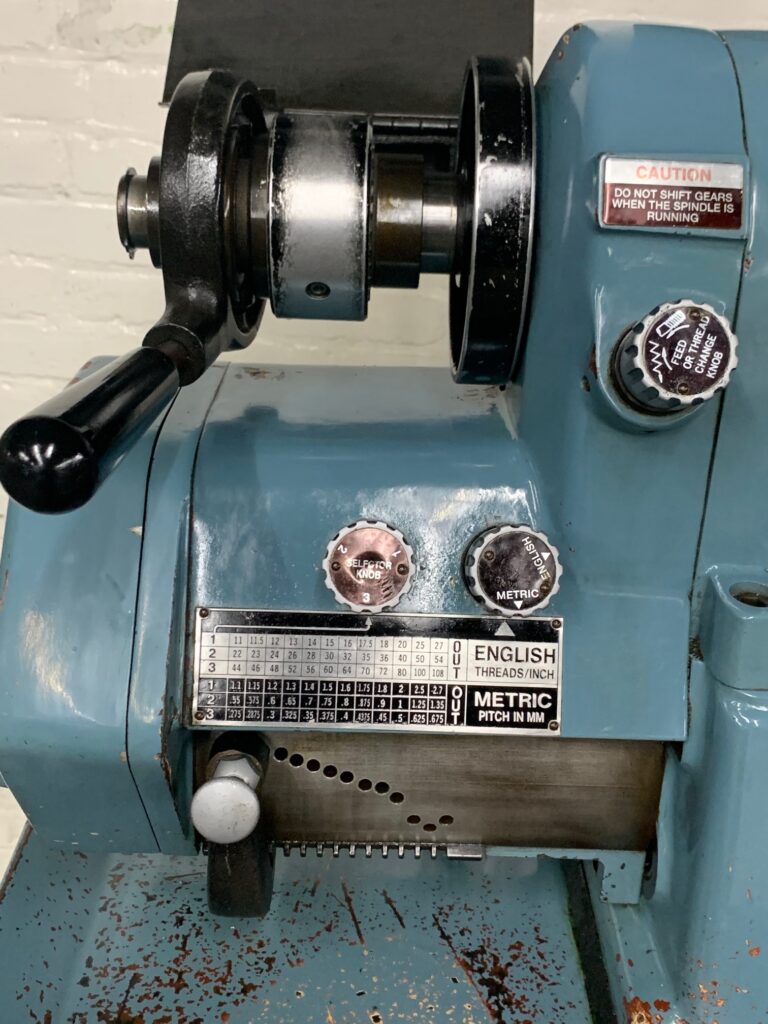

Inch threading range: 11 - 108 TPI
Metric threading range: 0.275 - 2.7 mm
Spindle motor: 1/ 0,5 HP
Estimated machine weight: 2000 lbs.
Machine dimensions: 74"LR x 40"FB x 73"H

Equipped With:

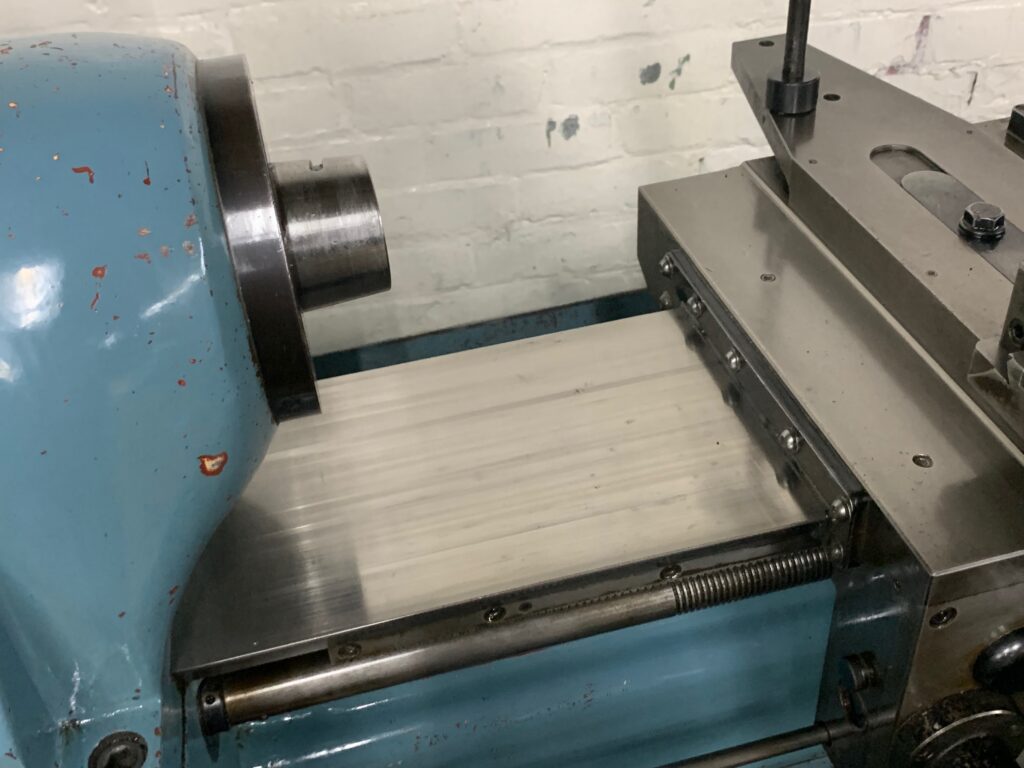

Hardened ways
Lever type 5C collet closer

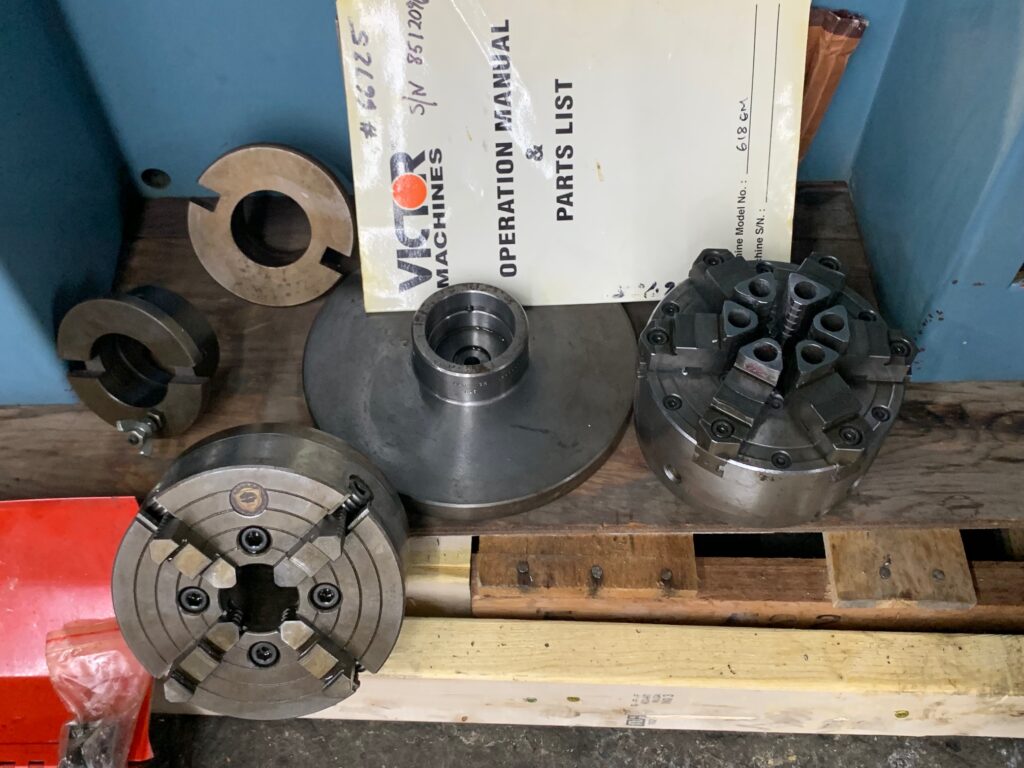

6-Jaw chuck
3-jaw chuck

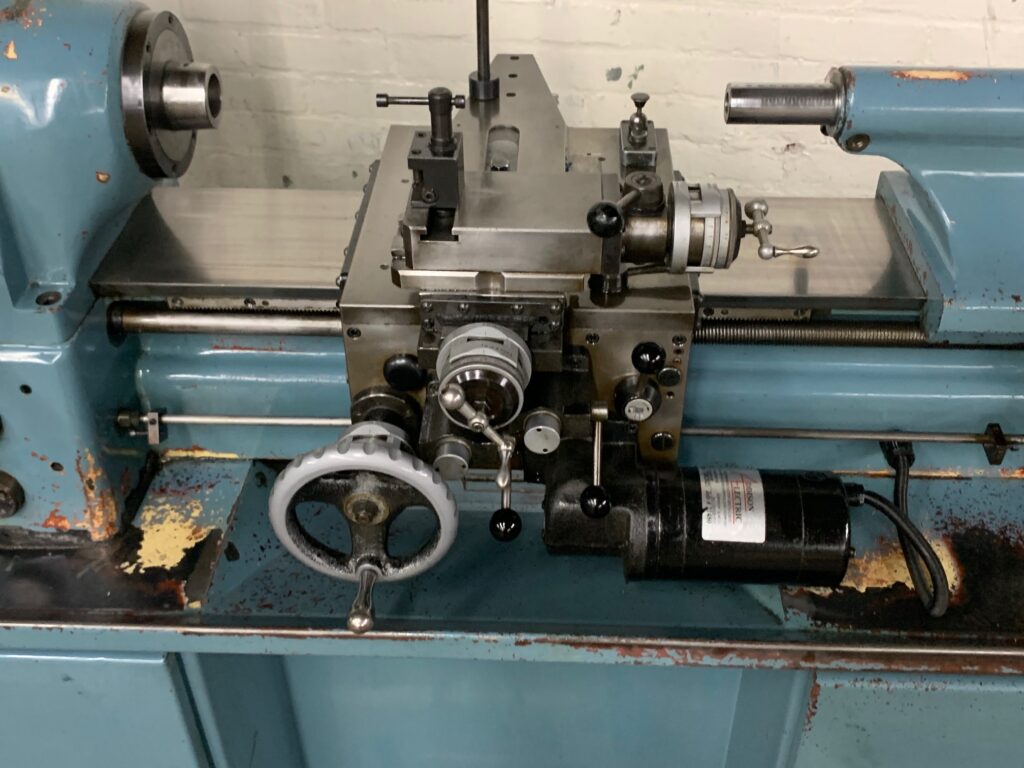

Swivel compound with quick action compound slide travel

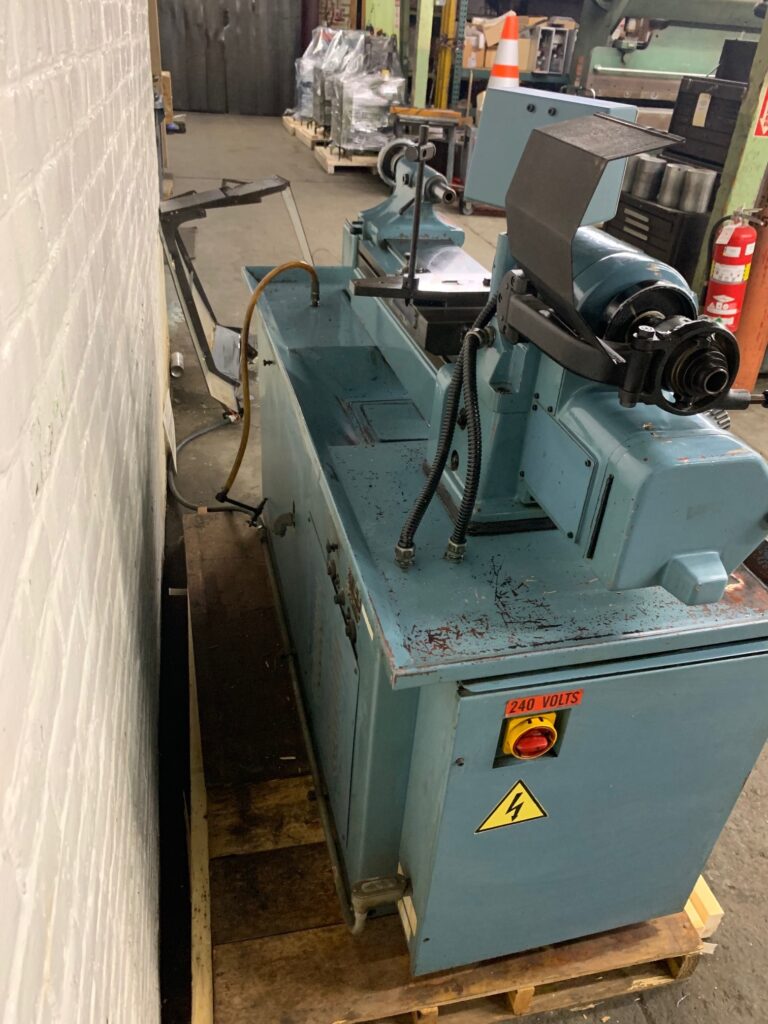

Coolant system
(1) tool holder
Hardinge C25 faceplate
Splash guards
Hardinge taper spindle nose

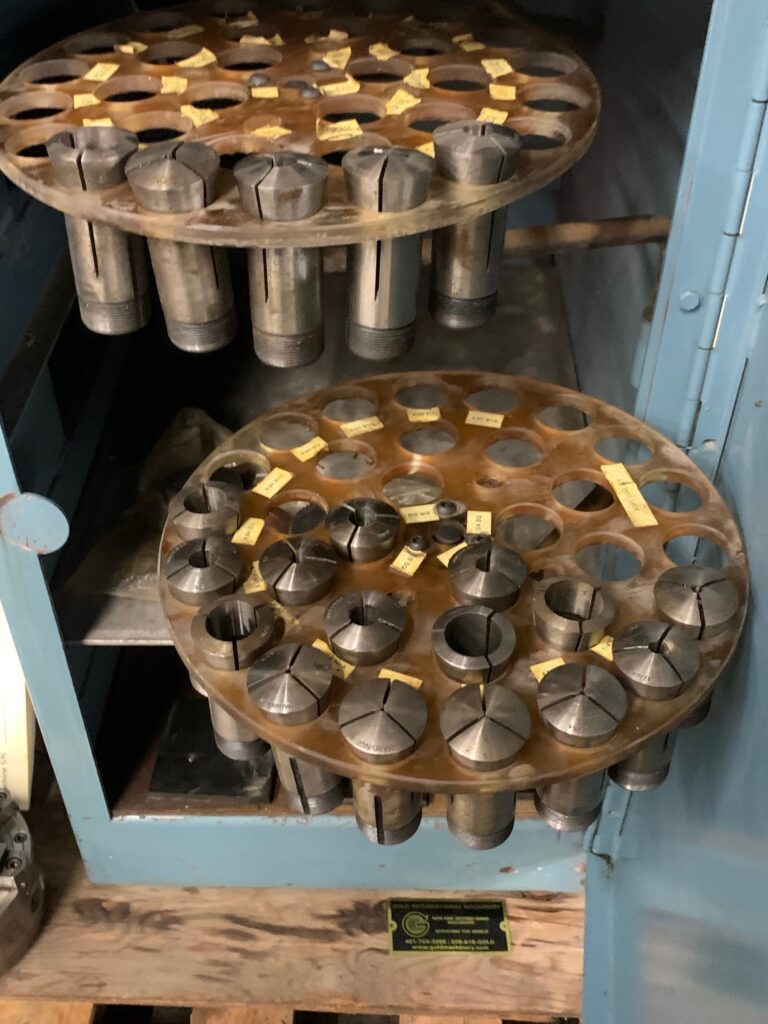

Assorted hardinge 5C collets
2 collet racks
