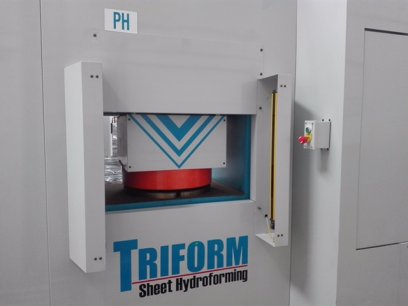

Triform 12-10-7BD Press Specifications

CAPABILITIES 565 TON

Max Chamber Pressure 10,000 psi (69 MPa)
Forming Area 12" dia. (305 mm)
Lower Punch Force 280 Tons
Lower Punch Stroke 7" (178 mm)
Draw Depth Capacity 7-1/2" (191 mm)
Max. Punch Tool Diameter 8-1/2" (215 mm)
Daylight 12" (305 mm)


SYSTEM DIMENSIONS:

Overall System Length 36" (91 cm)
Overall System Width 110" (279 cm)
Overall System Height 100" (254 cm)
Floor Space Required 146" x 48" (370 x 122 cm)
Total System Weight 25,000 lbs. (11,340 kg)


CONTROL SYSTEM:

CNC/PLC Allen Bradley
Electrical By Allen Bradley
Touchscreen Interface AB Panel View (Color)
Job Storage/Recall 500+ Job Capacity

POWER SYSTEM:

Main Motor Horsepower 75 HP
Pump Manufacturer Oil Gear
Working Fluid ISO 46 W
Heat Exchanger Included
Temp/Level Sight Gauge Included
Main Power 480V
Phase 3 Phase
HZ 60 HZ
Control System Voltage 110V
FLA Draw 85 Amps
Alternative Power configurations available

Performance:
Forming Pressure Control (+/-) 1%
Forming Position Control (+/-) .002" (0.05mm)


CNC CONTROL

The hydroform press is fully programmable:
-- Fluid Cell Process Mode
-- Deep Draw Process Mode
The full featured control offer job storage and recipe handling
with expansion capabilities. In addition to sequential

programming ofpressure and position, the operator interface

data/program screens include:

--System Diagnostics
--Alarm Handling and Logging
--Multi-Level passwrod protection
--Oem set-up screen for remote system performance adjustments
--PLC input/output visualization
--Batch Counter
--Cycle Timer

Optional remove VPN connection via Ethernet allows for the press

system to be monitored by the factory for immediate technical

support.
