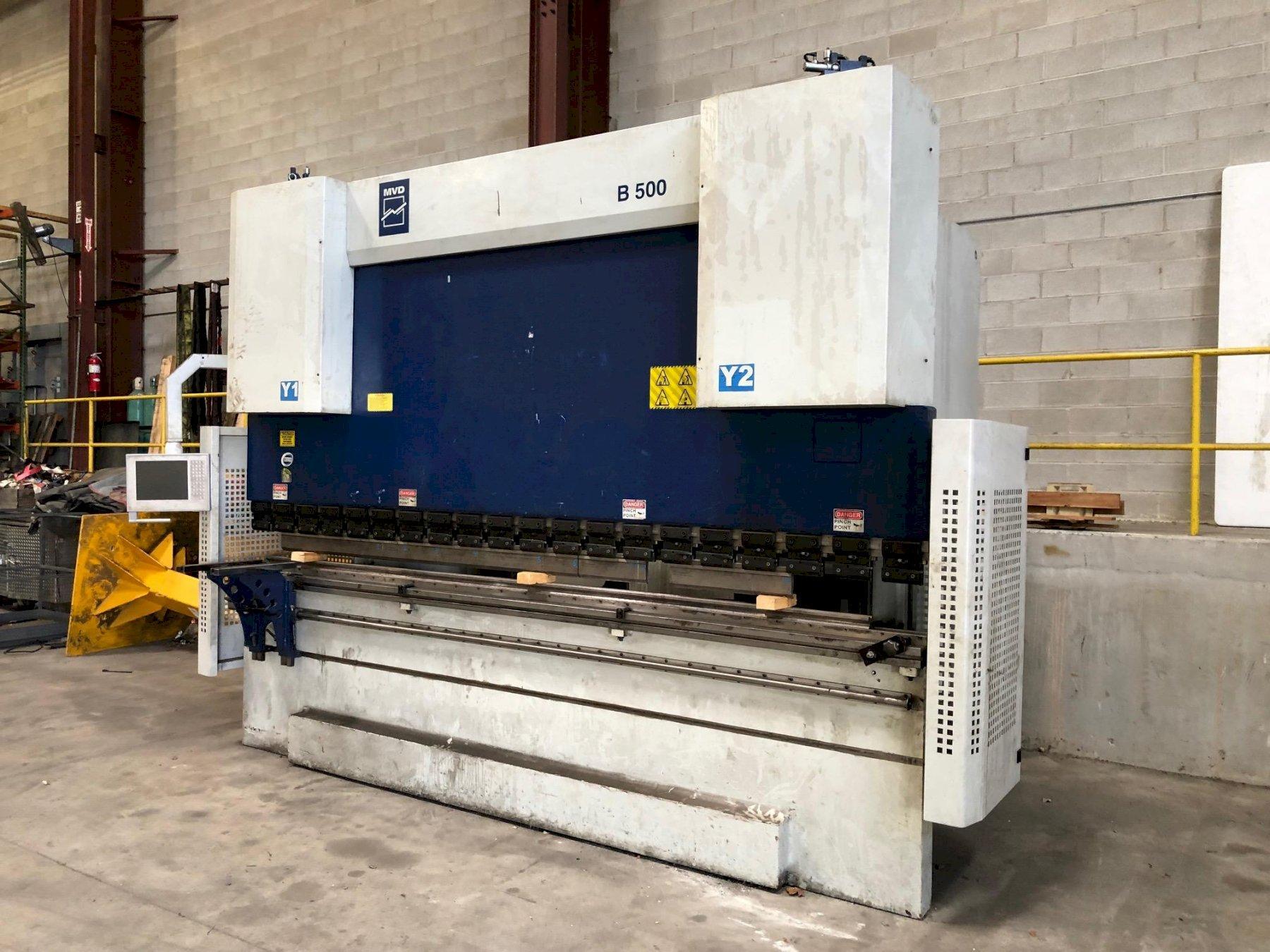

550 TON X 13 FT - DEMO PRIMELINE SERVO HYDRAULIC CNC PRESS BRAKE MODEL S550B13

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


S550B13
Press Brakes
CNC Pressbrake
used
57420 (LB)
2016
$0.00

Description

Stock#: 4007

Capacity - 550 Tons
          Working length - 161"
          Distance between housings - 126.03"
          Adjustable stroke - 12.21"
          Maximum open height (without punch holders) - 21.66"

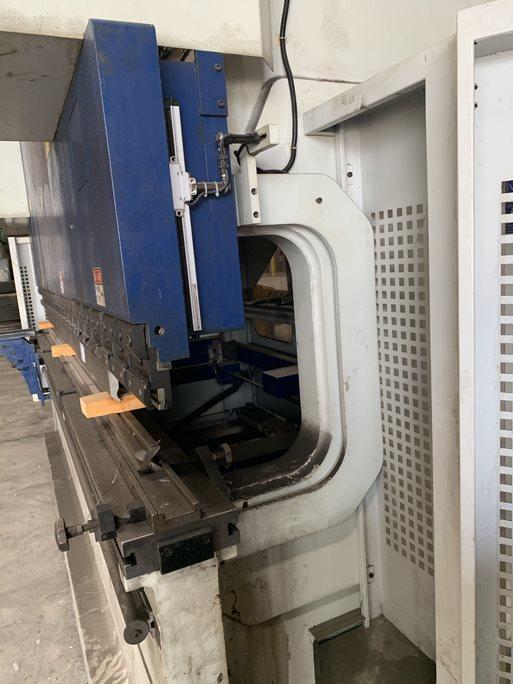

          Throat (gap) - 19.69"
          Three working speeds:
                    Quick Approach- 3.78"/second
                    Bending - 0.47"/second
                    Reverse - 3.78"/second
          Motor HP - 60 - Currently wired 480 Volt , 3 Phase
          Length of base x width of base x overall height - Approximate
                    dimensions:  230" L x 124" W x 120" H
          Approximate weight - 57,420 lbs.

Includes:

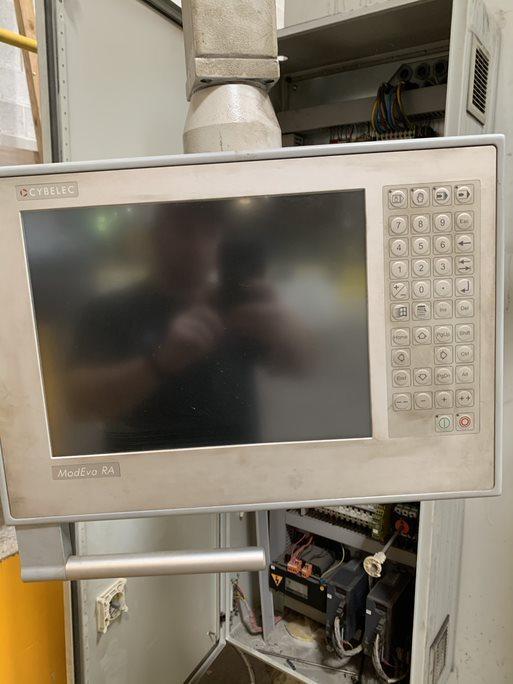

Cybelec Modeva RA CNC Graphical 3D Control --

(X, R, Y1, Y2)DNC Motorized Crowning

R Axis - 7.87" adjustment

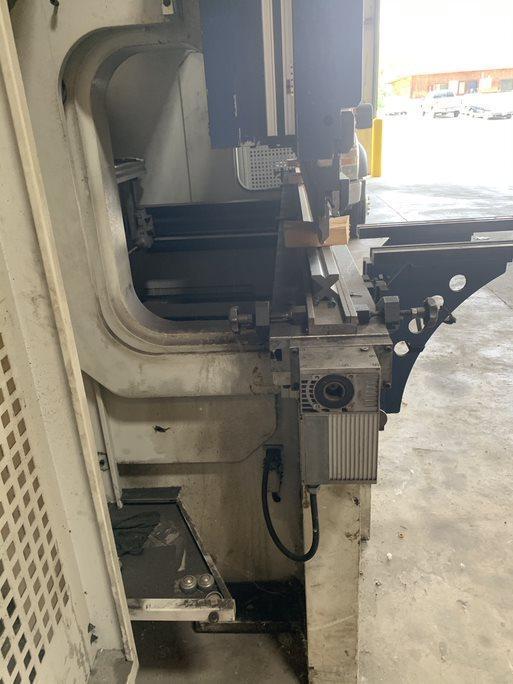

40" Back Gauge Travel

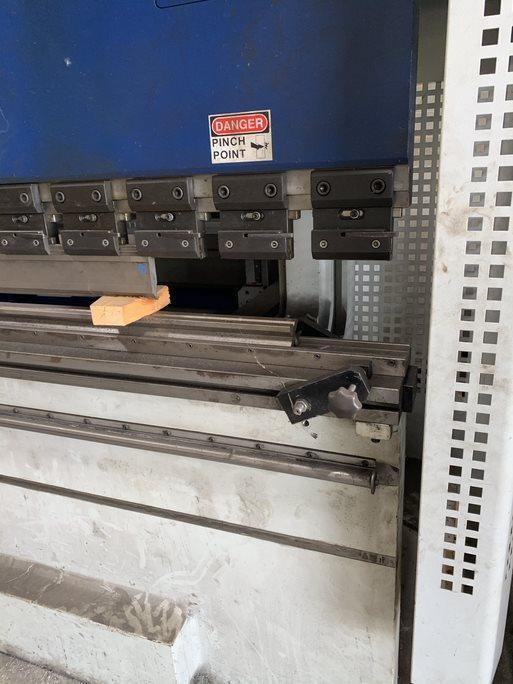

Assorted Tooling - Includes 4 Way DieOffline Programming - Dongle

FOB: Origin
