Inventory Number: 5300-440
Technical Specifications:

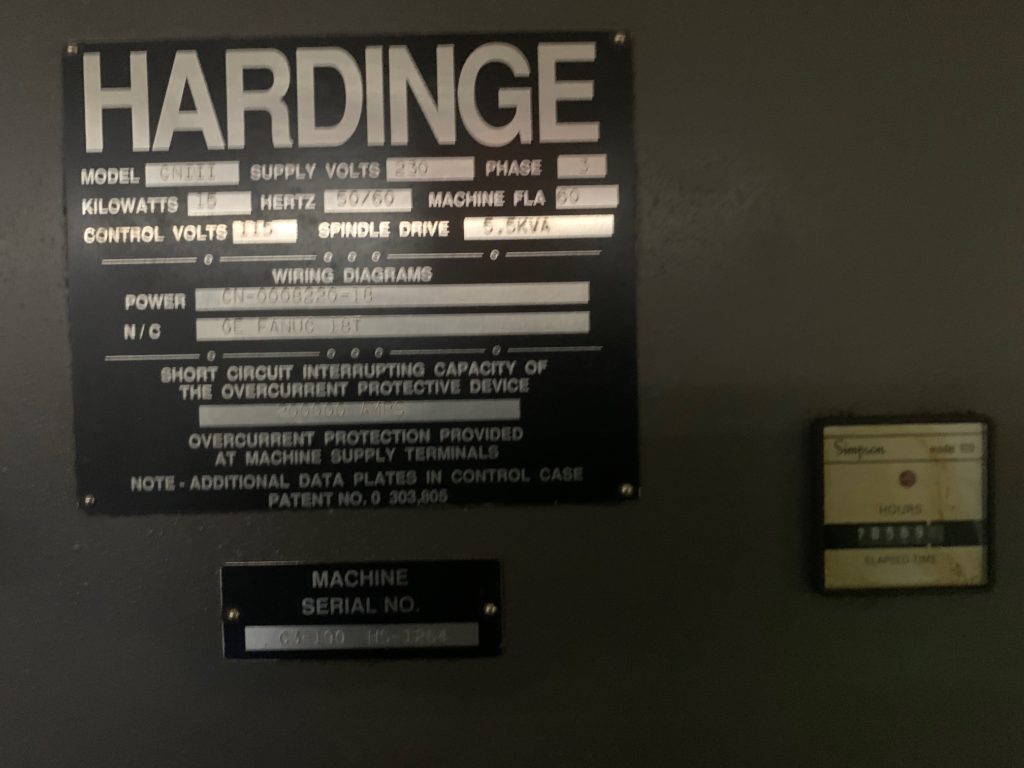

S/N C3-190-HS-1264
Voltage: 230V, 3PH, 60 CYC
SPINDLE CONFIGURATION (ANSI): A2-5", 16C
ROUND COLLET (THRU CAPACITY): 1.625"
HANG WEIGHT W/WORKINGHOLDING DEVICE: 75 LBS. (MAX.)

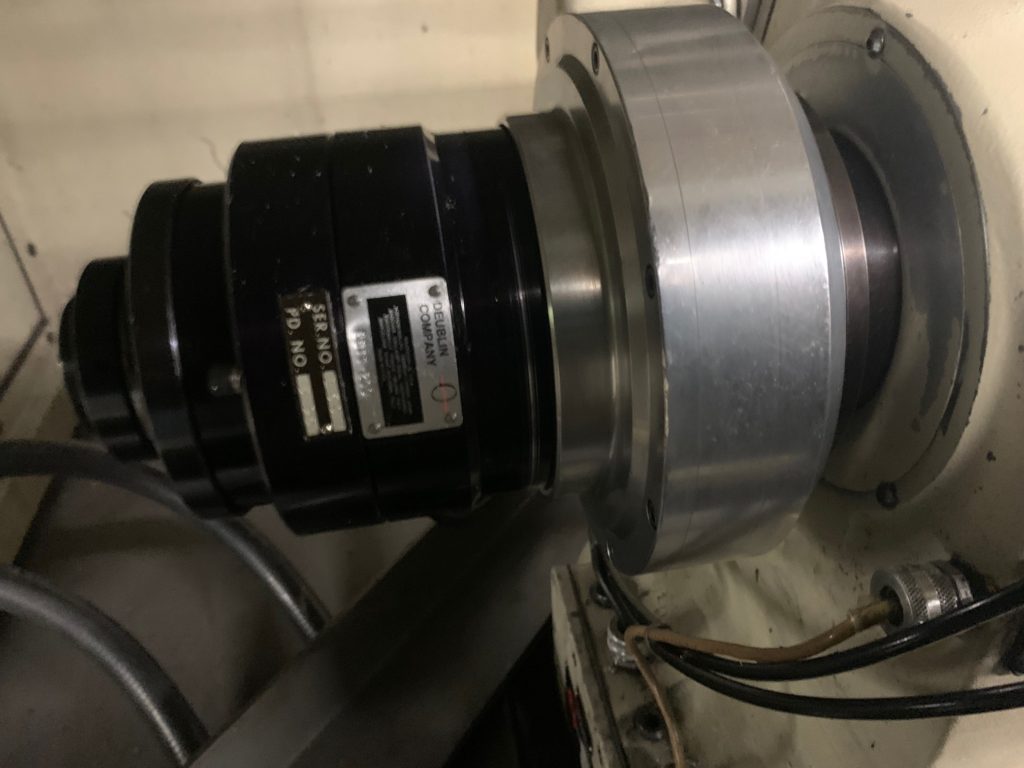

COLLET CLOSER STROKE: 1/2"
TURNING DIAMETER: 8" (MAX.)
THREADING DIAMETER: 8" (MAX.)
FIXTURE DIAMETER: 9" (MAX.)
AC DIGITAL DRIVE SYSTEM:
(15 MINUTE RATINGS USED FOR POWER AND TORQUE SPECIFICATIONS) (BASE SPEED TORQUE RATINGS 1250 RPM)
STANDARD: 10 HP
TORQUE RATING: 42 FT. LB.
SPEED RANGE (1 RPM STEPS): 50 TO 5000

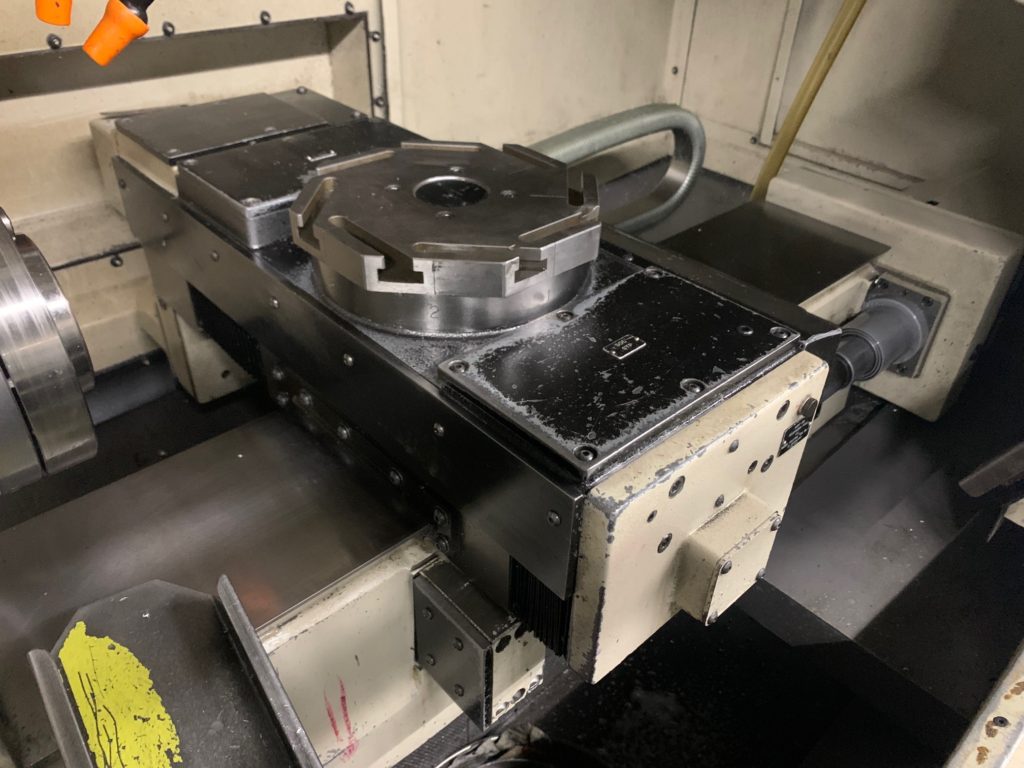

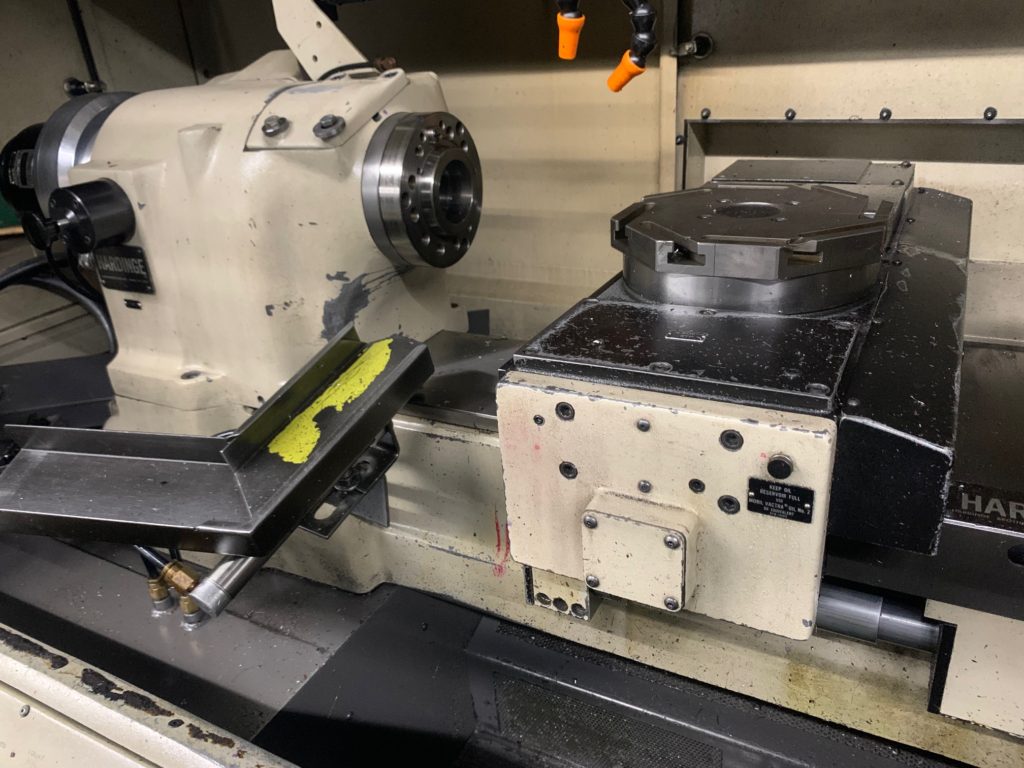

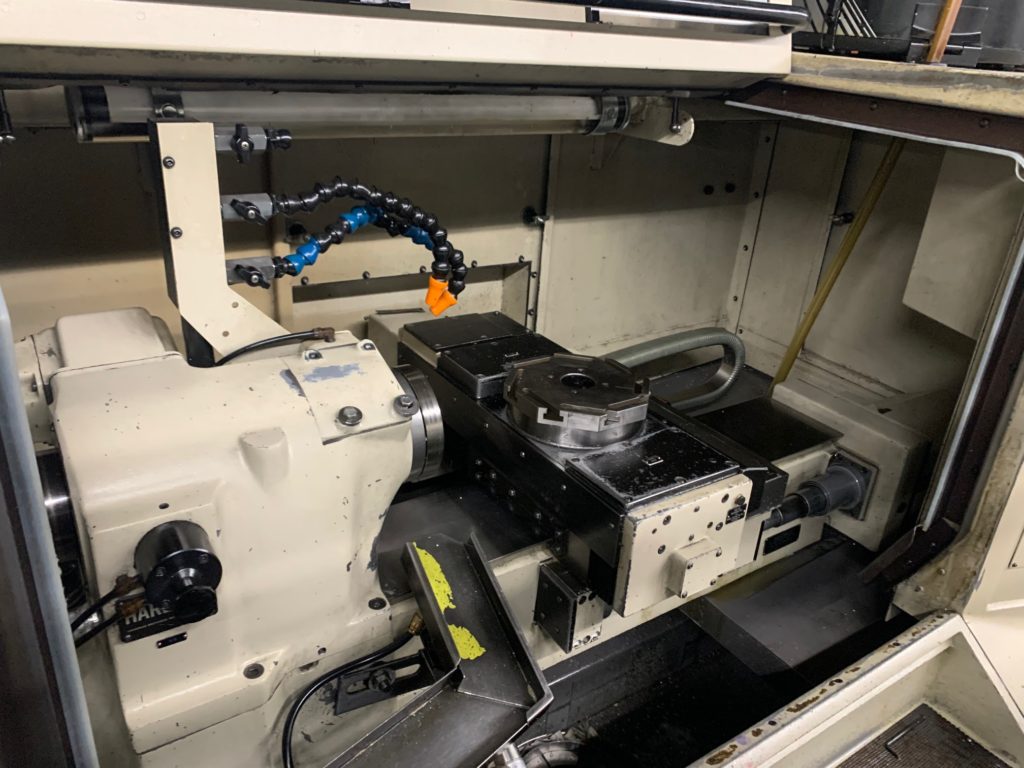

TOP PLATE AND TOOLING:
NUMBER OF TOOL POSITIONS (STANDARD): 8
AVAILABLE: 4
X-AXIS TRAVEL: 4.5" MAX.
Z-AXIS TRAVEL: 12.0" MAX.
X-AXIS TRAVERSE RATE: 400 IPM (MAX.)
Z-AXIS TRAVERSE RATE: 400 IPM (MAX.)
DISTANCE FROM SPINDLE TO TOP PLATE FACE: 12.5" (MAX)
INDEXING TIME (STATION 1 TO 8): 2 SECONDS
STATION TO STATION (UNLOCK, INDEX, RELOCK): 1 SECOND
TURRET INDEXING REPEATABILITY: .000010"
AXIS REPEATABILITY (OVERALL): .000050"
SWING DIAMETER OVER BED/WAY COVER (MAX): 14"
WORKPIECE DIAMETER X LENGTH (MAX.): 2.75"

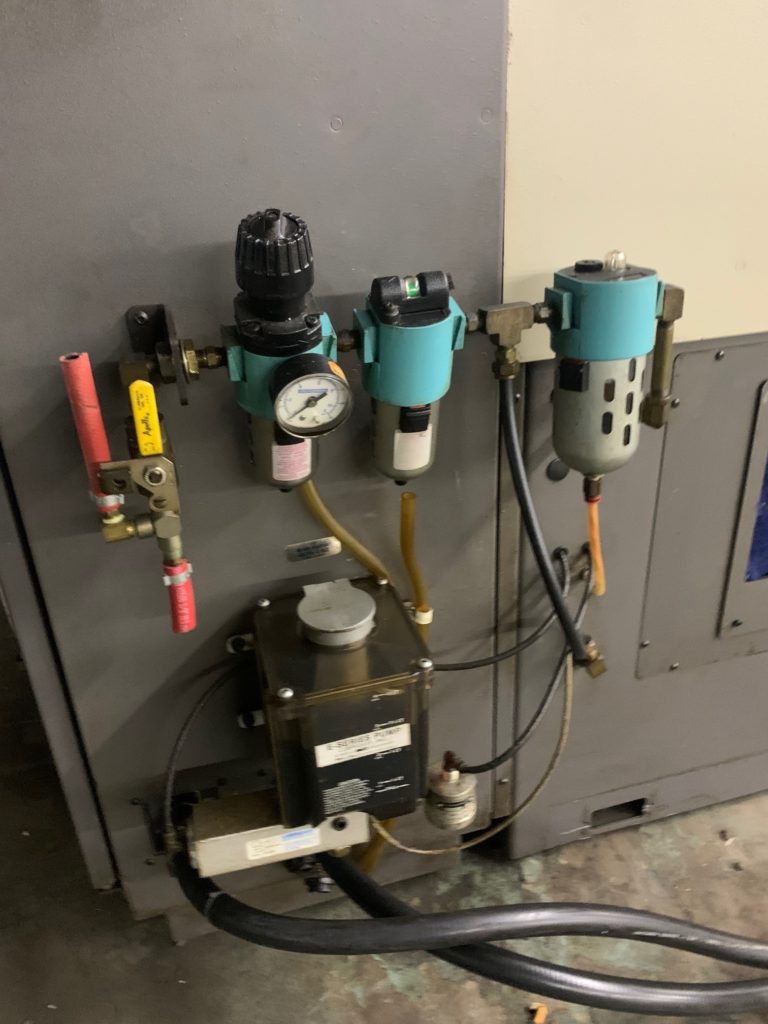

COMPRESSED AIR REQUIREMENT: 70 TO 90 PSI
RECOMMENDED AMBIENT OPERATING:
TEMPERATURE: 32 TO 104 DEG. F / 0 TO 40 DEG. C
COOLANT TANK:
CAPACITY: 30 US GALLONS
COOLANT FLOW RATE: 6 TO 8 GPM
APPROX. WEIGHT: 6,000 LBS.
SPINDLE CENTERLINE HEIGHT: 47.375"
MACHINE DIMENSIONS: 92.75" x 70" x 64.5" High (90" with guard door raised)
Equipped With:

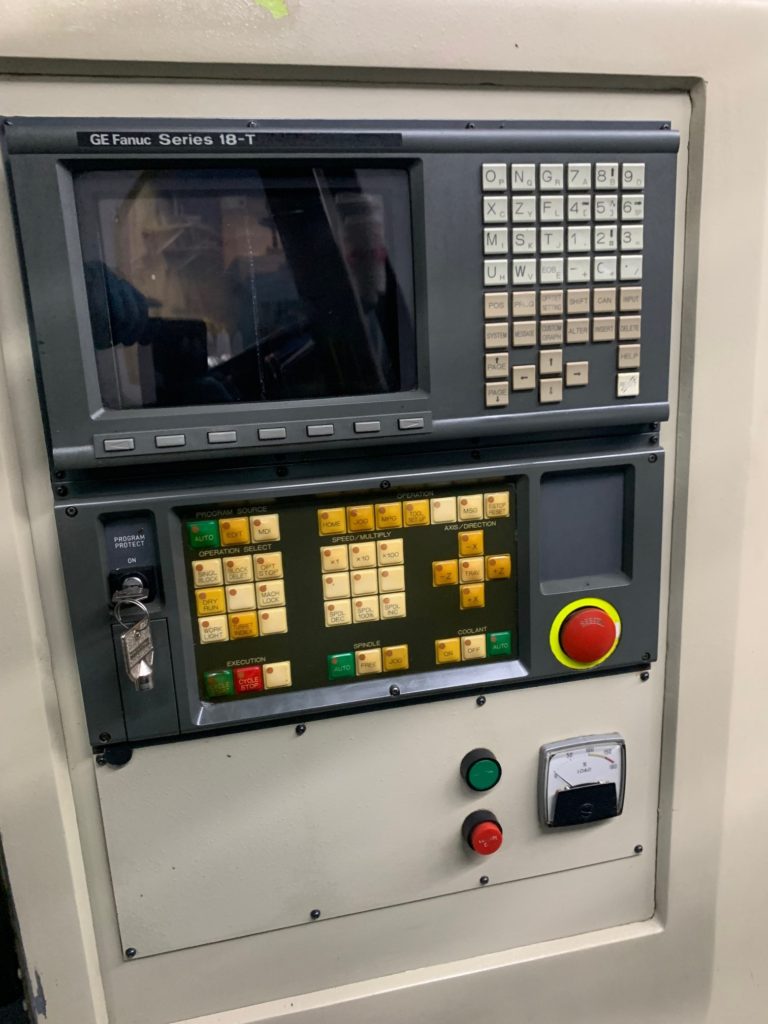

FANUC 18T CONTROL

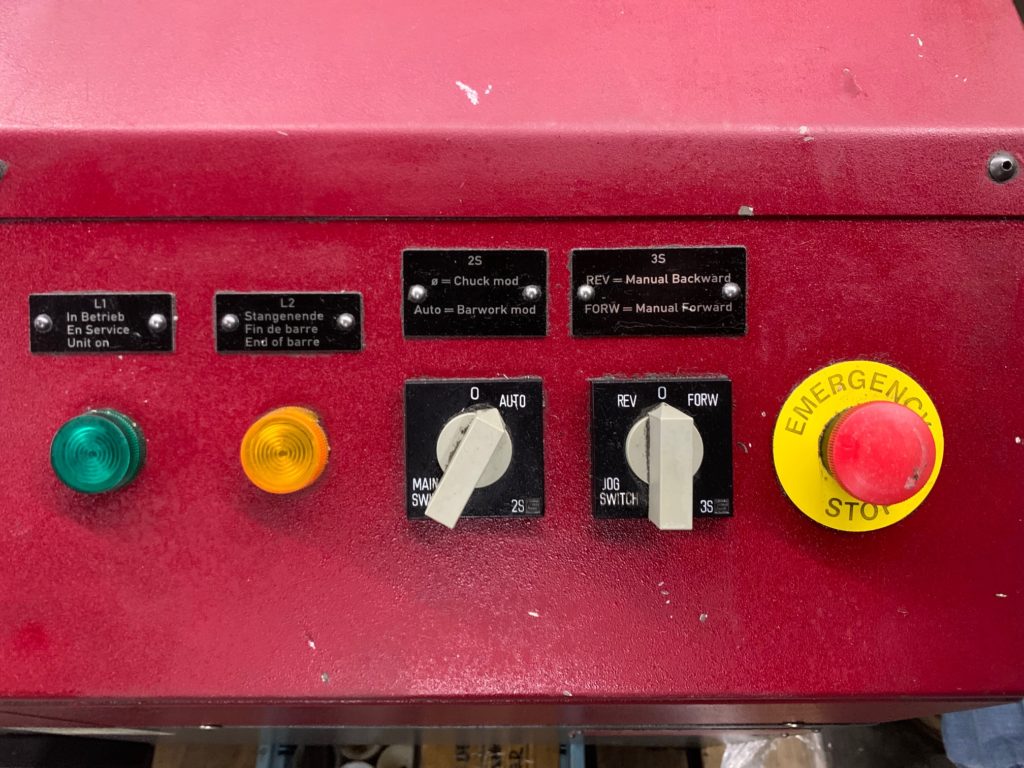

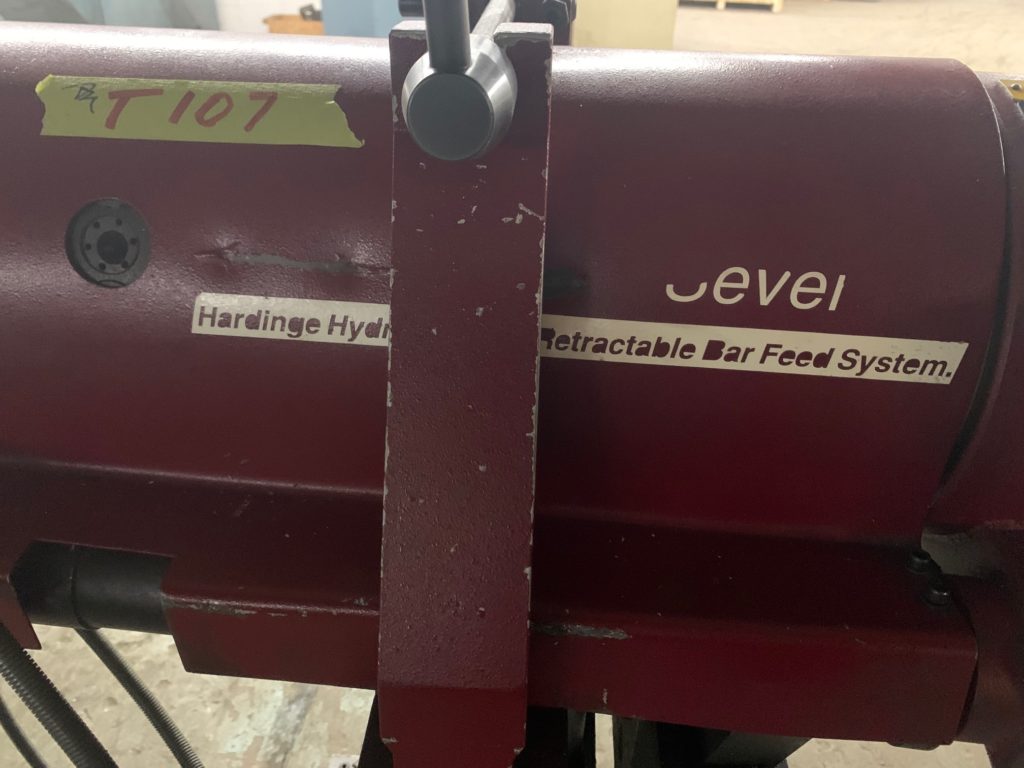

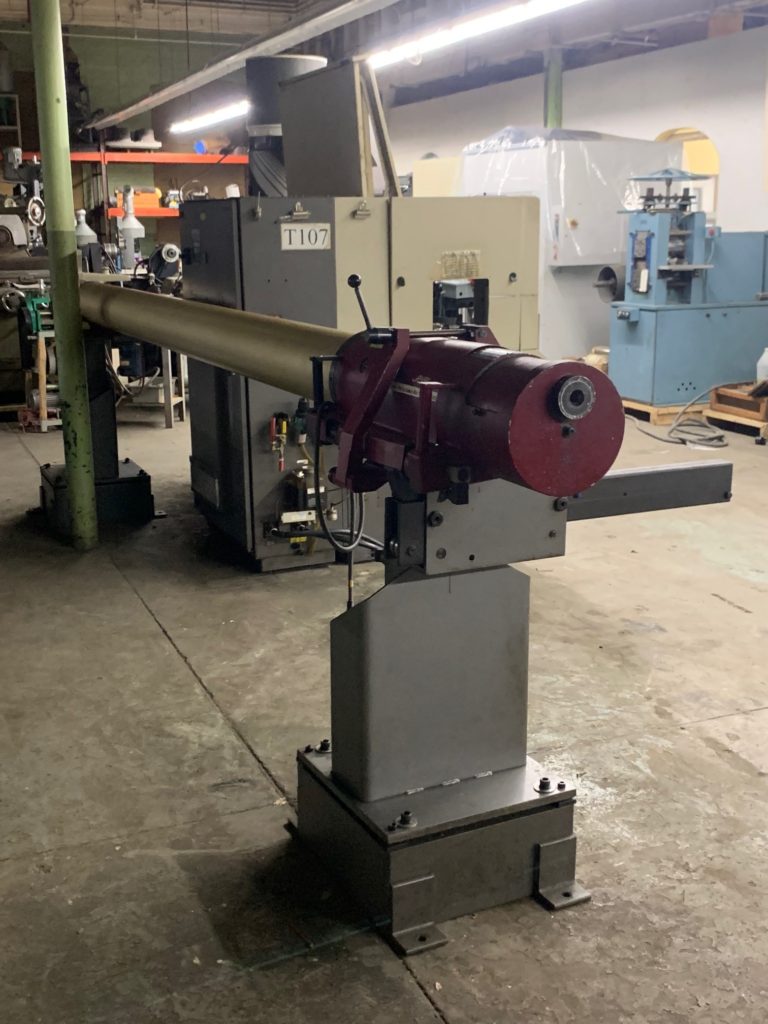

HARDINGE HARMATIC HYDRAULIC BAR FEED
VERTICAL CUTOFF
PARTS CHUTE
COLLETS
COOLANT TANK
PARTS REMOVAL SYSTEM
