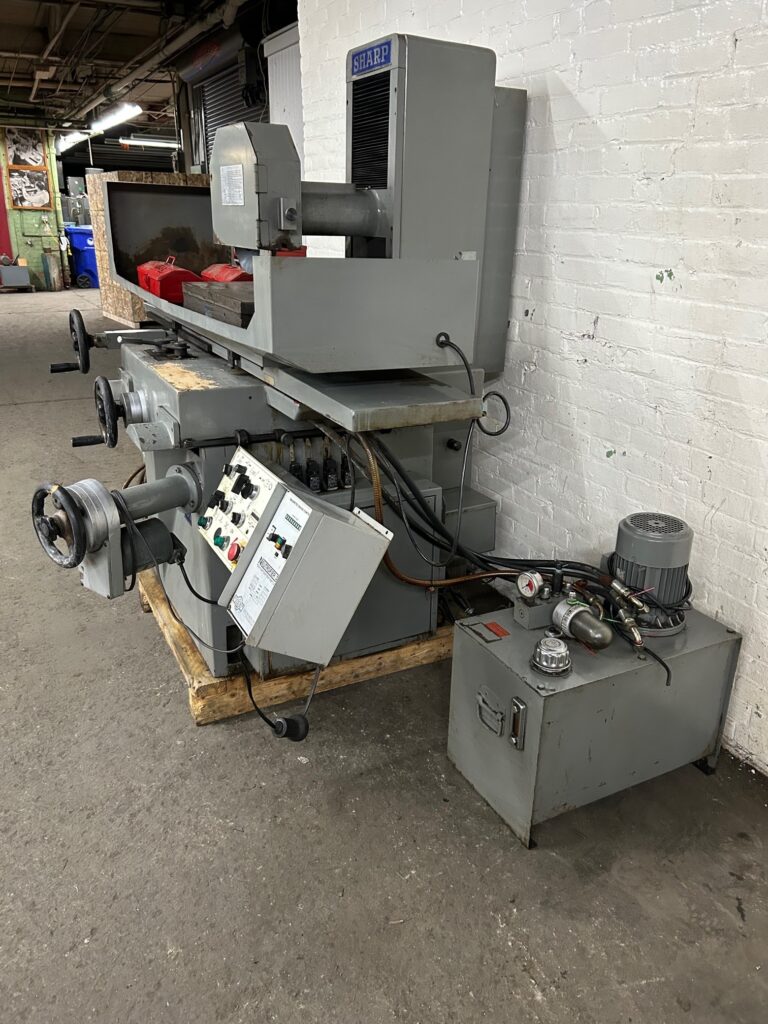

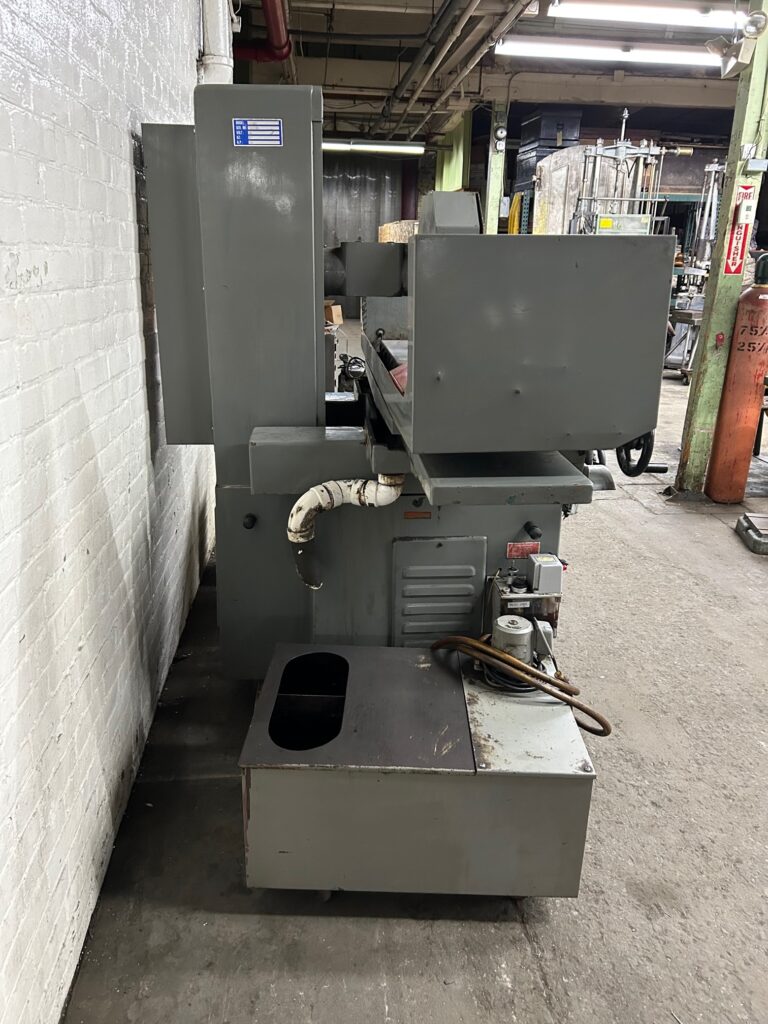

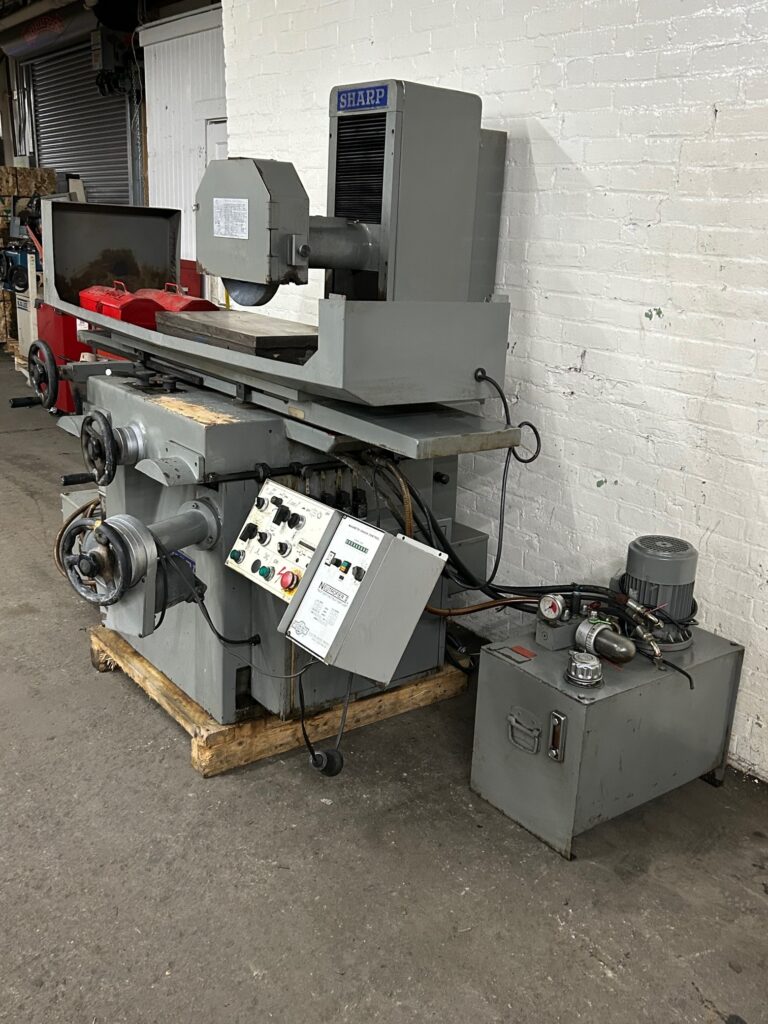

5291-420 SHARP GRINDING MACHINE SURFACE GRINDER MODEL SH-1224 WITH SERVO DRIVEN (Z) DOWNFEED

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images

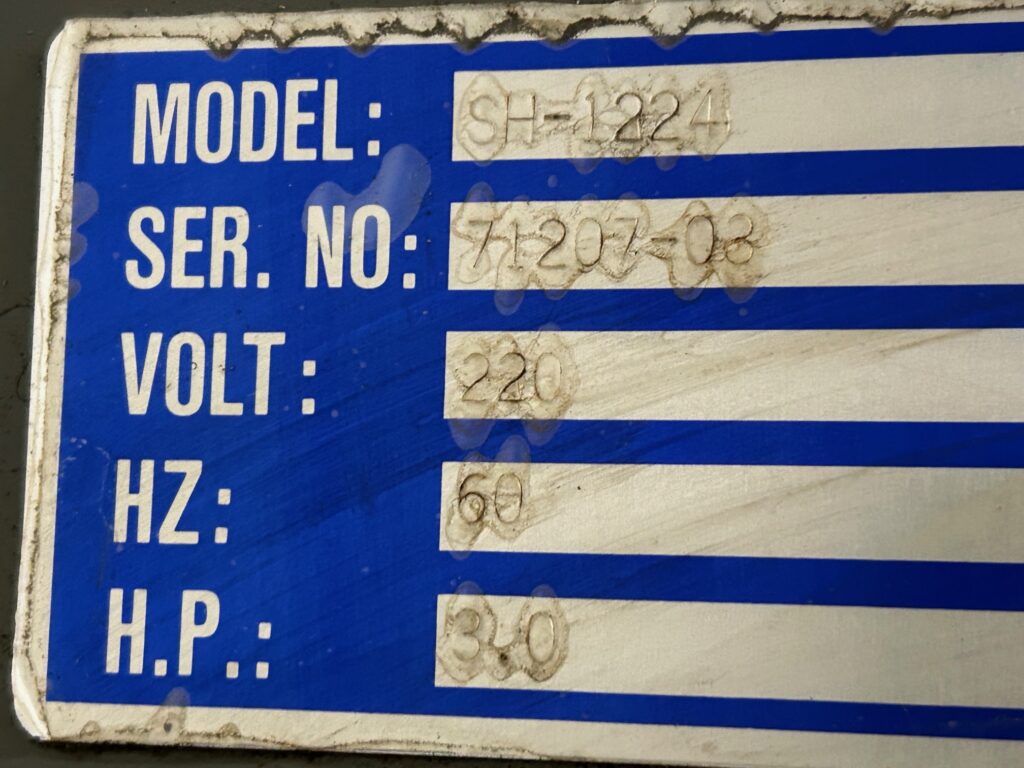

SH-1224
Grinders
Surface Grinders
used
4700 (LB)
0
$0.00

Description

Inventory Number: 5291-420

Technical Specifications:
220 Volt / 3 Phase / 60Hz
Automatic Cross Feed
Automatic Lubrication System
Overall Length: 24 in
Magnetic Chuck Size: 10 in x 20 in
Grinding Wheel Dia.: 14 in
Overall Width: 12 in
Max. Grinding Length: 20 15/32 in
Wheel Width: 1"
Max. Grinding Width: 8 1/8 in
Table Dimensions: 11.6 in x 23.6 in
Grinding Wheel Width: 1 in
Longitudinal Table Speed: 196 to 984 in/min
Operation Type Automatic
Crossfeed Handwheel per Revolution: 0.200"
Crossfeed Handwheel per Graduation: 0.0005"
Downfeed Handwheel per Graduation: 0.0002"
Longitudinal Table Travel: 18-3/4"
Spindle to Table: 19-5/16"
Crossfeed Table Travel: 6-3/4"
Wheel Bore: 5"
Downfeed Handwheel per Revolution: 0.050"
Spindle RPM: 10,000
Cross Handwheel Feed per Revolution: 0.2000 in
Spindle Center to Table Distance: 19 5/16 in
Intermittent Feed: 0.0040 to 0.4000 in/min
Longitudinal Travel: 18 3/4 in
Hydraulic Feed: 6.6 to 82 fpm
Horsepower: 3
Crossfeed Handwheel Graduation: 0.0005 in
Coolant Fed: Non-Coolant Fed
Spindle Speed: 10,000 RPM
Vertical Handwheel Graduation: 0.0002 in
Grinding Wheel Bore: 5 in
Machine Weight: 4,700 lb

Equipped With:

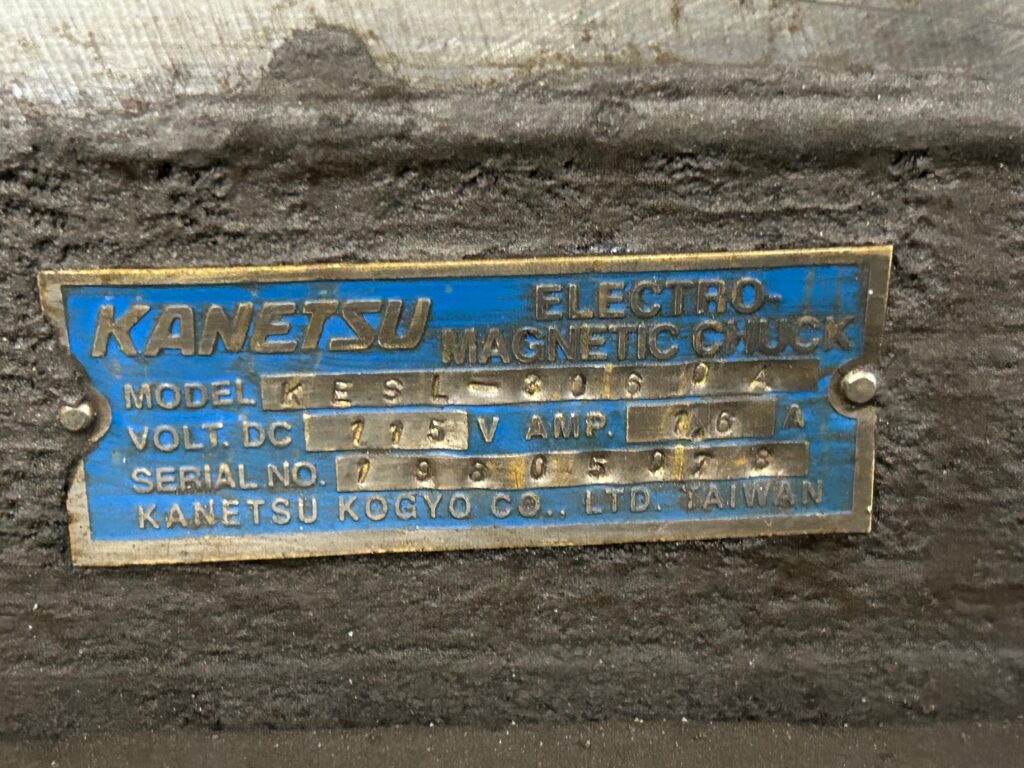

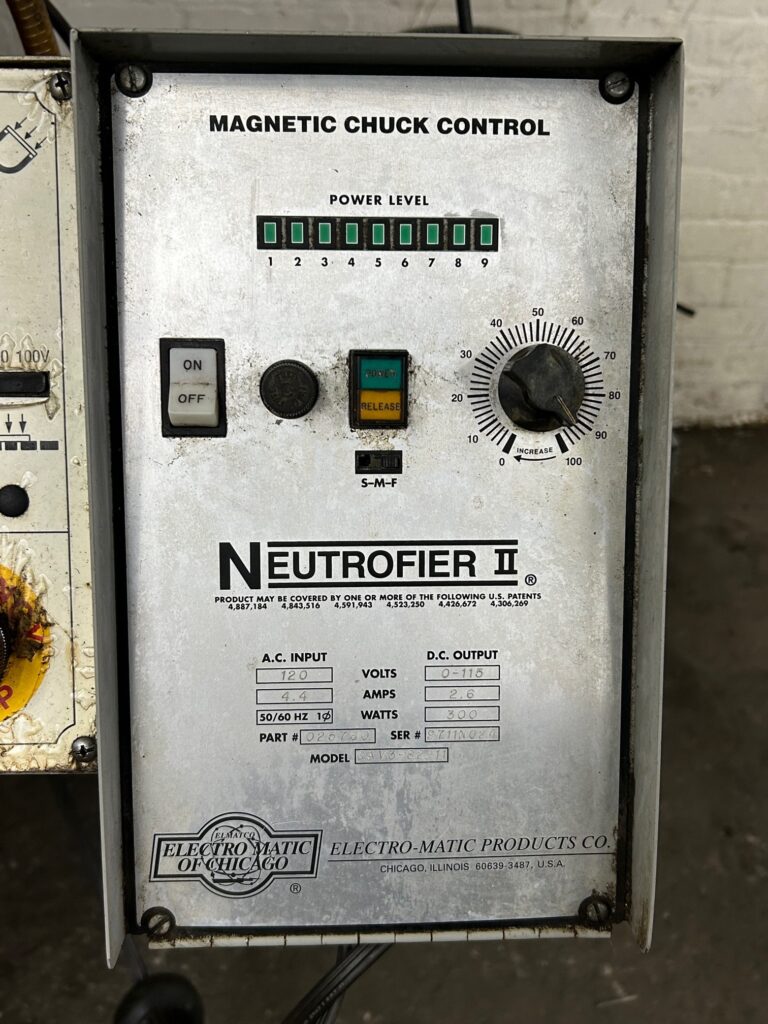

Kanetsu Magnetic Chuck And Neutrofier 11 control

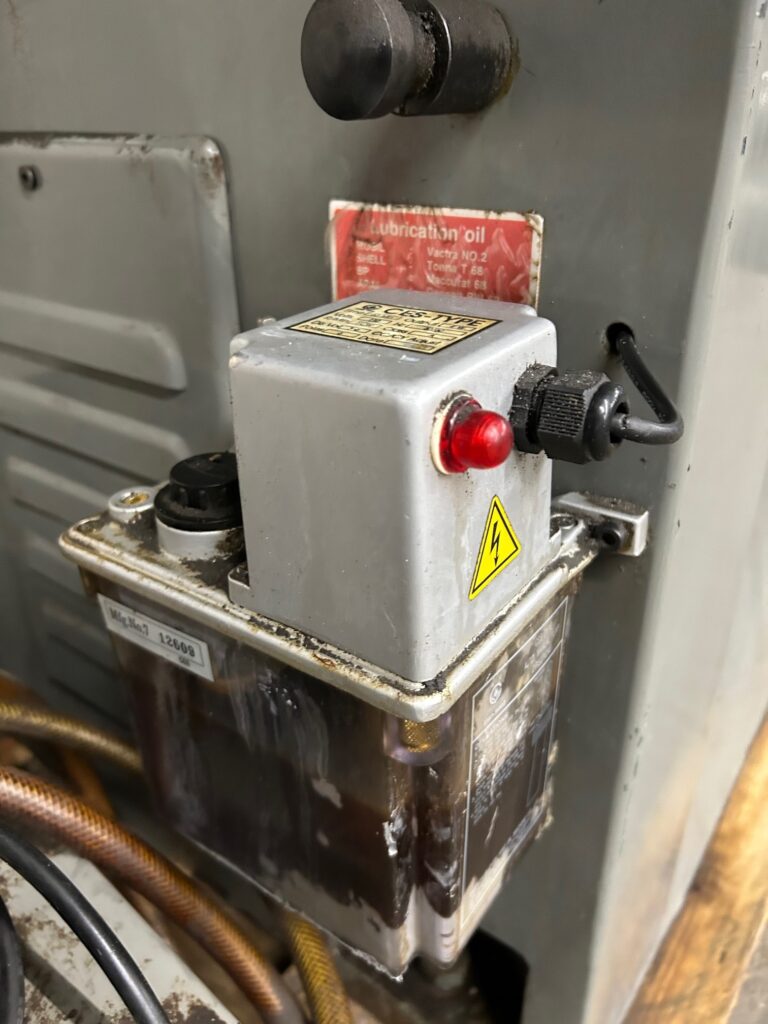

Automatic Lubrication System
Servo driven downfeed system (Z)
