'REFERENCE NUMBER: 12061
S/N: 24-9316
YEAR: 1993
PRESSING FORCE MAIN SIDE:
500 TON FULL TONNAGE PRESSING
100 TON LOW TONNAGE PRESSING
55″ TON RETURN CAPACITY @ 3500 P.S.I.

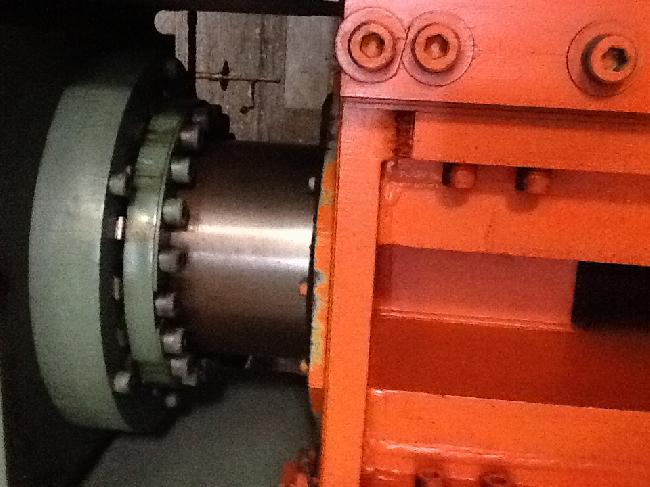

17″ DIAMETER MAIN RAM DIAMETER ( SINGLE ACTION
6-4″ CLOSING & RETURN RAMS (DOUBLE ACTING)**
3537 PSI SYSTEM PRESSURE
**BY SELECTOR SWITCH SETTING CLOSING RAMS ONLY USING LOW PRESSING
PRESSING FORCE TOP & BOTTOM EJECTORS
50 TON BOTTOM EJECTOR CAPACITY (UP ACTING)
50 TON TOP EJECTOR CAPACITY (MACHINING PROVISIONS ONLY)
2000 P.S.I. SYSTEM PRESSURE
8-3-1/2″ DIAMETER TOP & BOTTOM EJECTOR RAMS (DOUBLE ACTING)
WORKING DIMENSIONS:
36″ x 36″ x 5″ BED BOLSTER
36″ x 36″ x 5″ SLIDE BOLSTER
30″ DAYLIGHT (BETWEEN BOLSTERS)
24″ MAIN SLIDE STROKE (MAXIMUM)
6″ SHUT HEIGHT
2″ TOP EJECTOR STROKE
6″ BOTTOM EJECTOR STROKE
30″ FLOOR TO TOP OF BOLSTER
OPERATING SPEEDS:
315″/MIN. RAPID ADVANCE
315″/MIN. LOW TONNAGE PRESSING TO 100 TON
63″/MIN. FULL TONNAGE PRESSING TO 500 TON
50″/MIN. BREAKAWAY STRIPPING
700″/MIN. RETURN AFTER BREAKAWAY
100″/MIN. BOTTOM EJECTOR (UP ACTING)

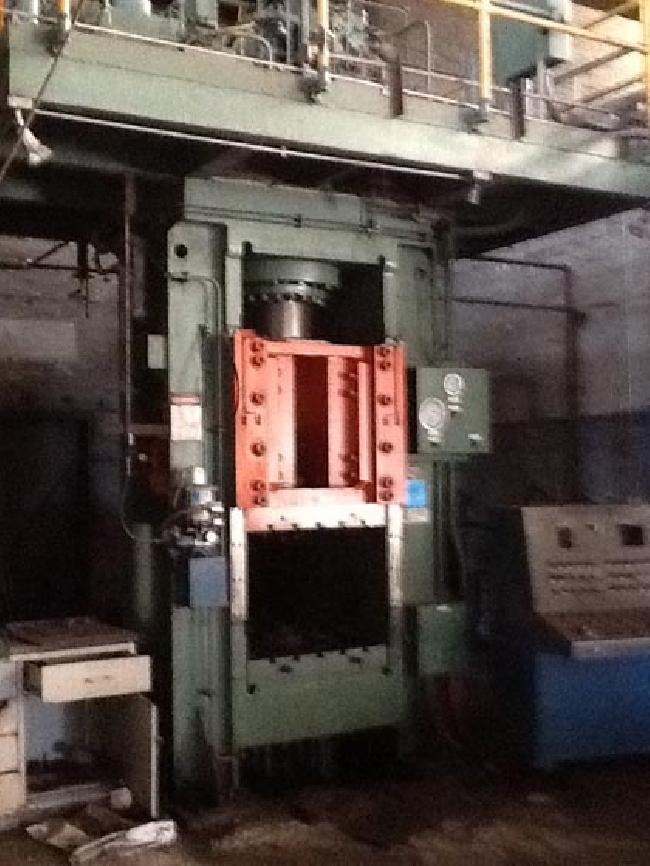

To view more information on the 500 TON ERIE HYDRAULIC PRESS, including reviews, brand information, photos, videos, and more,
