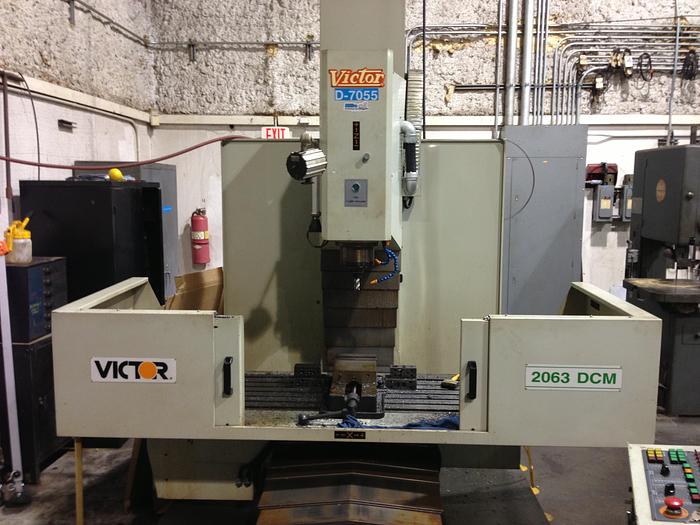

50" x 25" VICTOR CNC VERTICAL MACHINING CENTE
S/N# 2000400E
20 in x 63 in Table
Specifications:
20 in x 63 in Table Rigid Head (Digital Control Mill)
B. TRAVELS
C. TABLE
D. SPINDLE
E. CONTROL
F. SERVO MOTOR SYSTEM
G. POWER
H. AUTO TOOL CHANGER (OPTIONAL)
I. ACCURACY
J. WEIGHT & DIMENSIONS
Specifications
Manufacturer Victor
Model 2063DCM
Year 2008
Condition Used
Stock Number 1412b
Stk 1412b
X-axis 50 in
Y-axis 25 in
Z-axis 24 in
Rapid traverse (x / y / z axis) 400 / 400 / 300 in/min
Spindle nose to table surface 3 in ~ 27 in
Spindle center to column distance 25.5 in
Table size 19.7 in x 63 in
T-slot width 0.71 in
Number of t-slots 5
Max. load capacity 3,300 lb.
Quill diameter 5.9 in
Quill travel N/A
Spindle head swivel angle N/A
Spindle speeds 0 ~ 6,000 rpm
Spindle taper CT 40 (BT 40 optional)
Cnc control system Fanuc 20-FA
No. of electronic handwheels 4 Handwheels (X, Y, Z & Programmable)
Servo motor FANUC A/C brushless servo motor
Amplifier system FANUC digital servo amplifier drives
Servo motor torque (x / y / z axis) 106 in-lb. / 106 in-lb. / 106 in-lb.
Spindle motor 10 HP
Voltage 220V / 3 Phase
Tool capacity (optional) 20 (optional)
Type (optional) Carousel (optional)
Positioning ( in) 0.0004 in
Repeatability ( in) 0.0002 in
Shipping dimensions (lxwxh) 142 in x 145 in x 117 in
Net weight 7,700 lb.
Gross weight 8,140 lb.
