Specifications:

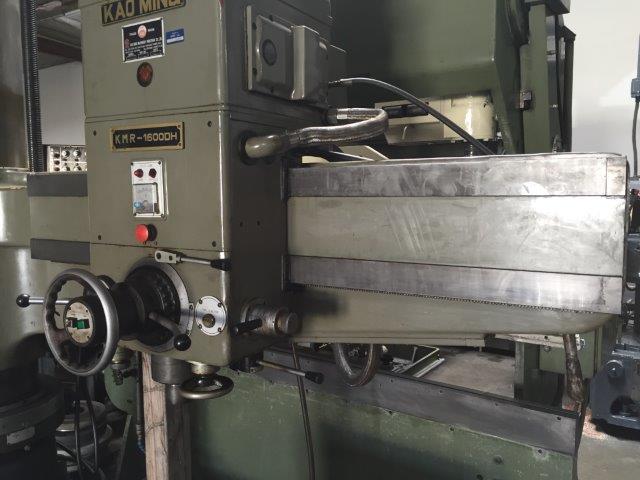

Arm Length.......................63"

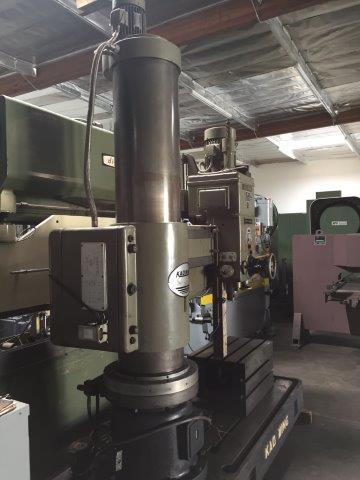

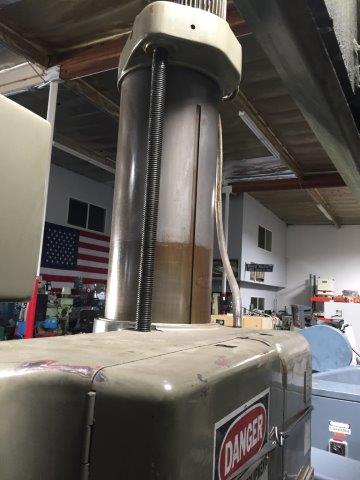

Column Diameter..................15-3/8"
Vertical Arm Travel..............32-7/8"
Horiz Arm Travel.................48-7/16"
Max Distance Spindle To Base.....61-13/16"
Spindle Speeds...................(12) 30 - 1580 RPM
Spindle Feeds....................(12) 0.0023" - 0.044" IPR
Spindle Taper....................#5 MT
Spindle Stroke...................11-3/4"
Base Working Area................64-11/16" x 36-5/8"

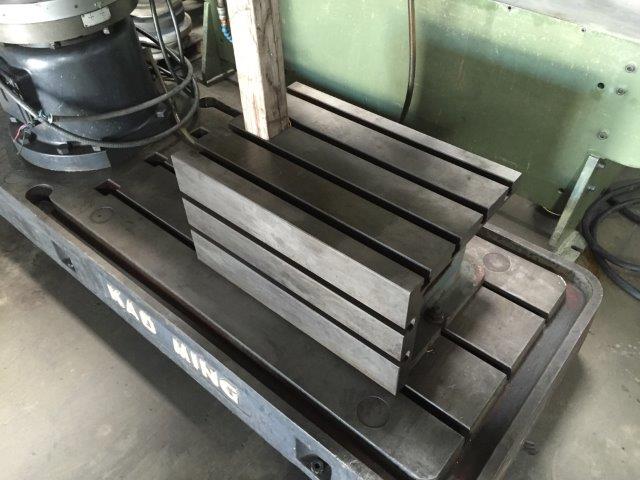

Box Table Size...................19-11/16" x 29-17/32" x 15-3/4"
Main Motor.......................7.5 HP, 220/440v, 3ph
Overall Dimensions...............103" x 42" x 122.5" H
Approx. Weight...................8800 lbs.
Equipped With:
2 HP Power Elevation Motor
3/4 HP Power Clamping Motor
Hydraulic Pre-Selection of Speeds & Feeds

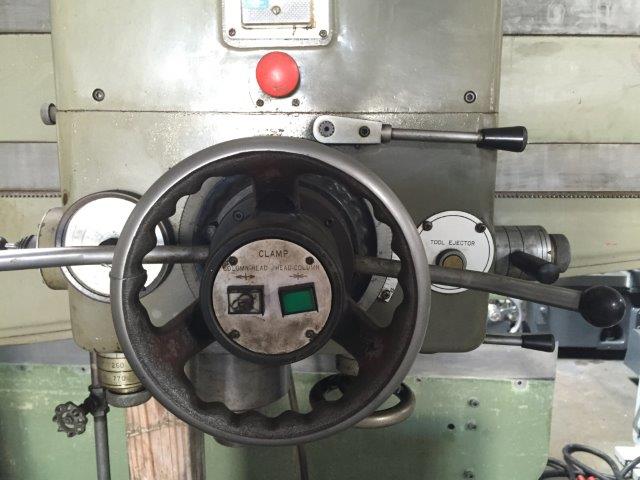

Tool Ejector
Coolant System
Work Light

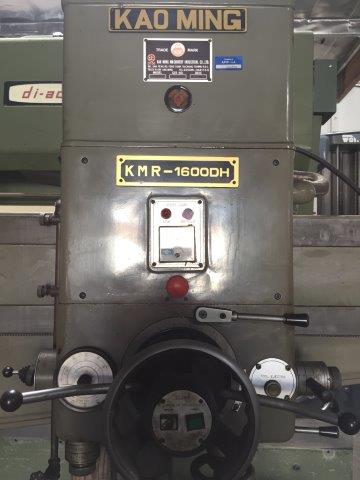

To view more information on the 5 X 15", KAO MING RADIAL DRILL MODEL KMR-1600DH, . CLAMP/ELEVATION OUR STOCK NUMBER: 4248, including reviews, brand information, photos, videos, and more,
