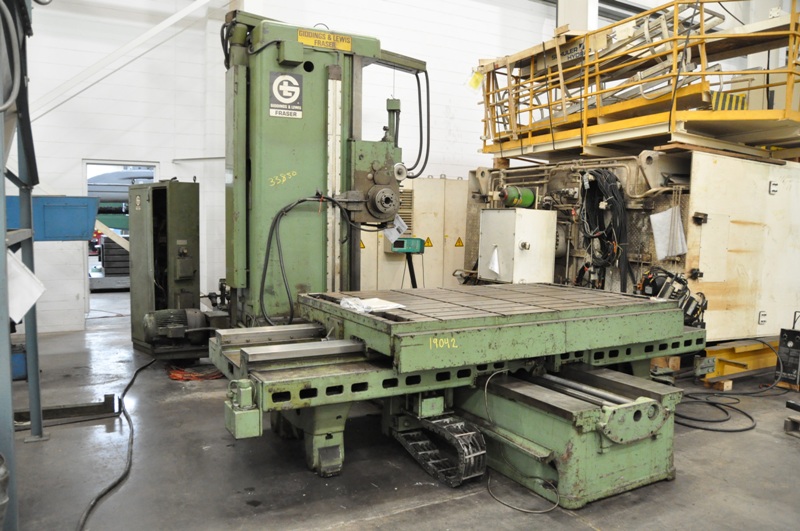

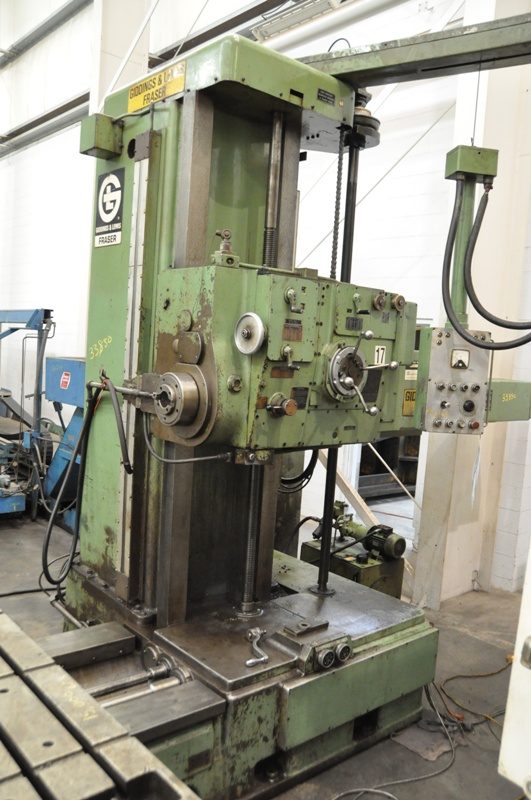

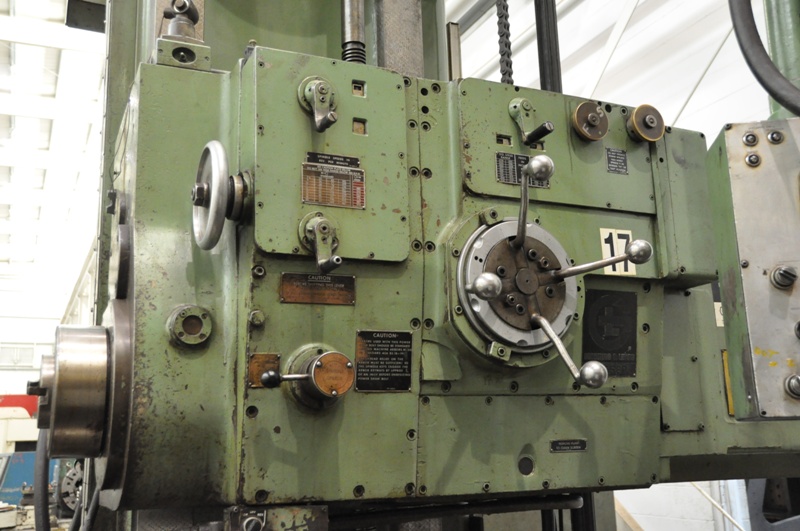

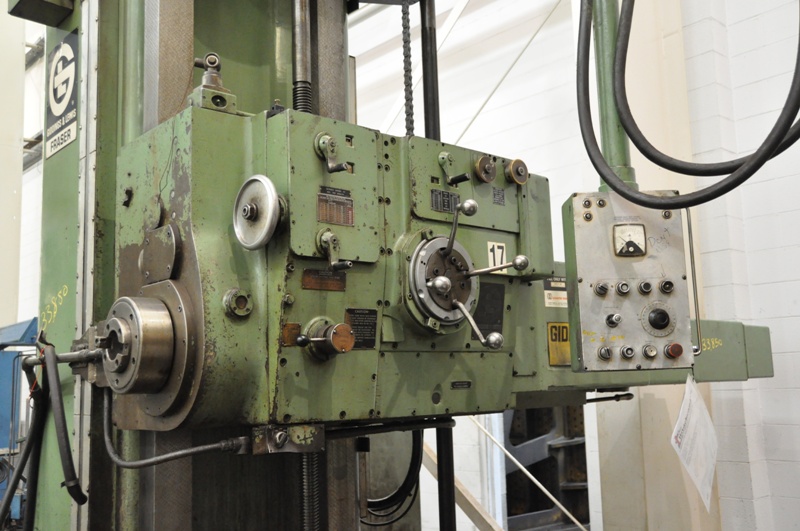

GIDDINGS & LEWIS TABLE TYPE HORIZONTAL BORING MILL

PRICE:
Loaded on Truck, Our Warehouse, York, PA     $32,500.00

HMC
Stock No. 19042

Machine Serial No. 150-910

Machine Model No.
70A-DP5-T Fraser
Estimated New Date: 1969
Made in
Scotland

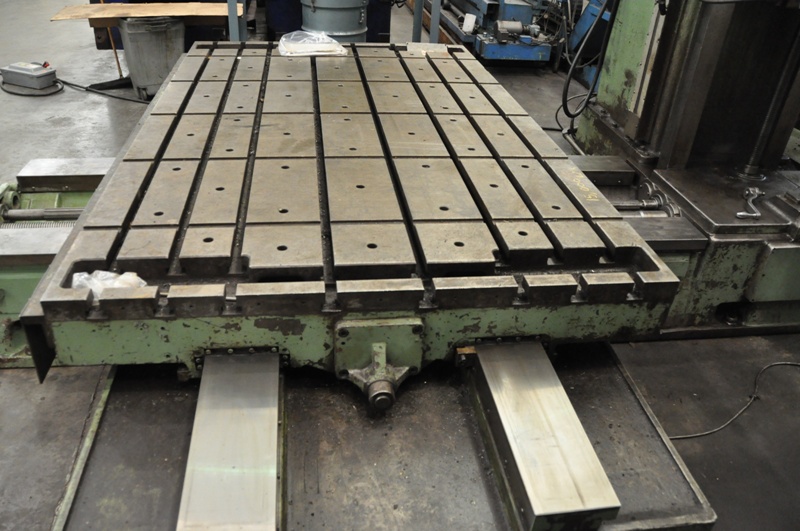

Table Size: 60in x 98in
Table Travel: 86in
Saddle
Travel: Approx. 60in
Head Vertical Travel: 60in
Spindle
Diameter: 5in
Spindle Travel: 33-1/2in
(36) Standard Spindle
Speeds: 7.5 to 467 RPM
(7) Speeds in High Range: 480 to 975
RPM
Spindle Taper: #50 National Standard with Power Draw
Bolt
Spindle Feeds: Standard Range 0.005in to 0.260in IPR
Spindle
Feeds: High Range 0.002in to 0.120in IPR
Milling Feeds: 0.04 to
120 IPM

EQUIPPED WITH:

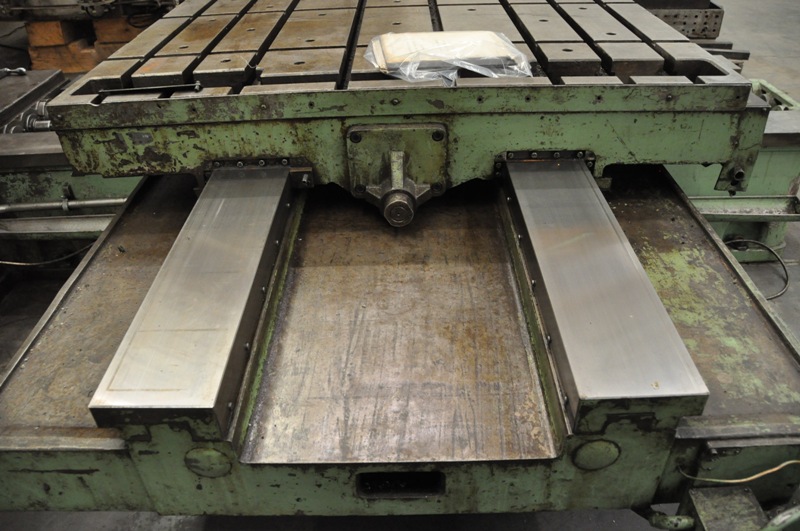

Hard Replaceable Bed & Table
Ways in Good Condition
Soft Vertical Ways in Good
Condition

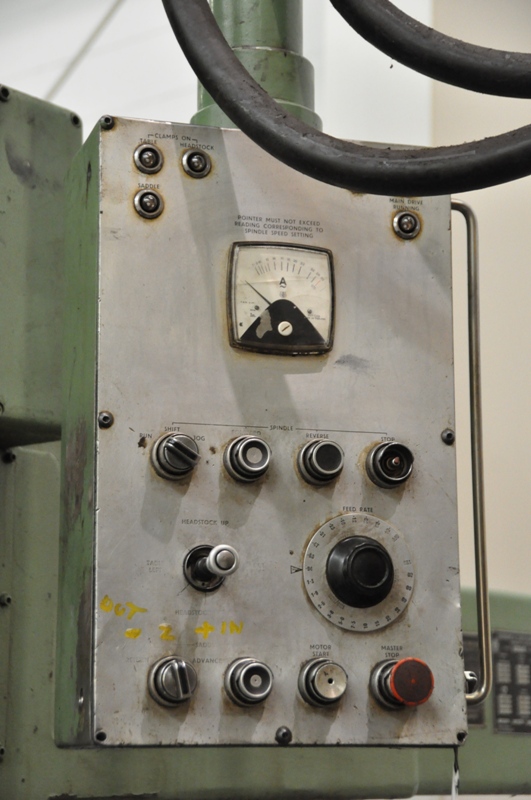

Pendant Control

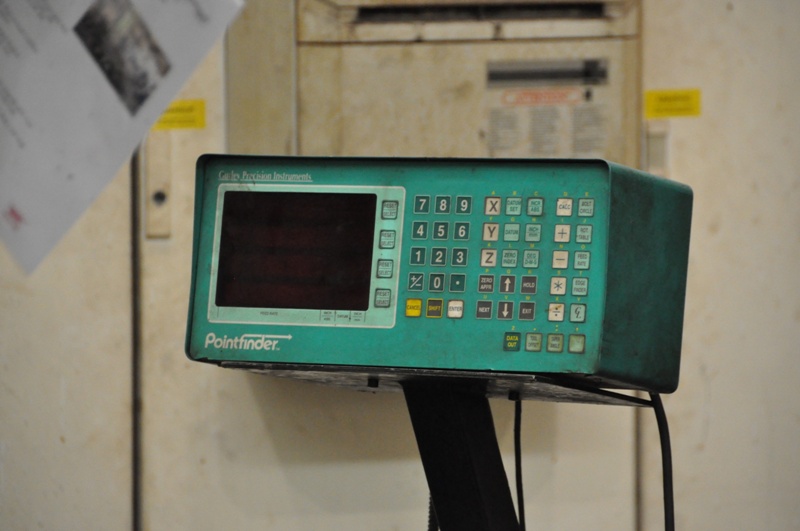

3-Axis Teledyne Gurley Pathfinder
Digital Readout
Power Rapid Traverse and Clamping Each Axis
Manual
Spindle Clamping
(1) Manual Axis Manual Crank Handle
(2)
Floor Mounted Table Outrigger Supports
18.5 KW (25 HP) Main Motor,
3 Phase, 50 Cycle, 220 Delta/380/440Y Volts
1-1/2 HP Hydraulic
Pump Motor, 3 Phase, 60 Cycle, 230/440 Volts
3/4 HP Power Tool
Draw Bar Motor
Overall Size of Machine Fully Assembled: 245in Long
x 167in Wide x 140in High

OVERALL SIZE OF COMPONENTS
DISSEMBLED FOR TRUCKING:
Machine Base, Column and Head: 245in Long
x 101in Wide x 136in High x 33,850 Lbs.
Saddle and Table: 152in
Long x 63in Wide x 38in High x ? Lbs.

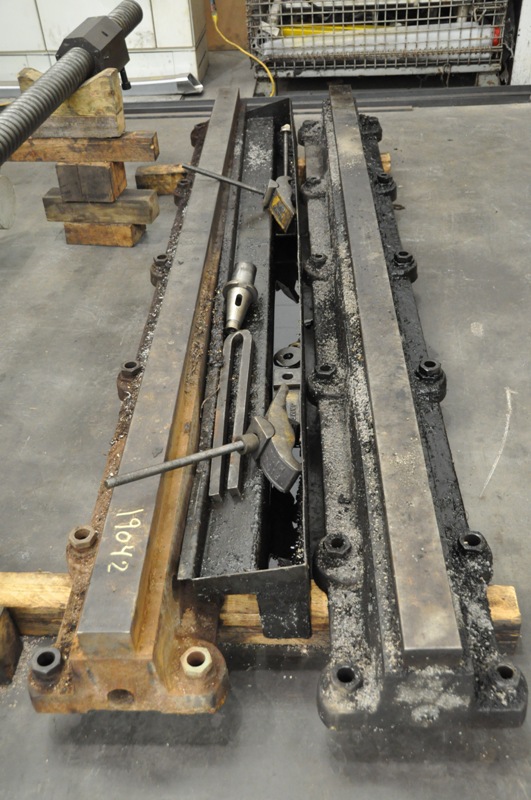

Floor Out Riggers (both):
112in Long x 29in wide x 8-3/4in High x ? Lbs.
