Description

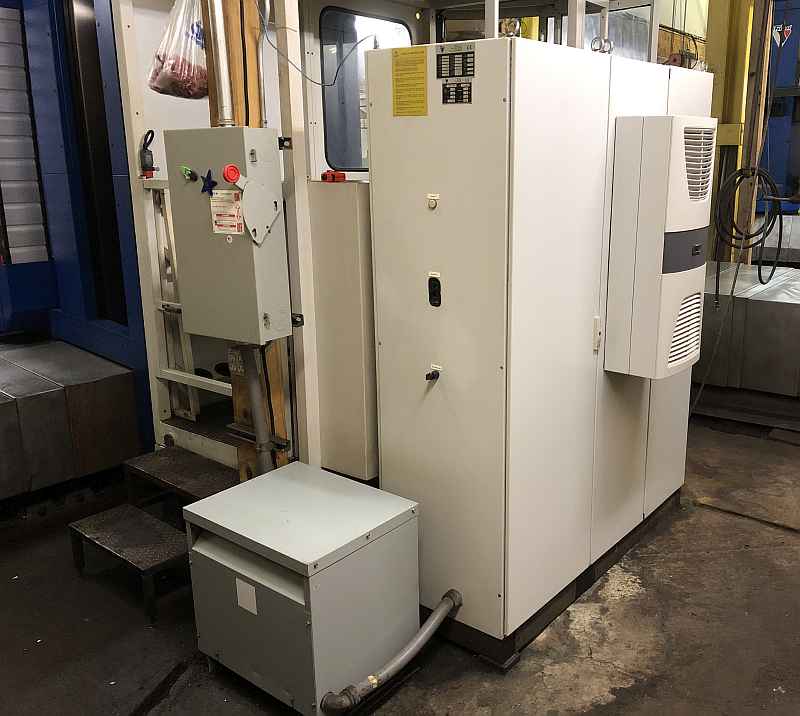

MODEL: WFT-13
NEW: 2011

SPECIFICATIONS:
SPINDLE DIAMETER........................... 130mm / 5.12"
SPINDLE TAPER.............................. CAT 50
SPINDLE SPEED RANGE........................ 10 - 3000 RPM
HEADSTOCK EXTENSION........................ 400mm X 400mm / 15.75" x 15.75"
MAIN MOTOR POWER........................... 37 Kw / 50 HP
X-AXIS TABLE CROSS TRAVEL.................. 3500mm / 137.8"
Y-AXIS HEADSTOCK VERTICAL TRAVEL........... 2500mm / 98.43"
Z-AXIS COLUMN TRAVEL....................... 1700mm / 66.93"
W-AXIS SPINDLE QUILL TRAVEL................ 730mm / 28.74"
FEED RATE IN X,Y,Z,W....................... 1 - 800mm/min / .04 - 31.5 IPM
RAPID TRAVERSE X & Y AXIS / MAX. TORQUE.... 12,000mm/min / 472.44 IPM
X & Y MAX TORQUE........................... 20 kn
RAPID TRAVERSE W & Z AXIS / MAX. TORQUE.... 10,000mm/min / 393.70 IPM
W & Z MAX TORQUE........................... 30 kn
BUILT IN CNC ROTARY TABLE (B AXIS)......... 1800mm X 2200mm / 70.87" x 86.61"
ROTARY TABLE WEIGHT CAPACITY............... 15,000 KGS / 33,069 LBS
ROTARY TABLE DRIVE / ENCODER............... TWIN SERVO / PINION / RING GEAR
ROTARY TABLE MILLING & RAPID RANGE......... 0 - 2 RPM
MACHINE DIMENSIONS:
OVERALL MACHINE HIEGHT..................... 202"
OVERALL WIDTH.............................. 245"
OVERALL DEPTH.............................. 257"
MACHINE WEIGHT............................. 90,400 lbs

FEATURES & EQUIPMENT:

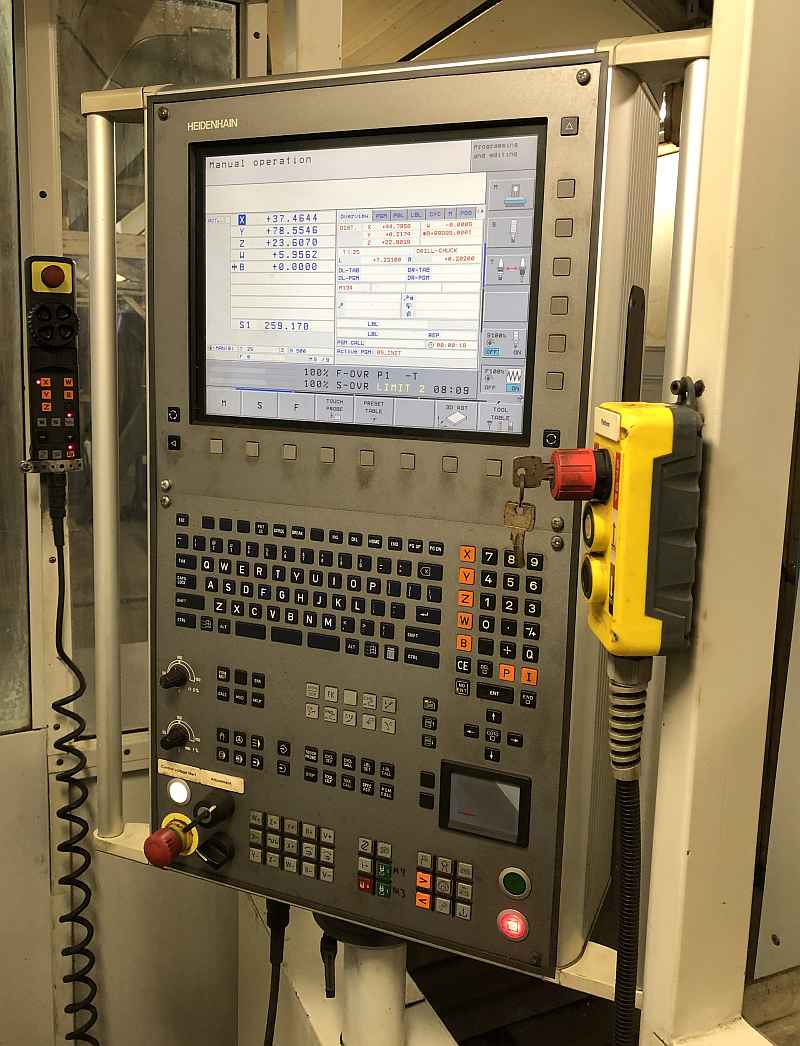

HEIDENHAIN iTNC 530 /
LINEAR HEIDENHAIN SCALES: X, Y, Z
ROTARY HEIDENHAIN SCALE FOR "B" AXIS / DOUBLE SERVO PINION DRIVE
60 POCKET AUTOMATIC TOOL CHANGER / 14 SECOND CYCLE

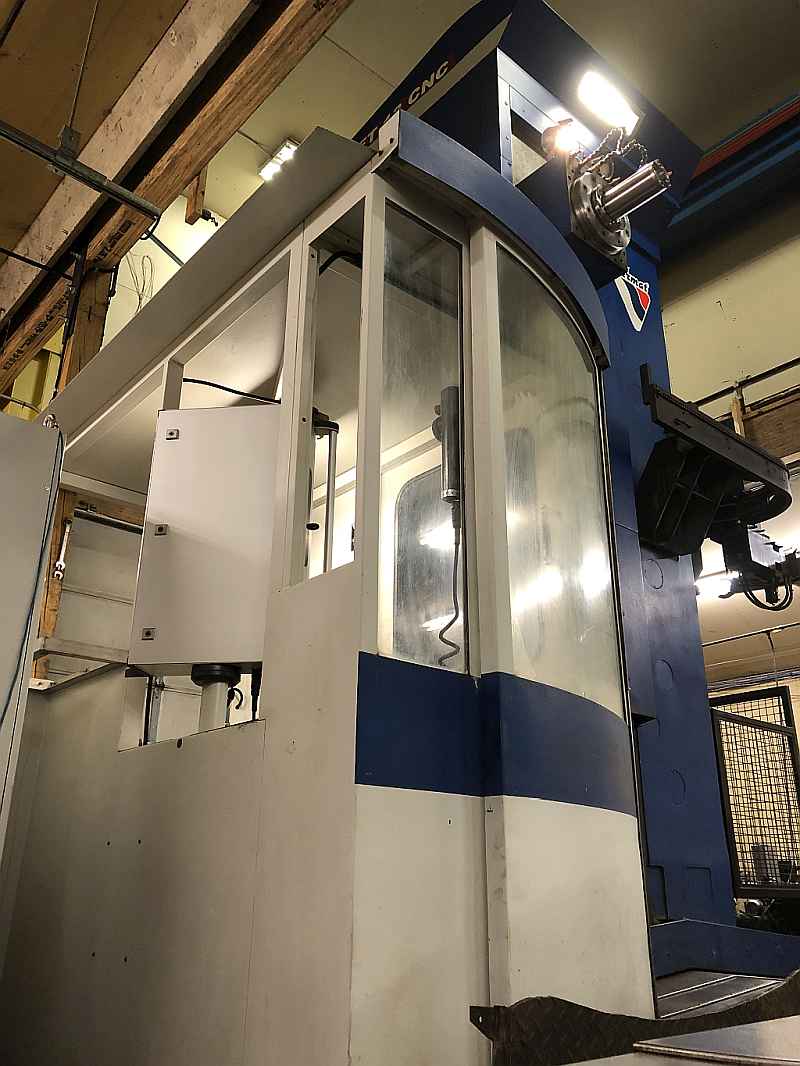

OPERATOR ELEVATING PLATFORM / INDEPENDENT FROM HEADSTOCK / VERTICAL AND
HORIZONTAL MOVEMENT
CHIP CONVEYOR

COOLANT - THRU SPINDLE 20 BAR PRESSURE
SHOWER COOLANT 4 BAR PRESSURE / 550 LITER TANK

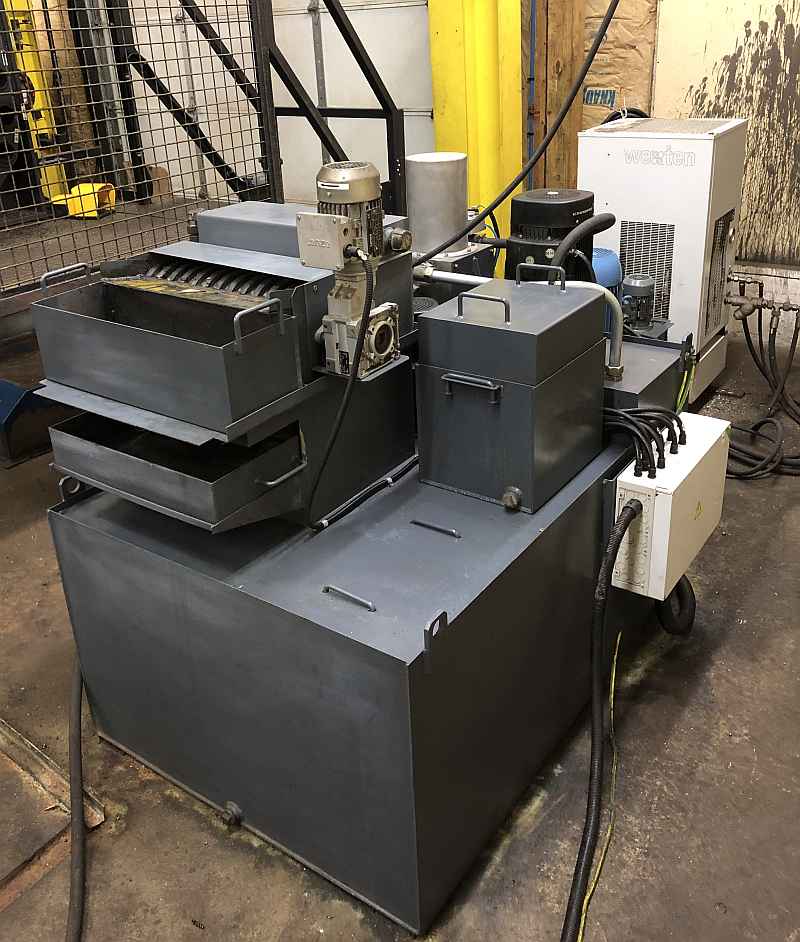

MAGNETIC CHIP SEPARATOR
HAND CONTROL / MANUAL PULSE GENERATOR

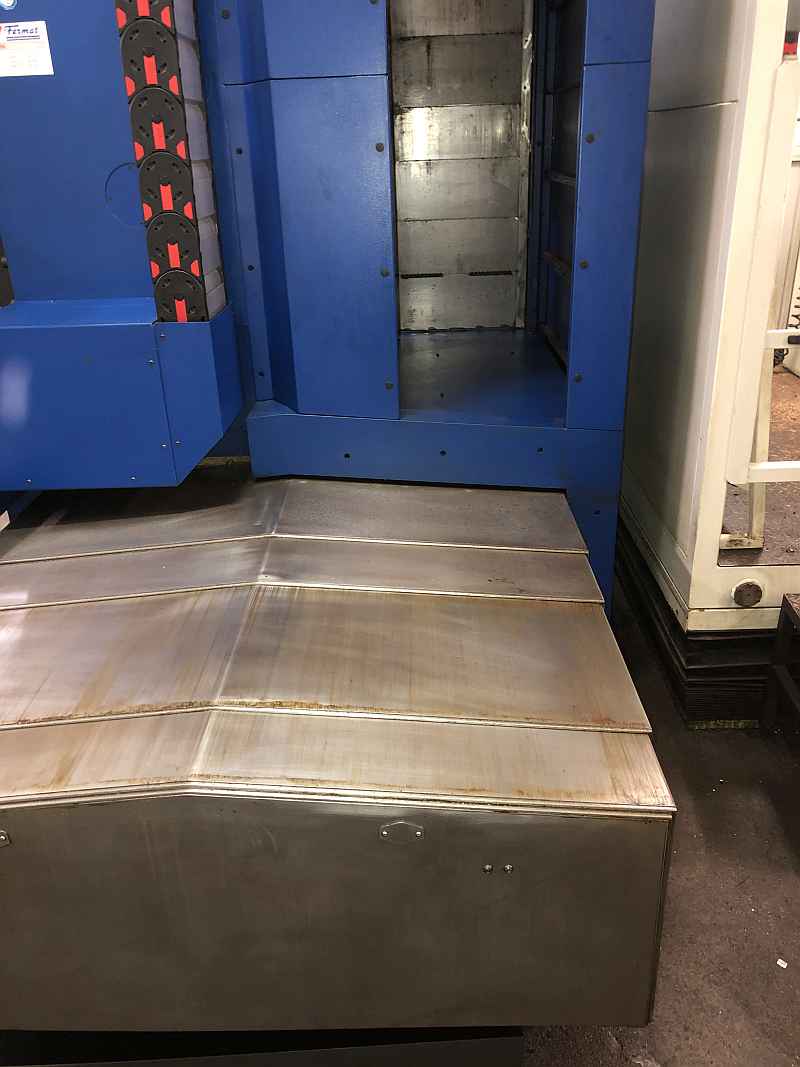

FULL SET OF STAINLESS STEEL WAY COVERS

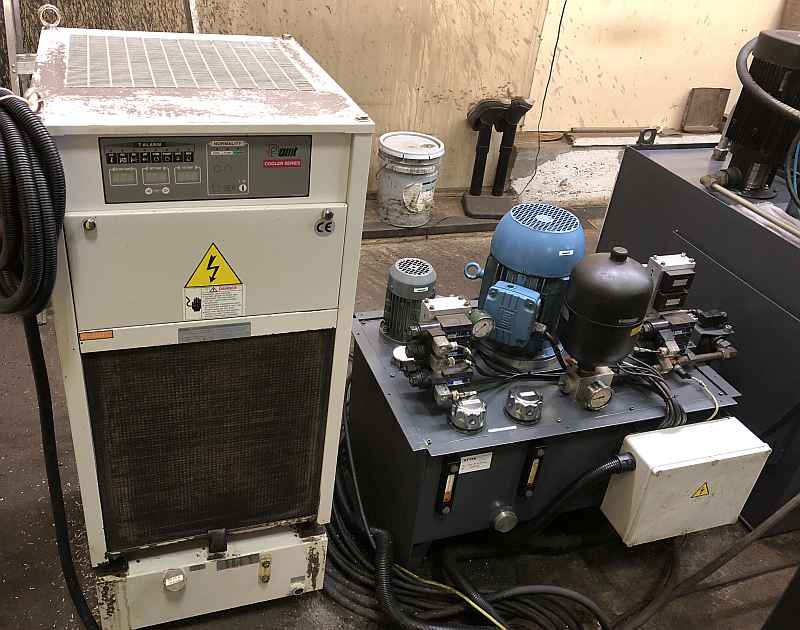

HEADSTOCK OIL CHILLER
WORK LAMPS ON HEADSTOCK

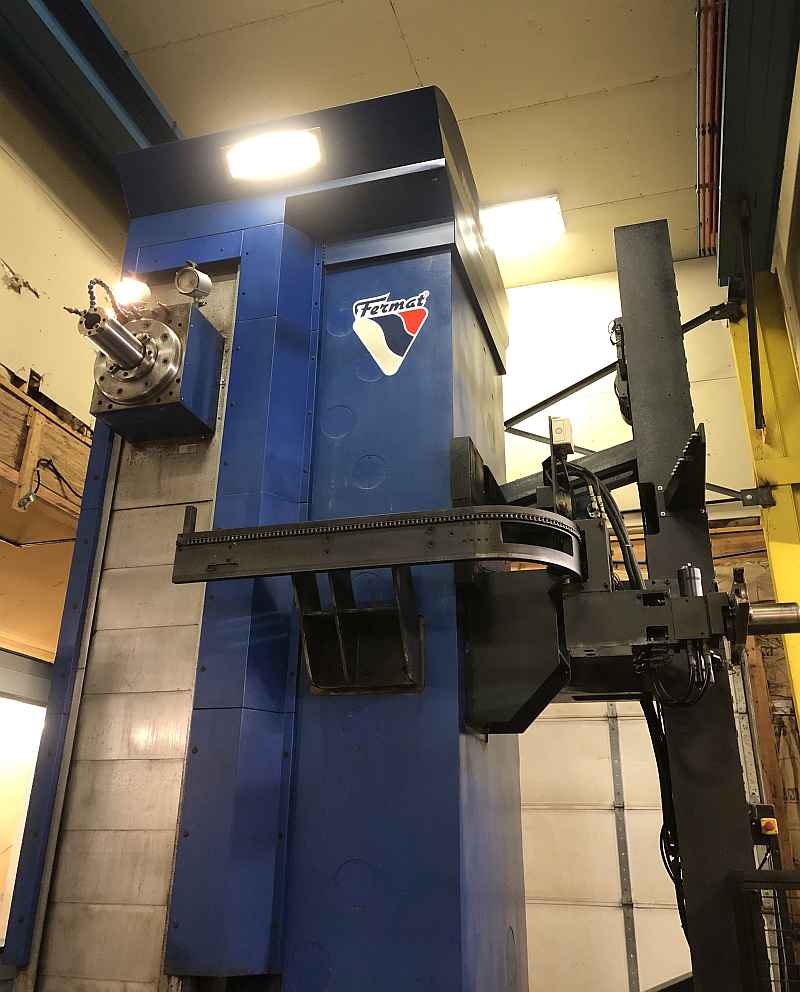

COGSDILL ZX420-TC FACING & CONTOURING HEAD

SPECIFICATIONS SUBJECT TO VERIFICATION
