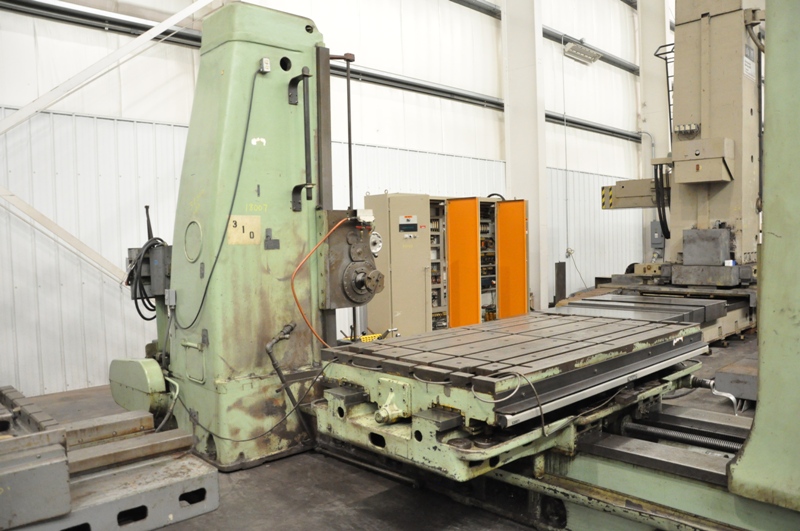

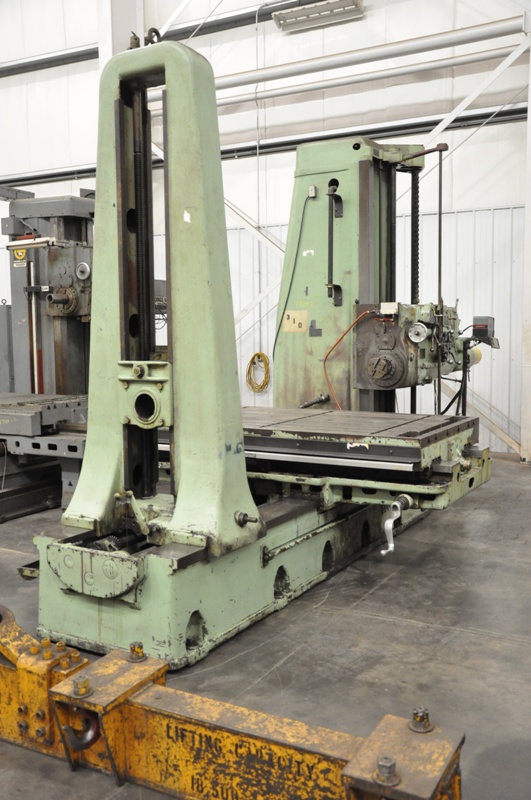

5" GIDDINGS & LEWIS HORIZONTAL BORING MILL
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $24,500.00
HMC Stock No. 18007
Machine Serial No. 5935
Machine Model No. 350 T-Table Type
New Date: 1947

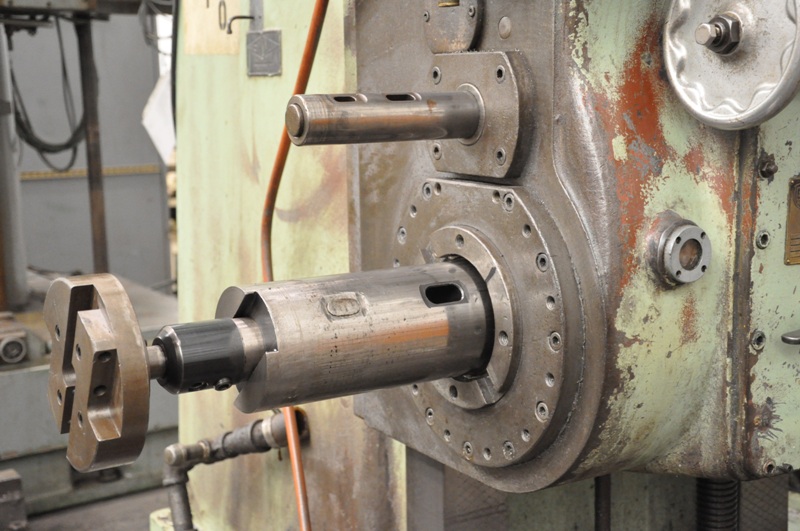

Main Spindle Diameter: 5"
Auxiliary Spindle Diameter: 2"
Main Spindle Taper: #6 Morse
Auxiliary Spindle Diameter: #4 Morse
(18) Main Spindle Feeds: 0.005" to 0.250" IPR
(18) Auxiliary Spindle Feeds: 0.001" to 0.062" IPR
(18) Table, Saddle, Vertical Head Feeds: 0.5 to 25 IPM
Travels: Table X-72", Vertical Head Y-72", Saddle 61"
Main Spindle Travel: 36", Auxiliary Spindle Travel: 9"

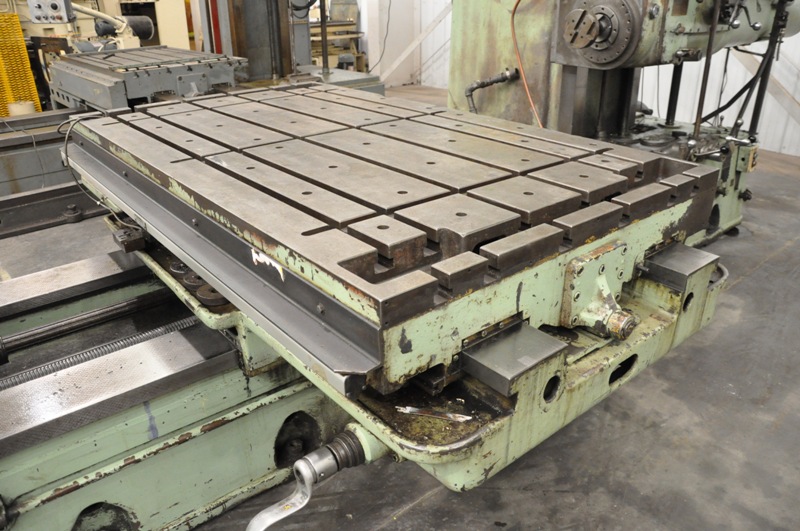

Table Size: 48" x 86"
Table Has: (6) 1" T Slots 86" Length & (3) 1" Key Slots 48" Length
(40) 1" Dia. Holes Across Top of Table
(36) Main Spindle Speeds: 8.3 to 500 RPM
(36) Auxiliary Spindle Speeds: 33 to 2000 RPM
Thru Hole in Outboard Support: 6-1/4" Max.
EQUIPPED WITH:
Soft Column, Table and Saddle Ways All in Good Condition
Power Feed and Rapid Traverse to All Axes
(1) Manual Hand Crank for All Axes
(1) Spindle Taper Keeper Wedge
AcuRite III 2-Axis Digital Readout, Inch – Metric
Manual Clamping of All Axes
External Coolant Pump – NO Tank or Pan
25 HP Main Motor
Wired for 3 Phase 60 Hz, 220 / 440 Volts, Presently 440 Volts
Overall Size: Machine can be Trucked Assembled as One Piece
104" Wide (Can be turned on the truck to be legal width.) x 254" Long x 130" High x 37,300 Lbs.

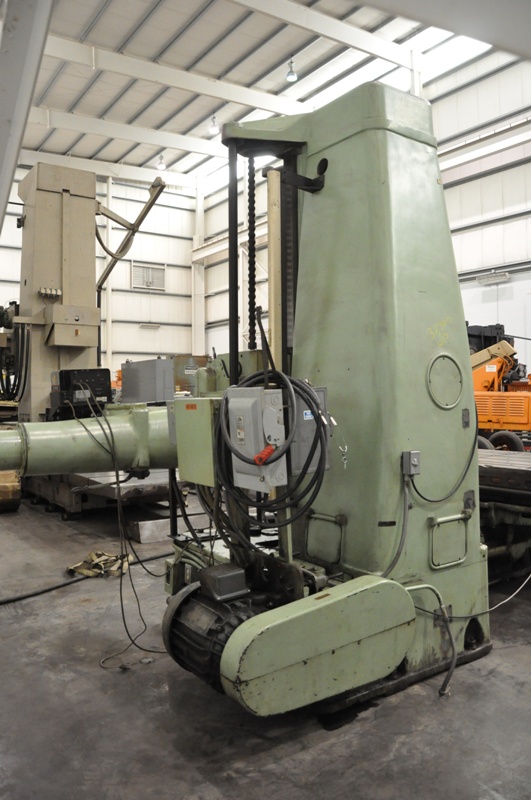

Tailstock: 42" L-R x 23" F-B x 100" High x 2,000 lbs. (Can be removed and laid over for shipping.)
