Description

Description:

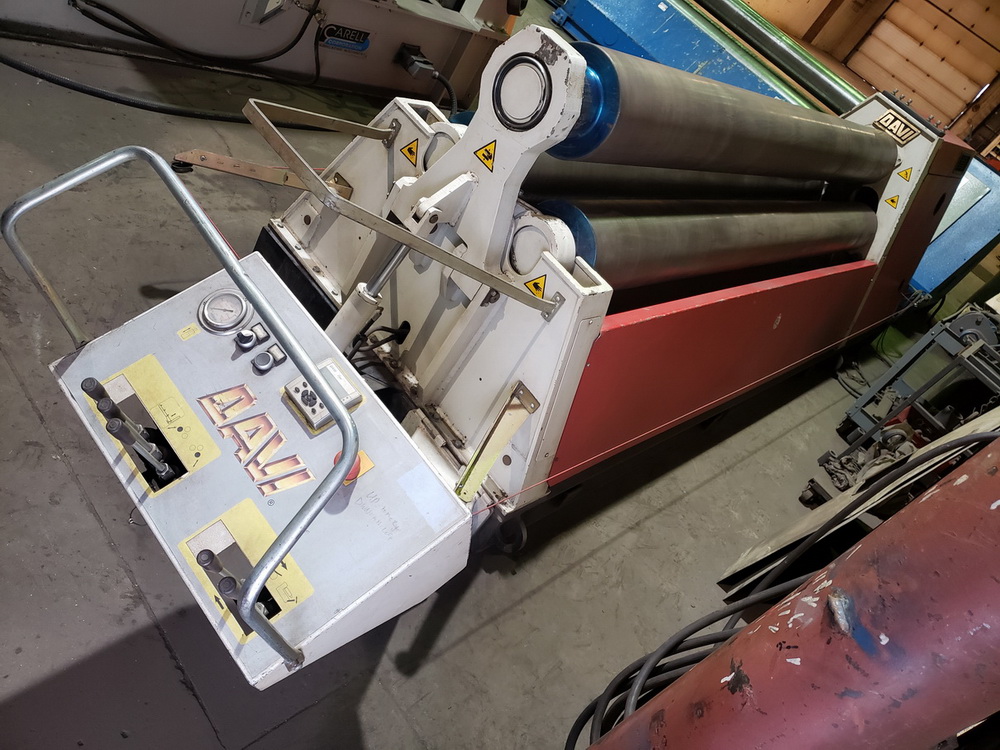

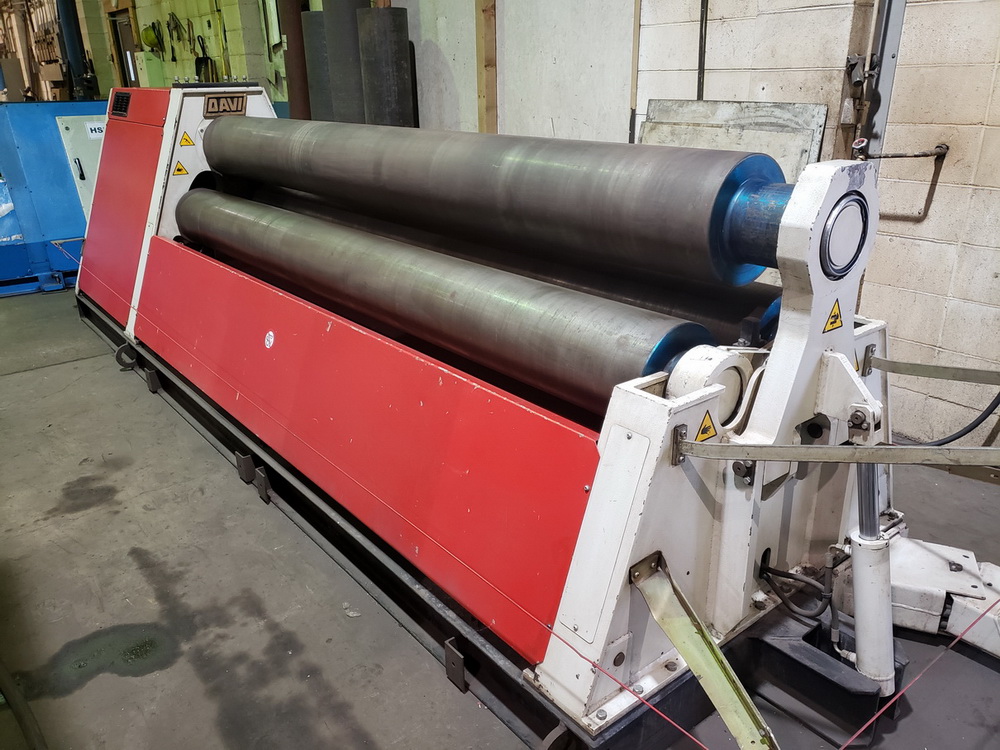

DAVI MCO3030

Age: 2005

Condition: EXCELLENT

Stock Number: 71184

RANGE

The most common design in the plate roll market, with a fixed top roll,

the two side rolls swing up for pre-bending and rolling. Costing less than

a four roll, the MCO three roll double pinch can roll plates from 15-20 mm

(5/8 3/4 inch) thickness, up to 80-100 mm (3 inch to 4 Inch), or more,

ideal for limited production volumes."

NO REMOVAL OF PLATE

The MCO uses both side rolls to prepend the plate, called "double pinch"

therefore both ends of the plate can be pre-bent without removing the

material from the machine (impossible on any single initial pinch,

asymmetric designed machine). As the side rolls raise and lower to

pre-bend the two edges, the large free access allows to form high stock

bar through the rolls, compared to other roll designs.

POWERED ROLLS

The MCO has three independently powered rolls, mounted directly to each

roll shaft to offer the markets most powerful torque transmission

available. This ensures excellent plate feeding without the risk of plate

slipping. Standard feature on other brands offer only the top roll OR only

the two side rolls powered, making thin, narrow or large diameter

cylinders hard to properly feed. Optional auxiliary motors can be offered

on request, but these are small and without much power.

ACCURATE FEEDING

All three rolls are safely braked efficiently, automatically and

hydraulically instead of using low efficiency, consumable brake linings

common to other brands.
