Max. Sheet Size (X,Y) 120" x 60"
Max. Axis Travel (X, Y, Z) 121" x 61" x 3.93"
Travel Method Stationary table, X, Y, and Z-axis movement for cutting head
Control Method X, Y, and Z (simultaneous 3-axis control)
Drive motors FANUC AC servo motors
Max. Axis Positioning Speed (X, Y) 4,724"/min. per axis (6,693"/min. 45 vector)
Max. Z-Axis Speed 4,724"/min.
Repeatability 0.0002"
Max. Material Weight 2,000 lbs.
Power Supply 200/60 V/Hz ( 10%), 3-Phasechine Control

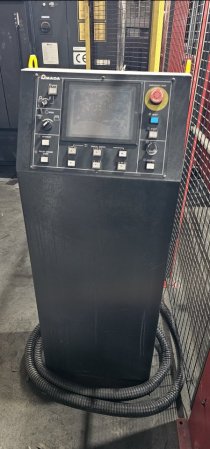

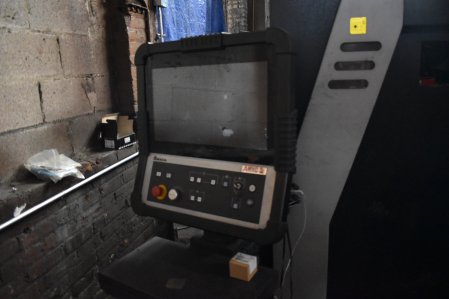

Model AMNC 3i Control
Display Touchscreen color LCD
Control Function X, Y, Z-axis, simultaneous and focus lens B-axis, and laser power control (CW, gated pulse, pierce routines etc.)
Data Storage Compact flash driveFiber Laser Resonator
Wattages Available 4KW
CW Output Power 4 KW
Resonator Style LD excited Yb fiber
Laser Wavelength 1.08 m

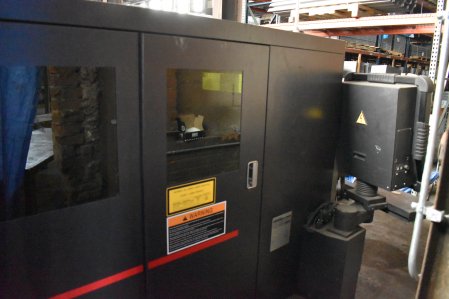

LCG AJ Series Fiber Laser
The LCG AJ Series uses approximately a third of the electricity required by the same wattage CO2 laser system. It is also three times more efficient wit the electricity it does utilize, reducing costs and providing a more environmentally-friendly laser system. LCG AJ Series does not require laser gas, mirrors, or any other items typically associated with generating a CO2 laser beam. A single fiber optic delivery cable eliminates the need for additional external mirrors. The result is significantly less operating costs and maintenance.

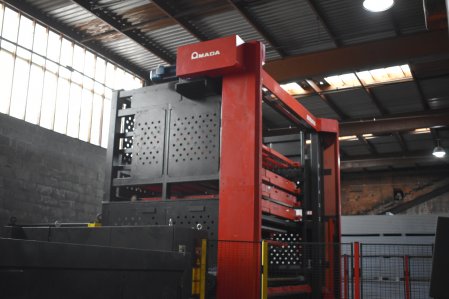

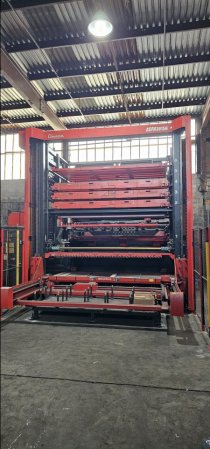

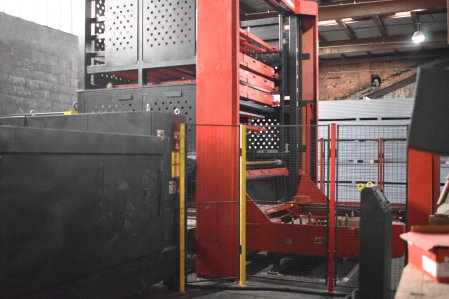

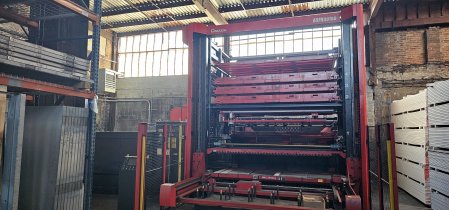

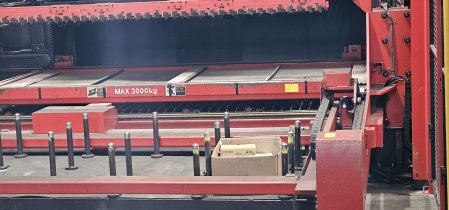

To view more information on the 4KW AMADA LCG3015AJ FIBER LASER W/ASFH3015G 6 SHELF AUTOMATED TOWER MFG:2015 OUR STOCK NUMBER: 12690, including reviews, brand information, photos, videos, and more,
