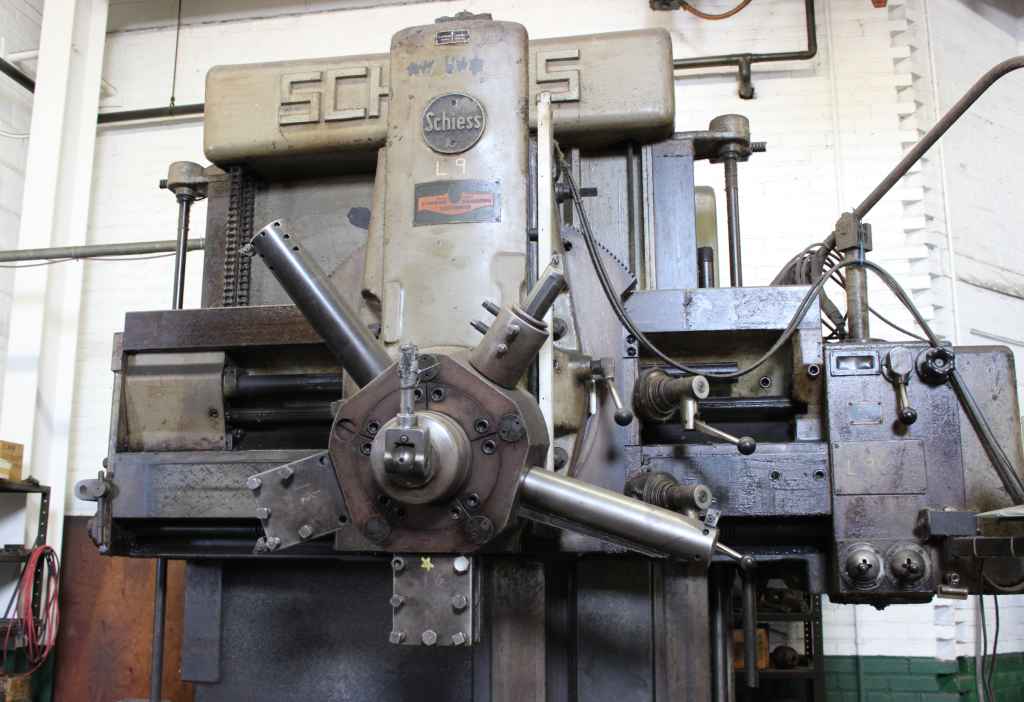

49", SCHIESS, NO. KE-125, 1953, 55" SWING, HEIGHT UNDER RAIL 43", 40 H.P. DRO OUR STOCK NUMBER: 10802

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


No. KE-125
Vertical Turret Lathes VTL
Single Turret
used
(LB)
1953
$0.00

Description

NEW: 1953
MODEL: KE 125

SPECIFICATIONS:
MAX. TURNING DIAMETER / TABLE DIAMETER......... 49"
MAX. TURNING DIAMETER WITH SIDE HEAD DOWN...... 55"
MAX. TURNING HEIGHT OVER TABLE................. 43"
MAX. VERTICAL TOOL TRAVEL FOR RAIL HEAD........ 27 1/2"
MAX. DISTANCE TABLE TO CROSS-RAIL TURRET....... 52"
MAX. HORIZONTAL TOOL TRAVEL FOR SIDE HEAD...... 25 1/2"
MAX. DIST. TABLE TO BOTTOM OF SIDE HEAD TURRET. 29 1/2"
VERTICAL TRAVEL OF CROSS-RAIL.................. 29 1/2"
MAX. LOAD ON TABLE............................. 4 TONS
TABLE SPEEDS (16).............................. 4.7 - 237 RPM
NO. OF HORIZ., VERTICAL & ANGULAR FEEDS (EACH). 12
FEEDS PER TABLE REVOLUTION..................... 0.0023 - 0.262"
RAPID TRAVERSE OF HEADS........................ 89 IPM
TRAVEL OF CROSS-RAIL........................... 15 3/4 IPM
MAIN MOTOR..................................... 40 HP
RPM OF MOTORS AT 50 CYCLES..................... 1500 RPM

EQUIPPED WITH:

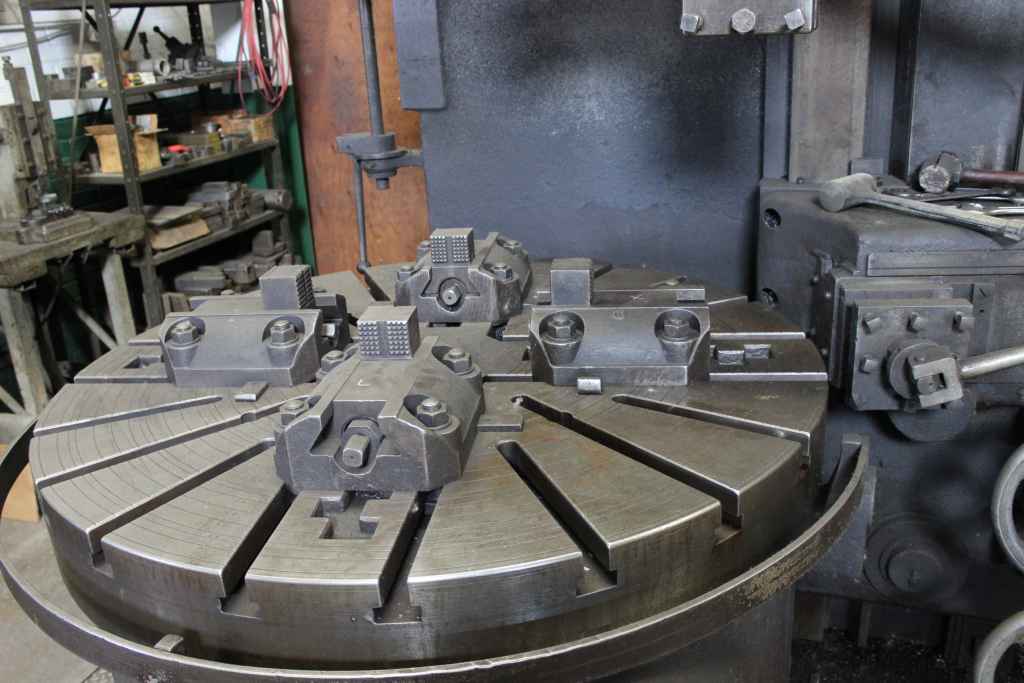

(4) HEAVY DUTY BORING MILL JAWS
(2) BOX TYPE TOOL HOLDERS
(3) BORING BARS

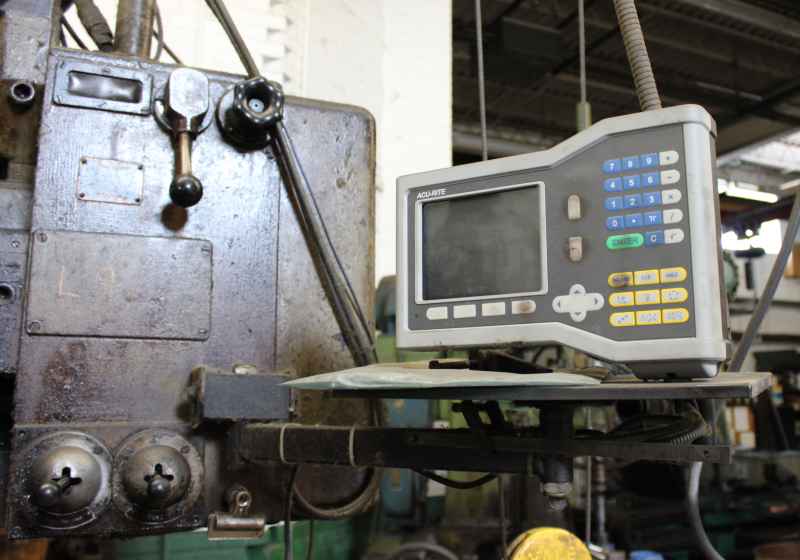

ACCURITE 2-AXIS DIGITAL READOUT SYSTEM
PENDANT CONTROL
SWIVEL TURRET SLIDE
SIDE HEAD W/ 4) POSITION TOOL BLOCK

SPECIFICATIONS SUBJECT TO VERIFICATION
