'REFERENCE NUMBER: 15100B
MODEL #: N/A
SERIAL #: N/A

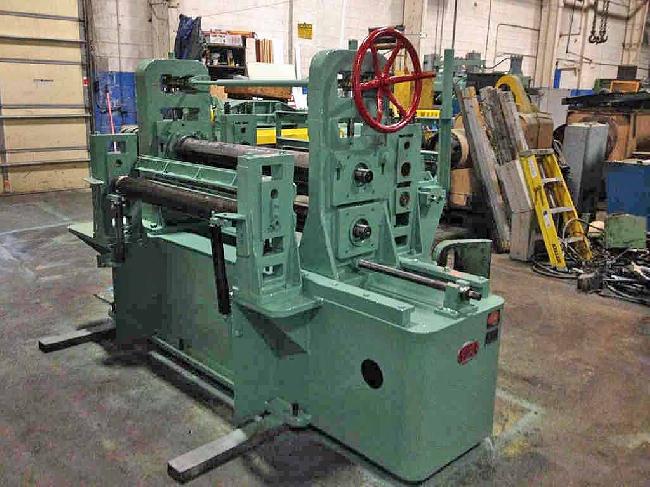

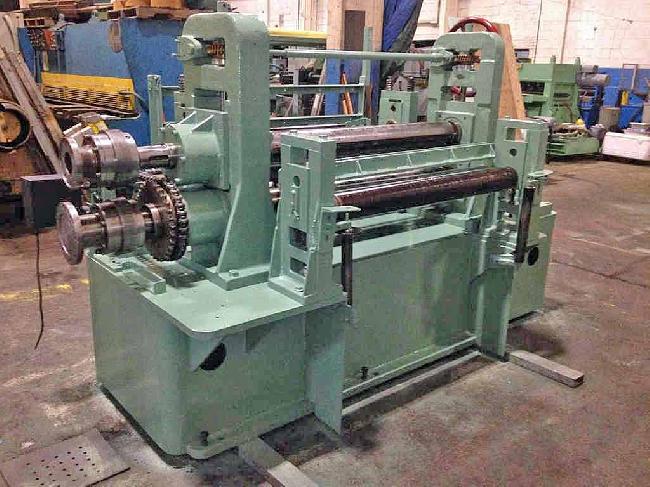

50″ FACE x 6″ DIAMETER ARBORS
ENTRY PASSLINE ROLLS
ENTRY SIDE GUIDES, MANUAL ADJUSTMENT
ENTRY DRIVEN PINCH ROLLS 9 (TOP ROLL MISSING) PASSLINE ROLL
PARALLEL ARBOR ADJUSTMENT

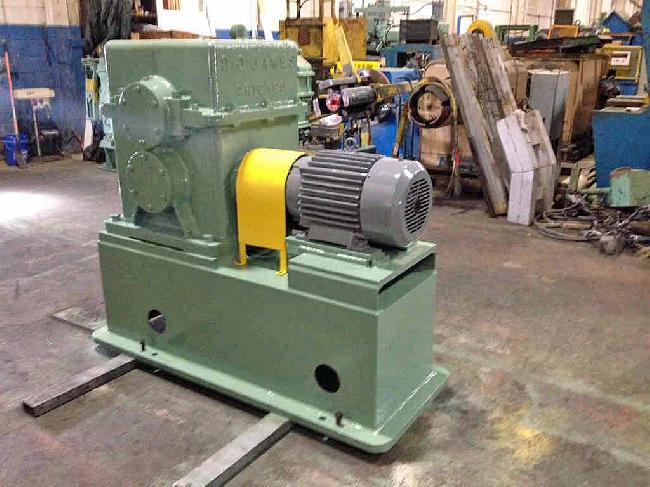

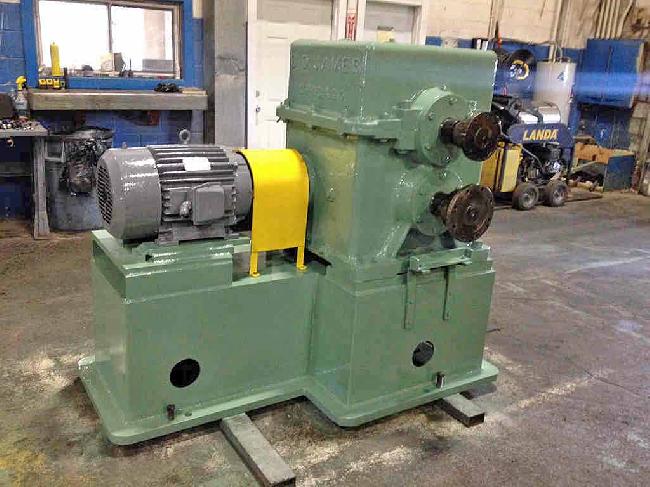

D.O. JAMES REDUCER WITH 50:1 RATIO
20 HP AC MOTOR 1170 RPM 230/460 V
LINE DIRECTION RIGHT TO LEFT
120″ LR x 66″ FB x 72″ TALL SLITTER HEAD APPROXIMATE DIMENSIONS
70″ LR X 43″ FB x 62″ TALL REDUCER APPROXIMATE DIMENSIONS
GOOD CONDITION
