48", WEBSTER BENNETT, NO. M, 59" SWING, 24" UNDER RAIL, 30 H.P., WELL EQUIPPED OUR STOCK NUMBER: 10465

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


M
Vertical Turret Lathes VTL
Single Turret
new
18000 (LB)
1967
$0.00

Feature Video

Description

MODEL: M
NEW: 1967

SPECIFICATIONS:
DIAMETER OF TABLE..................... 48"
MAXIMUM SWING......................... 59"
MAXIMUM DISTANCE UNDER CROSS RAIL..... 24"
MAXIMUM DISTANCE UNDER TURRET......... 35"
VERTICAL TRAVEL OF TURRET............. 26"
SWIVEL OF TURRET HEAD................. 35 DEGREES L OR R
TABLE SPEEDS (12)..................... 4.5 - 100 RPM
FEED RATES (12)....................... 0.005 - 0.250 IPR
DIAMETER OF TURRET HOLES.............. 3"
APPROX. WEIGHT........................ 18000 LBS
APPROX. DIMENSIONS.................... 89" X 115" X 131" TALL

EQUIPPED WITH:

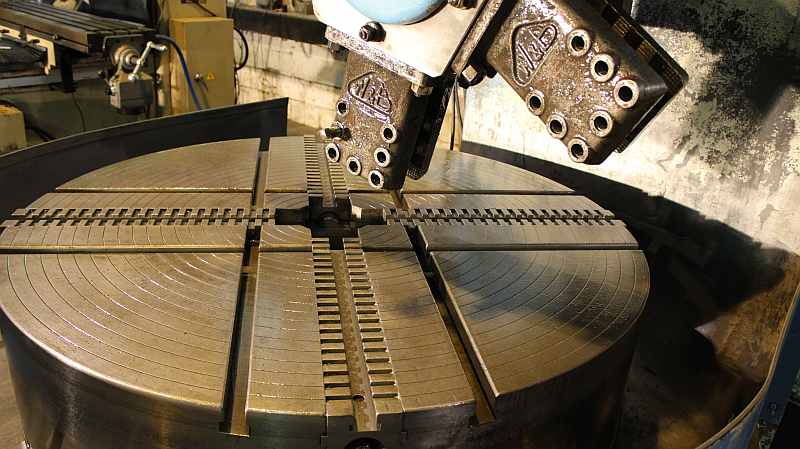

48" 4-JAW CHUCK

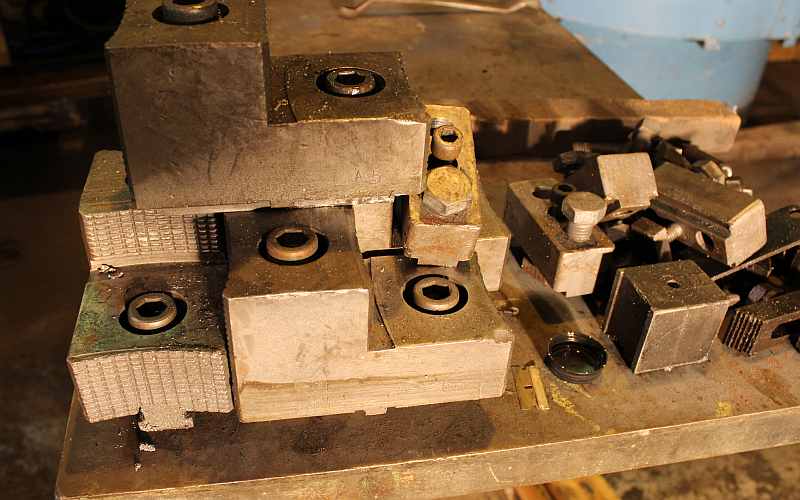

4-HEAVY DUTY JAWS
HEAVY DUTY FABRICATED CHIP GUARD

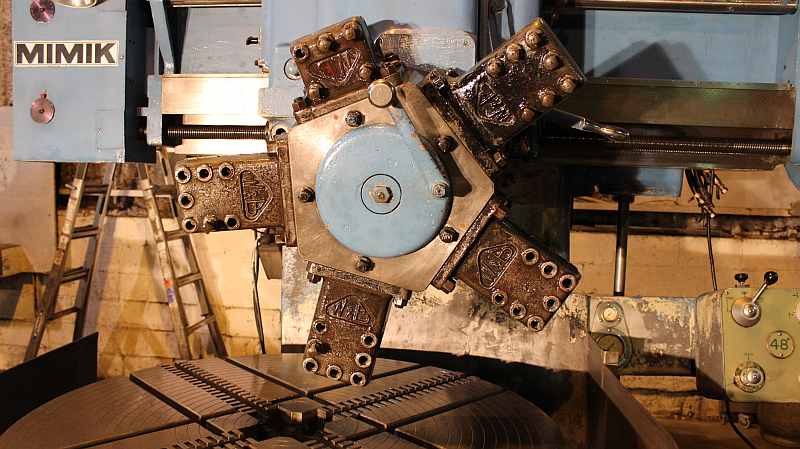

FIVE POSITION TURRET
5) BOX TYPE TOOL HOLDERS
MOTOR GUARD

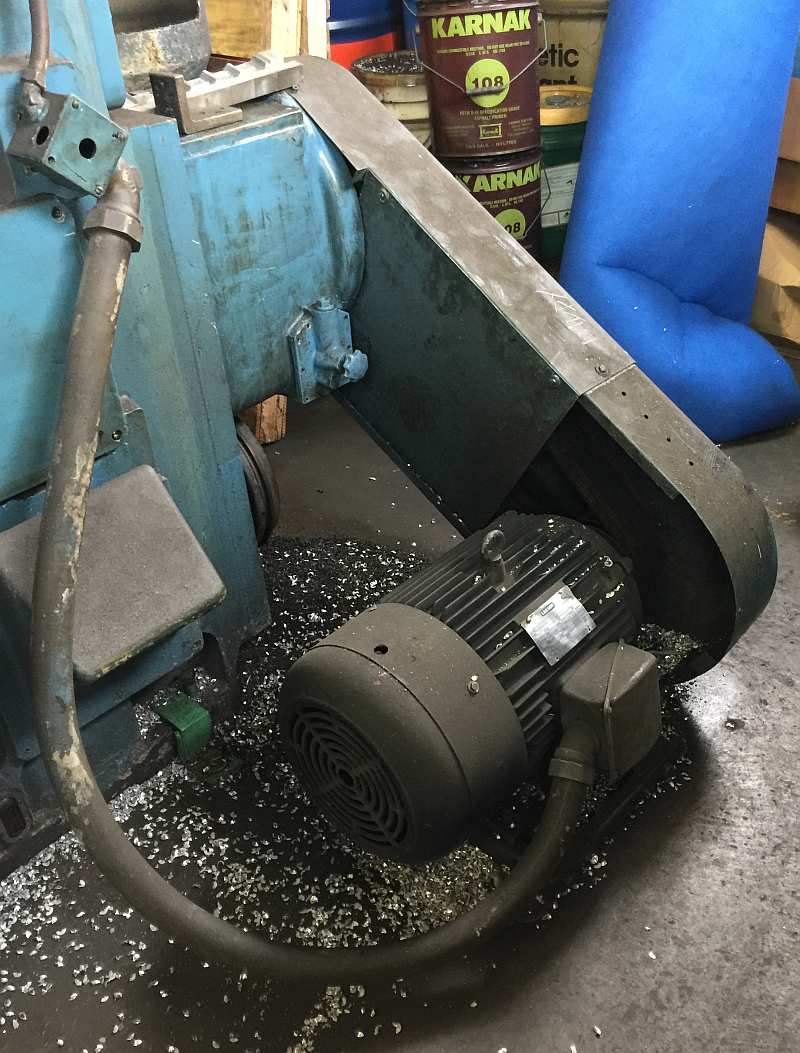

30 HORSE POWER MAIN DRIVE MOTOR

SPECIFICATIONS SUBJECT TO VERIFICATION
