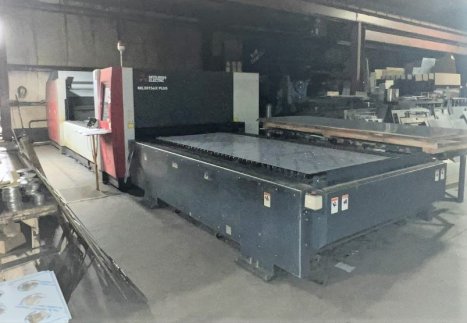

Processing Machine Specifications
Machine structure: X/Y Precision Rack & Pinion - Z=precision ball screw
Travel drive method: X-Y-Z simultaneous 3 axes (Z-axis height control is also possible)
Maximum workpiece size: 120.1 x 60.0
Table pass height: 34.6
Processing access: Automatic up/down door
Pallet changer: Provided
X-axis stroke: 122
Y-axis stroke: 61
Z-axis stroke: 5.9
Rapid travel speed (X,Y) inches per minute: 3940/5550 simultaneous
Maximum processing federate, inches per minute: 1970
Positioning precision: 0.0019/20 (X,Y), 0.0039/4 (Z)
Drive motor type: Intelligent AC servo
Maximum workpiece weight: 2050 lbs.
Control system Specifications:
CPU: 64-bit

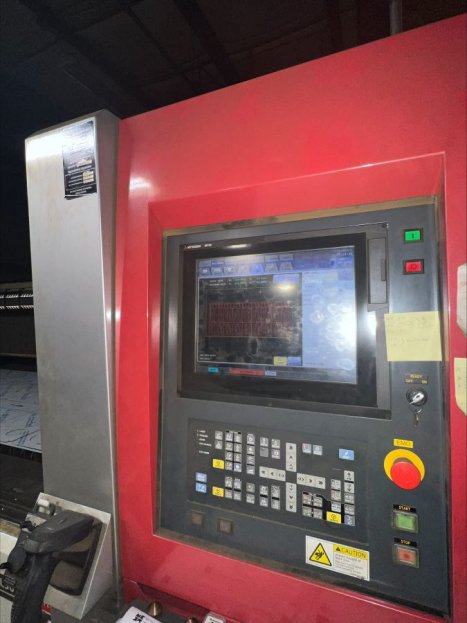

Display screen: 15" TFT color LCD touch screen
Hard disk: 20.0 GB
Generator output control: Output power, frequency, duty
Generator operation control: Beam on/off, laser gas charge, etc.
Drive system: X,Y,Z simultaneous control
Position detection system: Encoder
Minimum command input: 0.001 mm / 0.001"
Program input system: USB Computer Link, ethernet LAN
Pallet Changer Specifications:
Drive mechanism: Chain
Pallet change time (Sec.): Approximate 30
Work clamps: 2 sets on Y Axis
Pallet capacity: 2050 lbs.
Applicable machine size: 3015 (5 x 10)

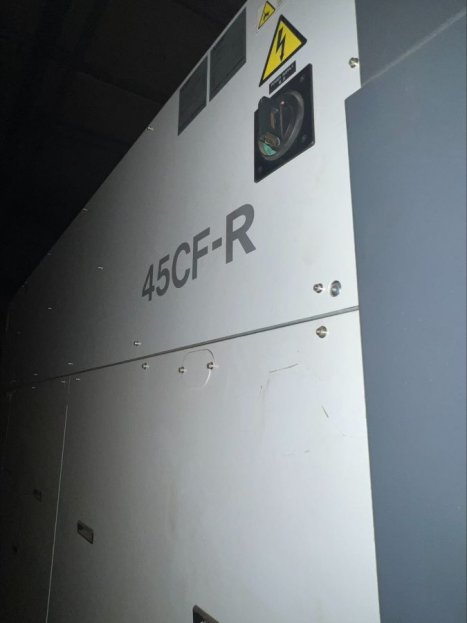

CO2 Laser specifications- 45CF-R
Excitation method: 3-axis cross flow, silent discharge
Maximum output power: 4500-watts
Rated output power: 4500-watts
Control method: Power feedback
Power stability: Less than +/- 1 % of rated power
Beam mode: Low-order
Beam outer diameter: 1.02
Beam divergence (mrad): Approximately 3.5 of less total angle
Las gas composition (CO2:CO:N2:He): 8:4:60:28
Laser gas consumption rate (liter/hour): 24 during continuous oscillation
Wave length: 10.6 microns
Frequency setting range: 10~3000 Hz
Duty range: 0~100 percent adjustable
Output power adjustable range: 0~100 percent
Equipped with:
Chiller

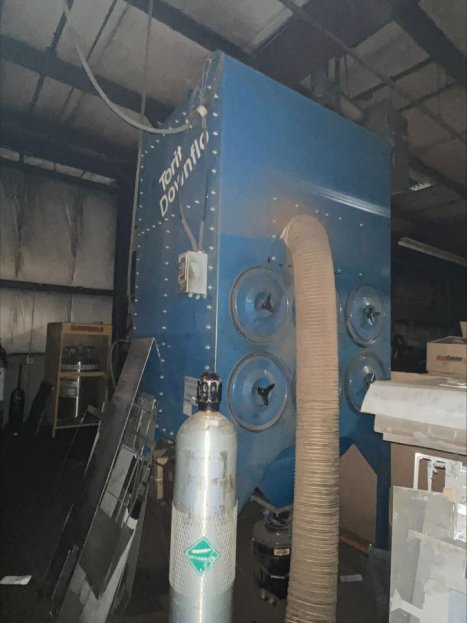

Dust Collector
