Machine Travels: X x Y x Z in (mm): 122 x 61 x 5.9 (3100 x 1550 x 150)
Workpiece Dimensions: W x D in (mm)120.1 x 60.0 (3050 x 1525)
Motion Drive System Design Helical Rack & Pinion
Processing Lens Focal Distance: in (mm)5.0/7.5/10.0 (127/190.5/254)
No. of control axes3
Machine Structure X-Y Helical Rack & Pinion, Z Precision Ball Screw
Travel Drive Method X-Y-Z Simultaneous 3-axes (Z axis height control is also
possible)
Table Pass Height: in (mm)34.6 (880)
Processing Access Power Operated Door
Pallet Changer Provided
Rapid travel speed [X,Y]: in/min. (m/min.)3940 (100) single axis, 5550 (141)
simultaneous
Max. processing feedrate: in/min. (m/min.)1970 (50)
Positioning Precision: in (mm)0.0019/20 (0.05/500) X, Y axis, 0.0039/4
(0.01/100) Z-axis
Repeatable accuracy [X,Y]: in (mm)+/-0.00039 (+/-0.01)
Drive Motor Type Intelligent AC Servo
Max. workpiece weight: lb (kg)2050 (930)
Installation Dimensions (W x D): in (mm)566.9 x 344.4 (14,400 x 8748)
Machine Unit Dimensions (W x D x H): in (mm)428.6 x 127.8 x 93.7 (10,886 x
3246 x 2380)
Machine System Weight: lb (kg)28,090 (12,740)
Floor Space Req. sq. ft. (m2)1356 (126)

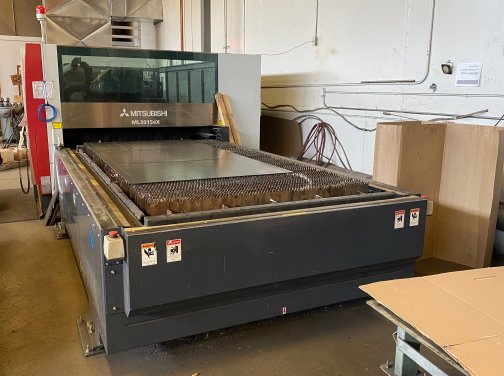

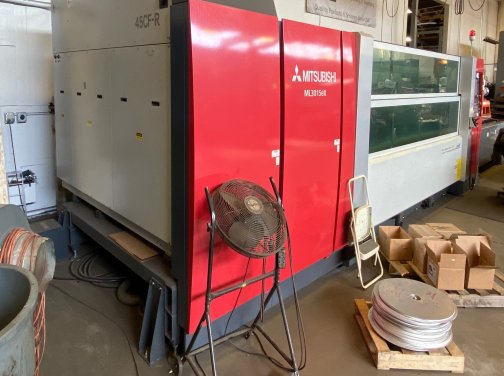

To view more information on the 4500 WATT MITSUBISHI ML3015 EX, ML45CF-R CO2,MFG:2015 OUR STOCK NUMBER: 11753, including reviews, brand information, photos, videos, and more,
